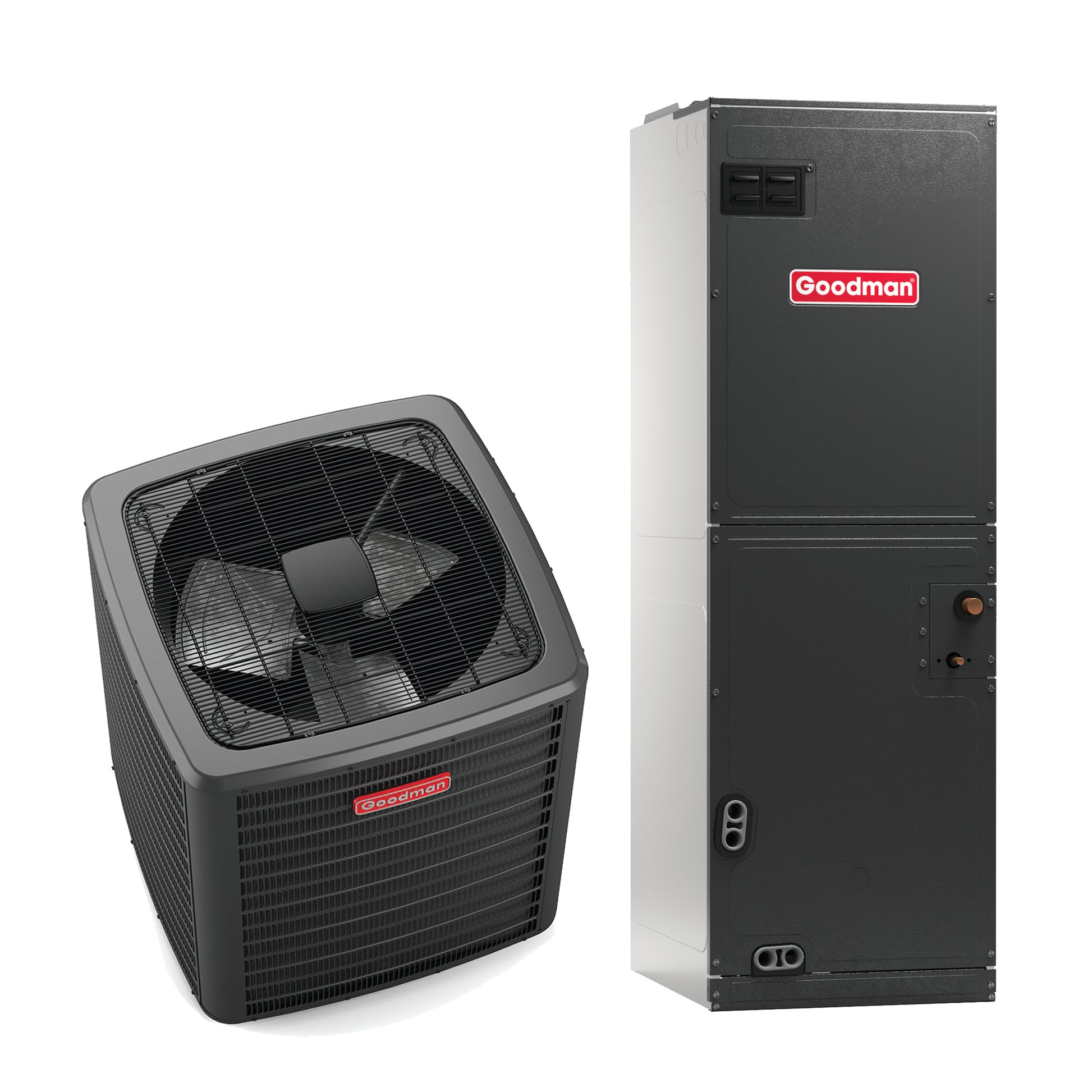

Goodman Multi-Family Series 3 Ton 15.2 SEER2 R-32 Heat Pump System (Scroll Compressor)
Goodman Multi-Family Series 3 Ton 15.2 SEER2 R-32 Heat Pump System (Scroll Compressor)
Model: GLZS4MA3610 - AMST42CU1300
Regular price
$4,955.00
Sale price
$4,955.00
Customize to check lowest price
In Stock
Couldn't load pickup availability
110% Price Match Guarantee
The Goodman Multi-Family Series GLZS4M Heat Pump Condenser is available now in very limited quantities! This unit will only match with other Goodman R-32 equipment.
Standard Features:
- High-efficiency scroll compressor
- SmartShift technology to ensure quiet reliable defrost
- Enhanced aluminum fin coil with 5 mm diameter copper tubes in 1.5- to 3.5-ton
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15 feet of tubing length
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-32 refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
- Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
- AHRI certified; ETL listed
- Rigid SmartFrame cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce con- densation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access

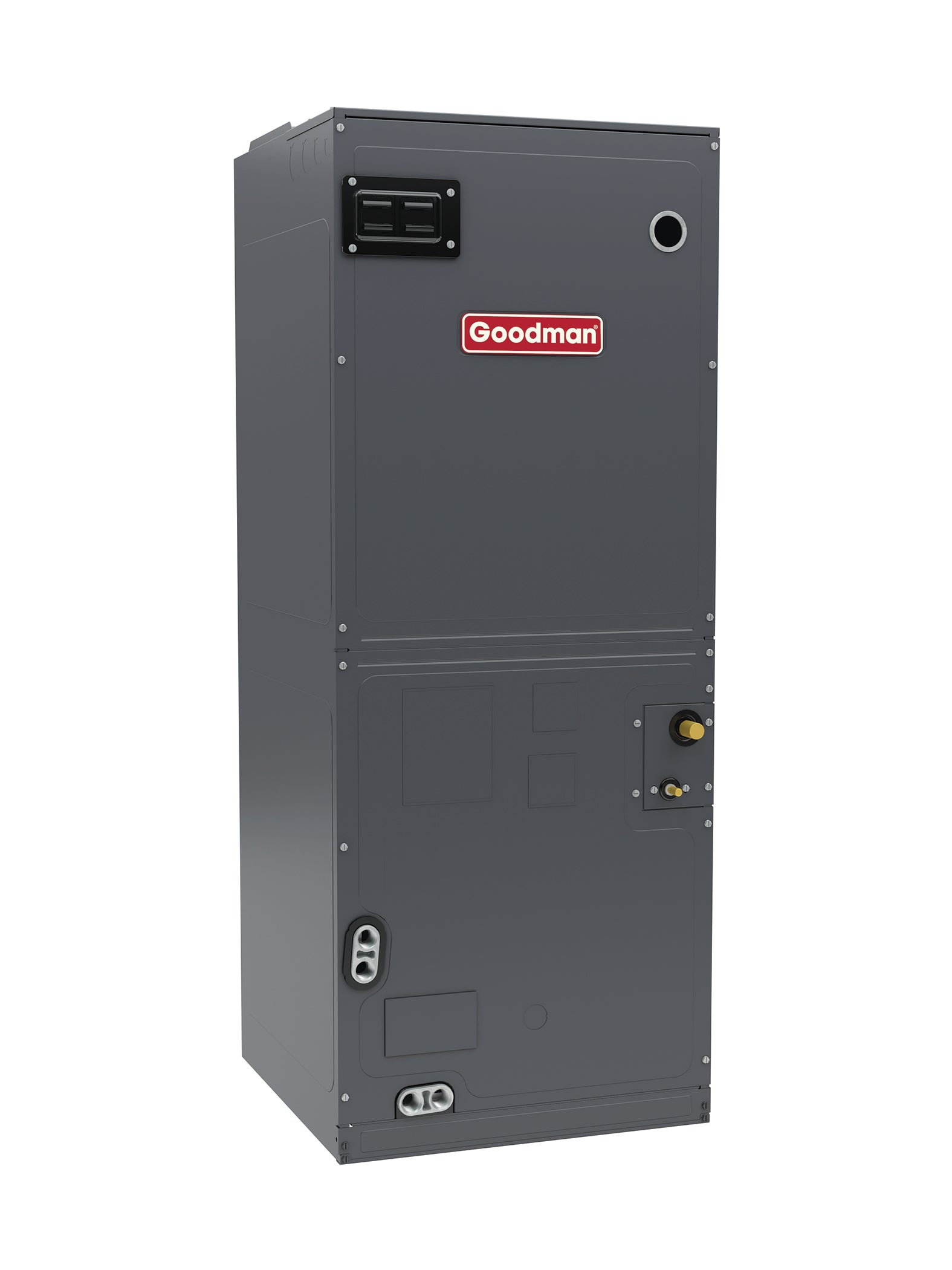

The Goodman AMST Air Handler is now available! This unit is compatible with R-32 units.
Standard Features:
| Model Number (s) | GLZS4MA3610 - AMST42CU1300 |
| Brand | Goodman |
| Type | Air Conditioning |
| Ton | 3.0 Ton |
| SEER | 15.2 |
| Cooling Btu | 36,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 74 |
| Refrigerant Type | R-32 |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 35 11/16 |
| Outdoor Unit Width (Inches) | 35 1/2 |
| Outdoor Unit Depth (Inches) | 35 1/2 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 215217931 |
| UPC # | 633190208934 |
| Heating Btu | 36,000 |
| Blower | Multi-Speed |
| Maximum CFM | 1,255 |
| Heating Stage(s) | 1 |
| Indoor Unit Depth (Inches) | 21 |
| Indoor Unit Width (Inches) | 17 1/2 |
| Indoor Unit Height (Inches) | 53 4/9 |
| HSPF | 7.5 |
| Outdoor Unit Width (Inches) | 35 1/2 |
| Outdoor Unit Depth (Inches) | 35 1/2 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 215217931 |
| UPC # | 633190208934 |
| Heating Btu | 36,000 |
| Blower | Multi-Speed |
| Maximum CFM | 1,255 |
| Heating Stage(s) | 1 |
| Indoor Unit Depth (Inches) | 21 |
| Indoor Unit Width (Inches) | 17 1/2 |
| Indoor Unit Height (Inches) | 53 4/9 |
| HSPF | 7.5 |
