The Mitsubishi SUZ Series Mini Split Heat Pump is a single-zone outdoor unit compatible with five different indoor unit types in a 1-to-1 configuration. This high-efficiency heat pump is compatible with MLZ EZ FIT Ceiling Cassettes, SLZ Four-way Ceiling Cassettes, SVZ Multi-position Air Handlers, SEZ Low Static Horizontal-ducted Indoor Units, and PEAD Mid Static Horizontal-ducted Indoor Units.

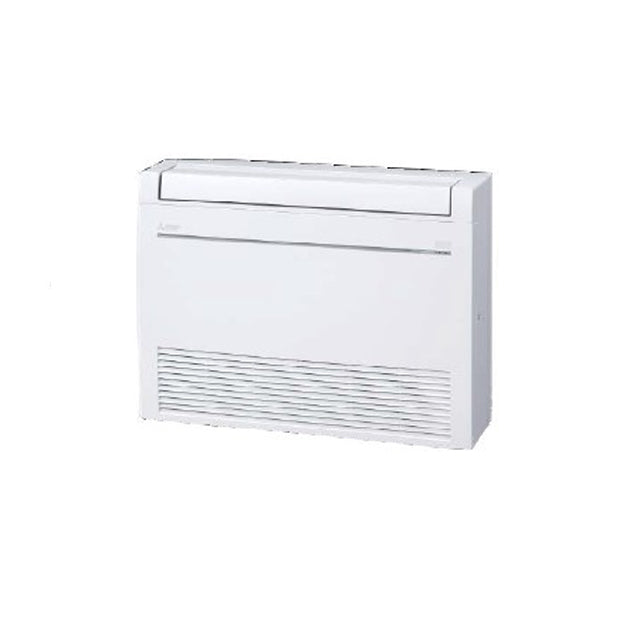

The Mitsubishi MFZ Series floor mounted air handlers offer quality comfort without compromising on aesthetics. The removable base allows the indoor unit to be recessed into the wall during installation, significantly reducing the depth from 215 mm to 145 mm to create a seamless look without sacrificing performance. Paired with its capacity to pass piping and electrical connections through the floor, the MFZ Series versatility accommodates a variety of installation patterns and requirements that make it ideal for a range of modern interior and heritage-listed properties.

Standard Features:

• Econo Cool: Temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort.
• Floor front panel access to the filter for ease of cleaning
• Mounts on floor or 5” above floor
• Multi-flow Vane for faster heating
• Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
• Multiple fan speed options: Low, Medium, High, Powerful, Auto
• Nano Platinum Filter: This filter has a large capture area and incorporates nanometer-sized platinum-ceramic particles and is designed to reduce the presence of certain nonliving particles, while deodorizing the circulating air.
• Perfect for difficult areas that may be smaller or don’t have usable space on the walls
• Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Unit can be recessed mounted into wall
• Up and down swing-mode: An indoor unit with this capability can move air up and down throughout the room like an oscillating fan using the horizontal vanes.
• Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more.
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• High-performance grooved piping: High-performance grooved piping for increased heat exchange efficiency
• Hot-Start Technology: Hot-Start Technology ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during start-up.
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Joint Lap DC Motor: Innovative Joint Lap DC Motor leads to high efficiency and reliability
• Outdoor unit directed power: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
• Pulse Amplitude Modulation technology: Pulse Amplitude Modulation technology enhances energy efficiency by adjusting the power supply to optimize compressor performance, ensuring precise capacity control and reduced energy consumption.
• Quiet operation: Quiet operation units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Single-zone: One outdoor unit connects to one indoor unit to control the comfort in a single space.

***Thermostat required for operation - Sold Separately***
***MHK2 is the Recommended Thermostat***
