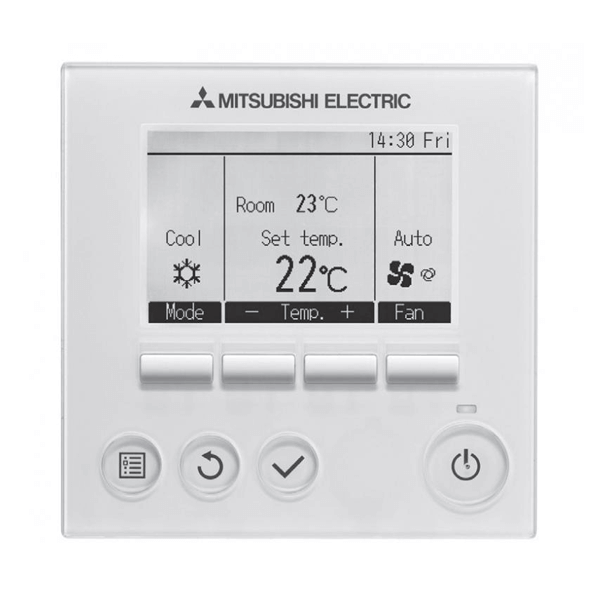

The Mitsubishi PAR-43MAAUB Wired Remote Control for Mitsubishi P-Series installations. This is the ideal remote controller in pursuit of easy operation, convenience, and energy saving.

User functions:

• On-Off
• Operation modes cool, heat, dry, fan
• Set temperature
• Fan speed setting
• Airflow direction

Specifications:

• Set P-Series twinning function
• Addressing - No addressing required
• Static pressure setting - model dependent
• Supports both Fahrenheit and Celsius
• Special Function Rotation-Backup - Lead-Lag for P-Series
• Controls group operation for up to 16 indoor units in a single group
• Fan speed setting for use with supplemental heating function - model dependent
• Features selectable multi lingual LCD - English, Spanish, and French
• Room Temperature - Displays room temperature sensed either at the indoor unit - default or at the remote controller
• Set Temperature Range Limit - From the back lit MA Controller, the allowable set temperature range can be reduced for cool and heat modes
• Function Lock Out - Prohibits all functions or all functions except On-Off from the back lit MA controller
• Wiring - connects using two-wire, stranded, non-polar control wire to indoor unit connection terminal or control adapter - MAC-333IF for M-Series requires crossover wiring for indoor unit grouping

Timer Operation:

• Weekly Timer - On-Off Temperature setting up to 8 times per day of the week in 1 minute increments
• Simple Timer - On-Off time can be set once within 72 hour period in 1 hour increments
• Auto off Timer - Turns indoor unit Off based on countdown time up to 4-hours in 30-minute increments
