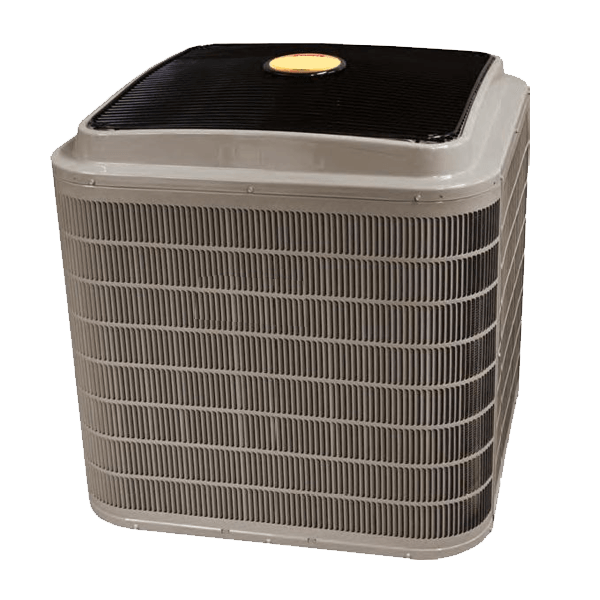

4 Ton 14 Seer Bryant Heat Pump Condenser
4 Ton 14 Seer Bryant Heat Pump Condenser
Model: 214DNA048000
The Bryant 214D Heat Pumps with Puron refrigerant provide a collection of features unmatched by any other family of equipment. The 214D has been designed utilizing Bryant™s Puron refrigerant. The environmentally sound refrigerant allows consumers to make a responsible decision in the protection of the earth™s ozone layer. The Legacy heat pump provides low-cost all-season comfort, cooling your home in summer with its up to 15 SEER rating, then reversing when temperatures drop for low-cost electric heat. It adds up to year-round value.
Standard Features:
- Efficiency: 14 SEER
- Microtube Technology refrigeration system
- Indoor air quality accessories available
- Sound level as low as 69 dBA
- Sound levels as low as 68 dBA with accessory sound blanket
- System supports Thermidistat or standard thermostat controls
- Puron refrigerant-environmentally sound, won™t deplete the ozone layer and low lifetime service cost
- Scroll compressor
- Internal pressure relief valve
- Internal thermal overload
- High pressure switch
- Loss of charge switch
- Filter drier
- Balanced refrigeration system for maximum reliability
- DuraGuardt protection package
- Solid, durable sheet metal construction
- Dense wire coil guard
- Baked-on powder paint
- Long line up to 250 feet, 76.20 m, total equivalent length, up to 200 feet, 60.96 m, condenser above evaporator, or up to 80 ft24.38 m, evaporator above condenser
- Low ambient, down to -20F/-28.9C, with accessory kit
| Model Number (s) | 214DNA048000 |
| Brand | Bryant |
| Type | Heat Pump |
| Ton | 4.0 Ton |
| SEER | 14 |
| Cooling Btu | 46,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 79 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 646341708238 |
| Heating Btu | 45,500 |
| Amp(s) | 40 |
| Voltage | 208/230V |
| Min. Operating Temp. (Degrees Farenheit) | -30 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 242 |
| Height (Inches) | 28 7/16 |
| Width (Inches) | 31 3/16 |
| Depth (Inches) | 31 3/16 |
| Category | Heat Pumps |
| HSPF | 8.20 |
