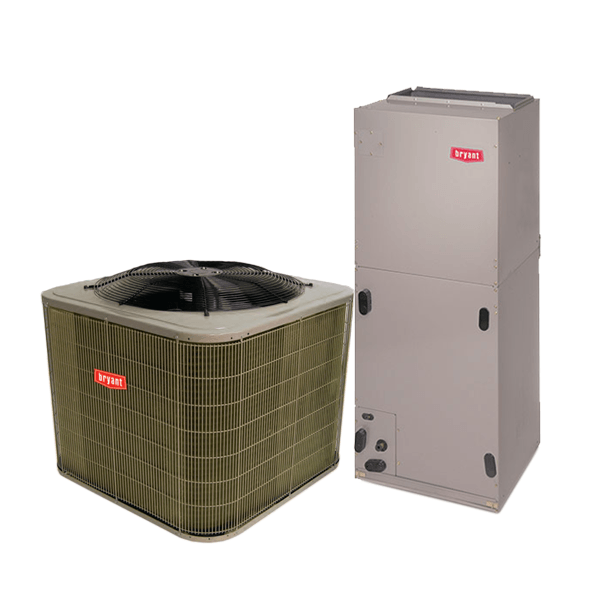

The Bryant 288BNV Heat Pump offers high-efficiency variable speed performance in a remarkably small cabinet and provides up to 11 HSPF heating efficiency and up to 18 SEER cooling efficiency. The variable speed inverter capacity control delivers up to 5 stages of operation for exceptional load matching, dehumidification and zoning performance. This product has been designed and manufactured to provide flexible system matching and work with a wide variety of indoor units and controls.

Standard Features:

• Energy Efficiency
• Up to 18 SEER /12.5 EER / 11 HSPF
• Microtube Technology refrigeration system
• Sound level as low as 55 dBA in low speed, Silencer System II
• Soft start and smooth ramp to operating speeds
• Variable speed compressor operates at 5 stages with capacity range from as wide as 25-100%
• Air cooled Inverter variable speed drive
• System requires Evolution Connex Control with version 11 software or newer for 5-stage operation
• Ratings provided with 2-stage thermostats and suitable
• non-communicating indoor products for 2-stage operation
• Puron refrigerant environmentally sound, won't deplete the ozone layer and low lifetime service cost
• Internal crankcase heater standard
• 2 control wires to outdoor unit in complete Evolution system and Connex Control
• Smaller and lighter than 2-stage units
• Minimum and Maximum adjustments with Evolution Connex Control
• Hybrid Heat dual fuel capable
• Compatible with non-communicating thermostats
• DuraGuard protection package

Cabinet Features:

• Solid, Durable sheet metal construction
• Steel louver coil guard
• Front-seating service valves
• Inverter control drives compressor and fan motor
• No control module attached to fan motor
• Evolution intelligence monitors critical system parameters
• Pressure equalizer valve for easy compressor starting
• High pressure switch
• Suction pressure transducer
• Electronic expansion valve EXV for heating, TXV for cooling
• Compressor discharge temperature sensor
• Suction temperature sensor
• Filter drier field installed
• Baked-on, complete outer coverage, powder paint
• Line sets up to 100 ft, 30.5 m equivalent length
• No long-line accessories required



The Bryant FE4A and FE5A Air Handlers are the most advanced air handlers available. With attention to quiet, efficient, and comfortable operation, Bryant has developed a new benchmark for homeowner comfort and ease of installation. The FE4A and FE5A utilize the Evolution Control as a required accessory to enable state of the art smart-diagnostics capability. This enables faster troubleshooting, providing ease of service and repair. The FE4A and FE5A also provide a 4-wire hook up with matching outdoor unit and the Evolution Control. This makes installation simpler and a lot quicker than with conventional fancoils. The FE4A and FE5A have advanced technology that allows the fan coil to self-configure with a matching outdoor unit and theEvolution Control, cutting down on installation time. The FE4A and FE5A feature Puron refrigerant, the chlorine-free alternate that is the future for the residential heating and cooling industry. The FE4A and FE5A using Puron refrigerant maximize performance for environmentally sound systems. In addition to environmental safety, these systems are 30 to 40% more efficient than standard heating and cooling systems, thereby combining excellence in efficiency and environmental safety. The FE4A and FE5A provide these benefits due to Bryants command of Electronically Commutating Motor ECM technology.

Standard Features:

• Self configuring, ease of installation
• Easier troubleshooting, providing faster service and repair
• Environmentally-Sound Refrigerant Technology
• Puron refrigerant the chlorine-free, non-ozone depleting refrigerant
• Thermostatic Expansion Valve TXV designed to maximize performance with Puron refrigerant
• Electronically Commutated Motor ECM operates efficiently at all speeds
• Maximizes efficiency of heating and cooling systems
• Ultra-low power consumption during fan only operation
• Warm, comfortable heating air temperatures
• Unmatched humidity control
• Logarithmic spiral blower housings for high blower efficiency and quiet operation
• Diffuser air discharge section for high airflow efficiency and quiet, smooth operation
• High duct static capability
• Unique cabinet design that meets new stringent regulations for air leakage. Meets requirements of a 2% cabinet leakage rate when tested at 1.0 in wc of static pressure.
• Minimal standing water, less microbial growth for improved IAQ and reduced condensate line clogging and related condensate leakage
• Condensate fittings relocated away from turbulent airflow patterns at the blower entrance for improved condensate control performance
• Overflow feature for slope coil units allows condensate to exit the unit without damage to product under clogged primary and secondary line conditions
• Tested for condensate disposal at conditions much more severe than those required by ARI
• Primary and secondary drain connections to comply with HUD
• All pans constructed of an injection molded glass-filled polycarbonate engineered resin material, with brass drain connections
• High density, super thick cabinetry insulation with vapor barrier
• Pre-painted galvanized sheet metal cabinet
• Grooved tubing
• Lanced sine wave aluminum fins
• Discreet refined counterflow refrigerant circuitry
• Bi-flow hard-shutoff TXV metering device
• Easy 4 wire hook up: convenient and reduces installation time.
• FE4A unit is multipoise
• FE5A unit is upflow-downflow only single drain pan.
• Provision made for suspending from roof or ceiling joints
• Modular cabinet on sizes 003 through 006
• Sweat connections for leak free service
• Multiple electrical entry for application flexibility, high and low voltage
• Low voltage terminal strip, to safely hold connections within the cabinet
• Cabinet construction features innovations designed to prevent cabinet sweating
• Easy plug connection provided for quick installation of accessory heater packages
• 40VA 208-230v transformer
• Replaceable 3-amp blade-type auto fuse protects against transformer secondary short
• Factory supplied filter
• Cleanable polyester filter media
• Filter springs out for easy access no tools required
• Newly improved filter rack area filter door insulation added for an improved air seal
