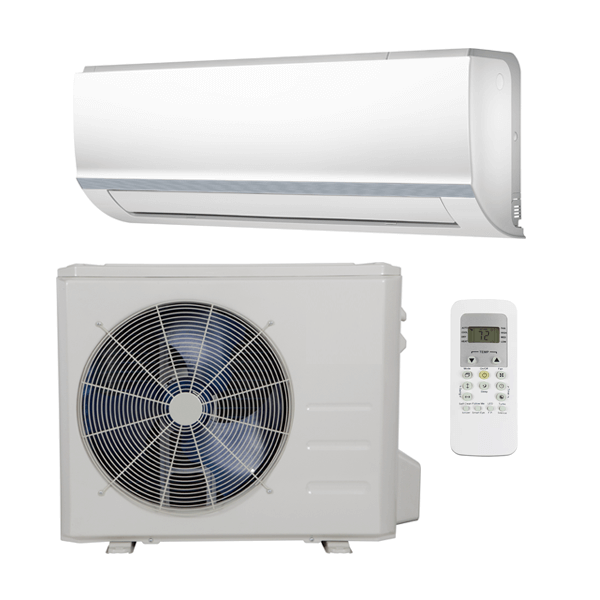

12,000 Btu 17 Seer Carrier Single Zone Ductless Mini Split Air Conditioning System
12,000 Btu 17 Seer Carrier Single Zone Ductless Mini Split Air Conditioning System
Model: 38MHRC12A-3 - 40MHHC12-3
The Carrier 38MHR-40MHH Single Zone Ductless Mini Split System provides individual comfort control. These compact indoor fan coil units take up very little space in the room and do not obstruct windows. The fan coils are attractively styled to blend with most room decors. Advanced system components incorporate innovative technology to provide reliable cooling performance at low sound levels.
Standard Features:
- Follow Me
- Turbo Mode
- Sleep Mode
- Diagnostics
- Silence Mode
- Auto Changeover
- Comfort Features
- Stop-Start Timer
- Crankcase Heater
- Mounting Brackets
- Cleanable Filters
- Ease Of Installation
- Low Voltage Controls
- Air Direction Control
- Auto Restart Function
- IPM Module Protection
- Energy Saving Features
- Safety And Reliability
- Energy Saving Features
- Low Voltage Protection
- Wireless Remote Control
- Microprocessor Controls
- Application Flexibility
- Liquid Line Pressure Taps
- Inverter Driven Compressor
- Auto Changeover On Heat Pumps
- Indoor Coil Freeze Protection
- Compressor Overload Protection
- Ease Of Service And Maintenance
- Cold Blow Protection On Heat Pumps
- 3 Minute Time Delay For Compressor
- Compressor Over Current Protection
- Freeze Protection Mode On Heat Pumps
- High Compressor Discharge Temperature
- Automatic Up-Down Airflow Louver Swing
- Aluminum Blue Hydrophilic pre-coated fins
- Condenser High Temp Protection in Cooling Mode
- Indoor Coil High Temp Protection in Heating Mode
- 46 Degree Fahrenheit Heating Mode (Heating Setback)
| Model Number (s) | 38MHRC12A-3 - 40MHHC12-3 |
| Brand | Carrier |
| Type | Air Conditioning |
| SEER | 17 |
| Cooling Btu | 12,000 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 1/2 |
| Liquid Valve Size (Inches) | 1/4 |
| Outdoor Unit Height (Inches) | 21.85 |
| Outdoor Unit Width (Inches) | 30.31 |
| Outdoor Unit Depth (Inches) | 11.81 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| Amp(s) | 15 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 0 |
| Maximum CFM | 506 |
| Indoor Unit Depth (Inches) | 7.75 |
| Indoor Unit Width (Inches) | 32 |
| Indoor Unit Height (Inches) | 11.8 |
| Outdoor Unit Depth (Inches) | 11.81 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| Amp(s) | 15 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 0 |
| Maximum CFM | 506 |
| Indoor Unit Depth (Inches) | 7.75 |
| Indoor Unit Width (Inches) | 32 |
| Indoor Unit Height (Inches) | 11.8 |
