IMPORTANT NOTE:  When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023.  This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.

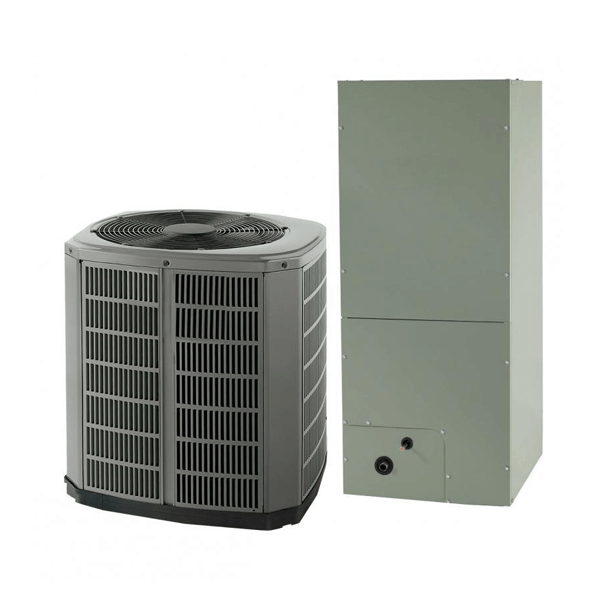

The A.S. 4A7A40 Air Conditioner is fully charged from the factory for up to 15 feet of piping. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 1995. Exterior is designed for outdoor application. The compressor features internal over temperature, pressure protection and total dipped hermetic motor. Other features include: Centrifugal oil pump and low vibration and noise. An unbeatable combination of value and reliability, Silver Series air conditioners feature Spine Fin coils and Duration single-stage compressors, providing powerful cooling with the reliability you expect from A.S.

Standard Features:

• DURATION compressor
• EASY-SESS cabinet, service access and refrigerant connections
• Efficiency up to 16.00 SEER
• DURABASE base, fast complete drain, weatherproof
• COMFORT R mode approved for better comfort indoors
• WeatherGuard fasteners
• High pressure switch
• Glossy corrosion resistant finish
• Internal compressor high/low pressure & temperature protection
• Liquid line filter/drier
• All aluminum Spine Fin coil
• High pressure switch
• Low ambient cooling to 30°F with AY28X079

Cabinet Features:

• Unit casing is constructed of heavy gauge galvanized steel
• Painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel
• The corner panels are prepainted
• All panels are subjected to our 1,000 hour salt spray test
• The base is made of a CMBP-G30 weatherproof material to resist corrosion

The A.S. TEM4 Air Handlers are built for specific needs and systems to provide you the most reliable comfort and efficiency, reducing your energy costs. Rugged and durable, the Silver Series meets or exceeds all standard efficiency requirements as part of your matched system. Its the quality performance youve come to know from A.S.. The TEM4 air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. There versatile units are applicable to air conditioning and heat pump applications. Several Models are available to meet the specific requirements of the outdoor equipment. Field installed electric resistance heaters are available.

Standard Features:

• ECM Motor (3.5 - 5 Ton Models)
• Side Return Option
• Refrigerant Connection
• Slide in Electric Heaters
• Labeled Panels and connections
• Low Voltage Color Coded Wires
• Enhanced Coil Fin Patented
• Blow Through Design
• Maximum Width of 23.5
• 2% or less air leakage
• Fused 24V Power

Cabinet Features:

• Unique Cabinet Design
• Multi-Position Upflow/ Horizontal Left / Horizontal Right
• Integrated Horizontal Drain pans
• Single Color
• Painted metal cabinet with captured foil face insulation
