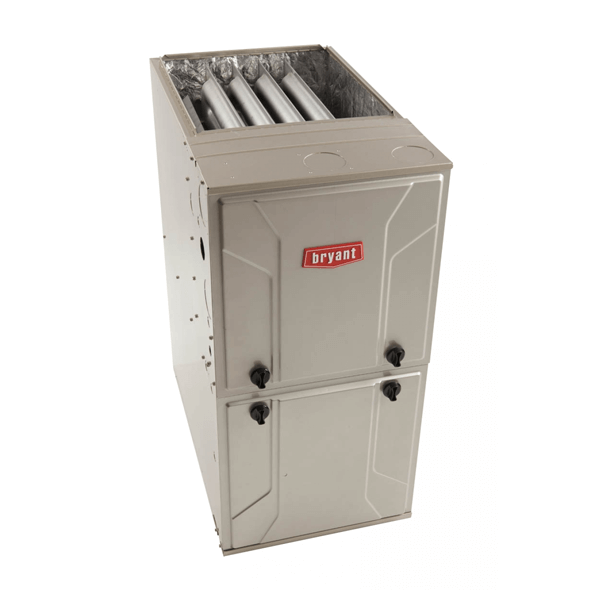

The Bryant 926TA Gas Furnace features the two stage Preferred Series System. The Perfect Heat technology two stage gas valve is at the heart of the comfort provided by this furnace, along with the variable speed ECM blower motor, and two-speed inducer motor. With an Annual Fuel Utilization Efficiency (AFUE) up to 96.5%, the Preferred Series two-stage gas furnace provides exceptional savings as well when compared to standard gas furnaces. This Preferred Series Gas Furnace also features 4 way multipoise installation flexibility, and is available in eight model sizes. The 926TA can be vented for direct vent/two-pipe, ventilated combustion air, or single pipe applications. All units meet California Air Quality Management District emission requirements. All sizes are design certified in Canada.

Standard Features:

• All sizes meet ENERGY STAR Version 4.0 criteria for gas furnaces: 95+AFUE; AMACF electrical rating; 2% or less cabinet airflow leakage
• Quiet operation.
• SmartEvap technology helps control humidity levels in the home when used with a compatible humidity control system
• FanOn Plus technology allows control of continuous fan speed from a compatible thermostat
• Full featured variable speed blower motor, two-speed inducer motor, and two stage gas valve
• Self diagnostics
• Adjustable blower speed for cooling, continuous fan, and dehumidification
• Installation flexibility: sidewall or vertical vent
• Residential installations may be eligible for consumer financing through the Retail Credit Program
• Certified to leak 2% or less of nominal air conditioning CFM delivered when pressurized to 1-in. water column with all present air inlets, air outlets, and condensate drain port sealed

Cabinet Features:

• 4-way multipoise design for upflow, downflow or horizontal installations, with unique vent elbow and optional through the cabinet downflow venting capability
• Ideal height 35 inches (889 mm) cabinet: short enough for taller coils,but still allows enough room for service
• Silicon Nitride Perfect Light Hot Surface Igniter
• Aluminized steel primary heat exchanger
• Stainless steel condensing secondary heat exchanger
• Propane convertible, See Accessory list
• Factory configured ready for upflow applications
• Fully insulated casing including blower section
• Convenient Air Purifier and Humidifier connections
• Direct vent/sealed combustion, single-pipe venting or ventilated combustion air
