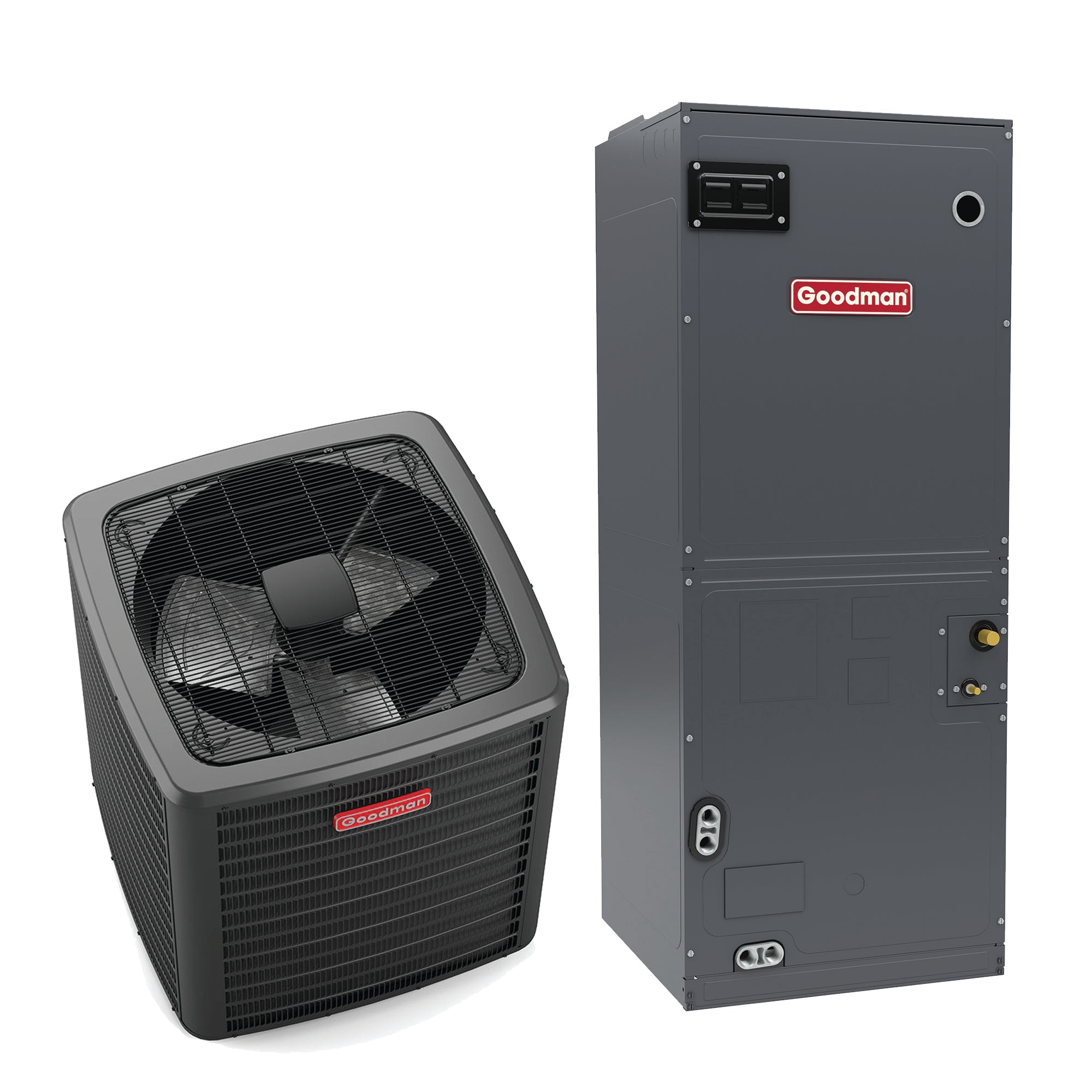

The Goodman GSXN3 Air Conditioner uses the environmentally friendly refrigerant R-410A and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

• Energy-Efficient Compressor
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• ARI Certified; ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Rust-resistant coated screws
• Single-panel access to controls with space provided for field-installed accessories

NOTE TO CUSTOMER: To ALL interested parties, the sale of this 13 Seer Rated product is limited to the following states [AK, CO, CT, ID, IL, IN, IA, KS, ME, MA, MI, MN, MO, MT, NE, NH, NJ, NY, ND, OH, OR, PA, RI, SD, UT, VT, WA, WV, WI, WY, as well as the U.S. Territories]. If you are located in [AZ, CA, NV, NM, AL, AR, DE, FL, GA, HI, KY, LA, MD, MS, NC, OK, SC, TN, TX, VA and the District of Columbia] then you must purchase a minimum of 14 Seer Rated product in order to conform to the new EPA Regulations. Please contact us at 888.474.9966 for further information.

The Goodman AVPTC Air Handler includes a variable-speed ECM motor to help eliminate the cold blast of air upon heating start-up. The constant low speed fan run option helps to maintain temperature throughout the household. State of the art variable speed technology.

Standard Features:

• Compatible with the ComfortNet Communicating System family of products
• Maximum four low-voltage wires required for operation in communicating mode
• Auto configuration of the airflow and tonnage in communicating mode
• In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the systems CFM for each individual mode of operation
• R-410A refrigerant-compatible
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• Provides adjustable low CFM for efficient fan-only operation
• CFM indicator with front-panel sight glass
• Improved humidity control and comfort
• Compatible with variable-capacity heat pumps and cooling applications
• Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
• AHRI Certified; ETL Listed

Cabinet Features:

• Fully insulated, painted steel cabinet with attractive Architectural Gray finish
• Compact, versatile upflow, downflow,or horizontal multi-position installations
• Low-voltage cabinet connections; control circuit is arranged to permit staging
• Power supply on top; low-voltage entry on top or side
• Cabinet air leakage less than 2.0% at 1.0 inch H2Owhen tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2Owhen tested in accordance with ASHRAE standard 193
• Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation
