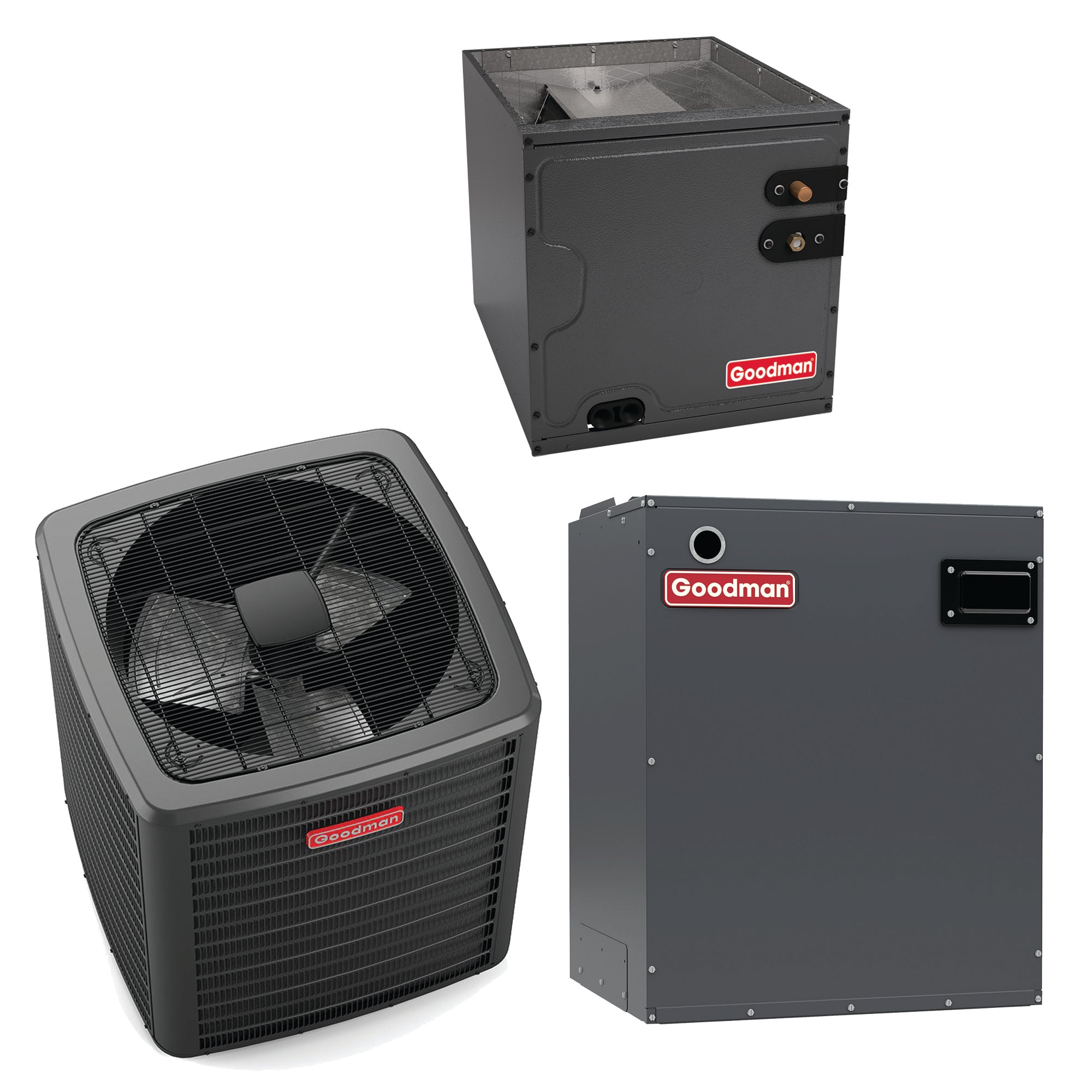

The Goodman GSZB4 Heat Pump Condenser is available now in very limited quantities! This unit will only match with Goodman AMST and AWST air handlers or CAPTA series coils. This unit will not work with ARUF or ASPT air handlers.

Standard Features:

• Energy-efficient compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
• Service valves with sweat connections and easy-to-access gauge ports
• Contactor with lug connection
• Ground lug connection
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman CHPT Evaporator Coils are designed for use with Goodman Gas Furnaces, Split System Air Conditioners and Heat Pumps, as well as modular, two-piece blowers. Each cased coil has a quality, galvanized-steel cabinet.

Standard Features:

• All-Aluminum evaporator coil
• Optimized for use with R-410A refrigerant
• Some models suitable for use with R-410A or R-22 refrigerant
• CAPT, CAPTA, CHPT, CHPTA models feature factory-installed thermal expansion valves for cooling and heat pump applications
• CAPF, CAPFA, CAUF, CAUFA, CHPF, CSCF models feature a check flowrator for cooling and heat pump applications
• Vertical and horizontal models available
• 21” depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• AHRI certified; ETL listed

The Goodman MBVC Modular Blower is tailor-made for exceptional energy efficiency. This blower is designed with quality components and assembled with excellent craftsmanship.

Standard Features:

• Compatible with the ComfortNet Communication System family of products
• Variable-speed ECM blower motor
• Auto configuration of the airflow and tonnage in communicating mode
• CFM indicator
• Maximum four low-voltage wires required for operation in communicating mode
• Built-in dehumidify feature
• Diagnostic indicator lights
• Storage of six prior fault codes
• Programmable heat strip settings
• Color-coded terminal strip for noncommunicating set-up
• Cooling and heat pump applications
• AHRI Certified
• ETL Listed

Cabinet Features:

• Painted, galvanized steel cabinet
• Blower section usable as an electric furnace
• Foil-faced insulation is glued in place and covers the entire blower case, reducing sound and cabinet condensation
• Bottom flanges formed inward for additional strength, and to provide mounting surface for cased-coil section
