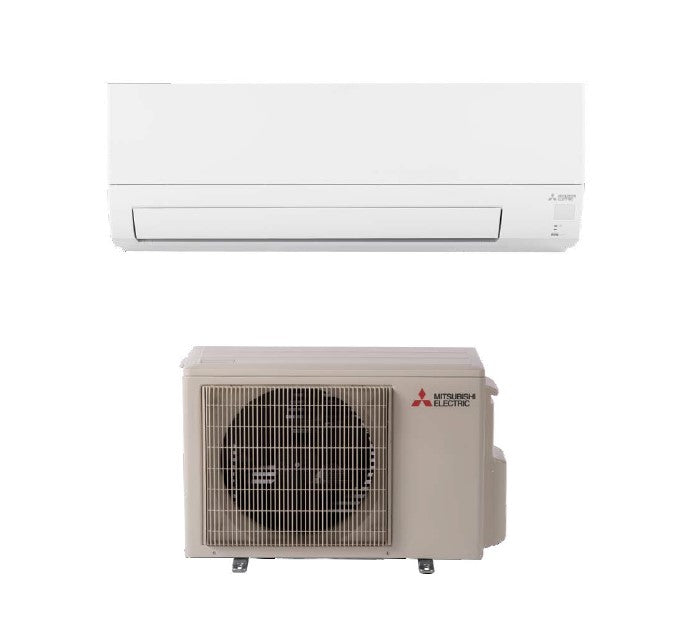

Mitsubishi 9,000 Btu R-454B 20 SEER2 Mini Split Single Zone Heat Pump System (115V)
Mitsubishi 9,000 Btu R-454B 20 SEER2 Mini Split Single Zone Heat Pump System (115V)
Model: MUZ-JX09WL- MSZ-JX09WL
Couldn't load pickup availability
The Mistubishi JX Series Mini Split Heat Pump Systems plug into 115V outlets without extensive electric work and construction, making it the perfect unit for historic homes and light commercial applications. The whisper-quiet 115V Wall-mounted Unit features Econo Cool, an energy-saving feature temporarily adjusts the amount of air directed toward occupants.
General Features:
- 115V
- 12-hour timer
- Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface of the heat pump, resulting in optimal airflow and easier maintenance.
- Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort.
- Four fan speed options: Low, Medium, high, Super-high
- Multiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
- Smart Dry Mode: Improves humidity control with minimal over-cooling of the space

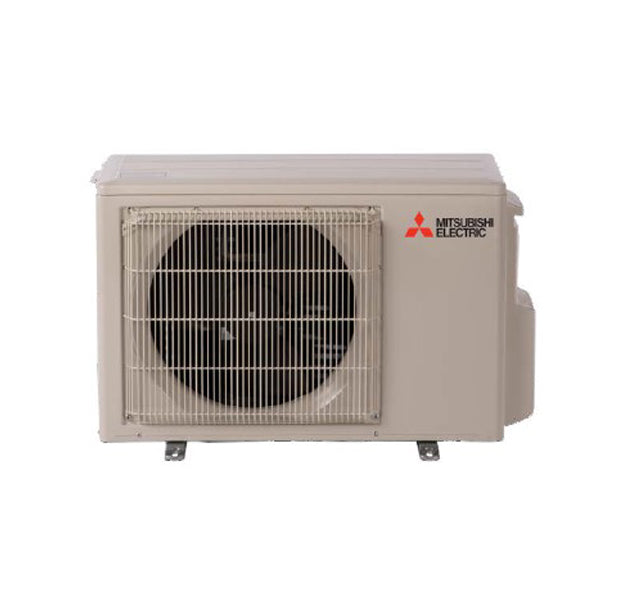

- Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
- INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
| Model Number (s) | MUZ-JX09WL- MSZ-JX09WL |
| Brand | Mitsubishi |
| Type | Heat Pump |
| SEER | 20 |
| Cooling Btu | 9,000 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 50 |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 3/8 |
| Liquid Valve Size (Inches) | 1/4 |
| Outdoor Unit Height (Inches) | 21 5/8 |
| Outdoor Unit Width (Inches) | 31 1/2 |
| Outdoor Unit Depth (Inches) | 11 1/4 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 216626292 |
| UPC # | 633190284198 |
| Heating Btu | 9,000 |
| Voltage | 115V |
| Zones | 1 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | -4 |
| Total Shipping Weight (lbs.) | 95 |
| Indoor Unit Depth (Inches) | 9 |
| Indoor Unit Width (Inches) | 33 |
| Indoor Unit Height (Inches) | 11 |
| HSPF | 10 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 216626292 |
| UPC # | 633190284198 |
| Heating Btu | 9,000 |
| Voltage | 115V |
| Zones | 1 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | -4 |
| Total Shipping Weight (lbs.) | 95 |
| Indoor Unit Depth (Inches) | 9 |
| Indoor Unit Width (Inches) | 33 |
| Indoor Unit Height (Inches) | 11 |
| HSPF | 10 |
