**PLEASE BE ADVISED** This is highly specialized HVAC equipment and should only be purchased by or after consulting with a licensed technician. The AC Outlet cannot be held liable for any equipment that has been purchased incorrectly.  PLEASE NOTE: The BTU capacity of a Multi-Zone system is measure by the sum of ALL AIR HANDLERS, not by the rated capacity of the condenser.

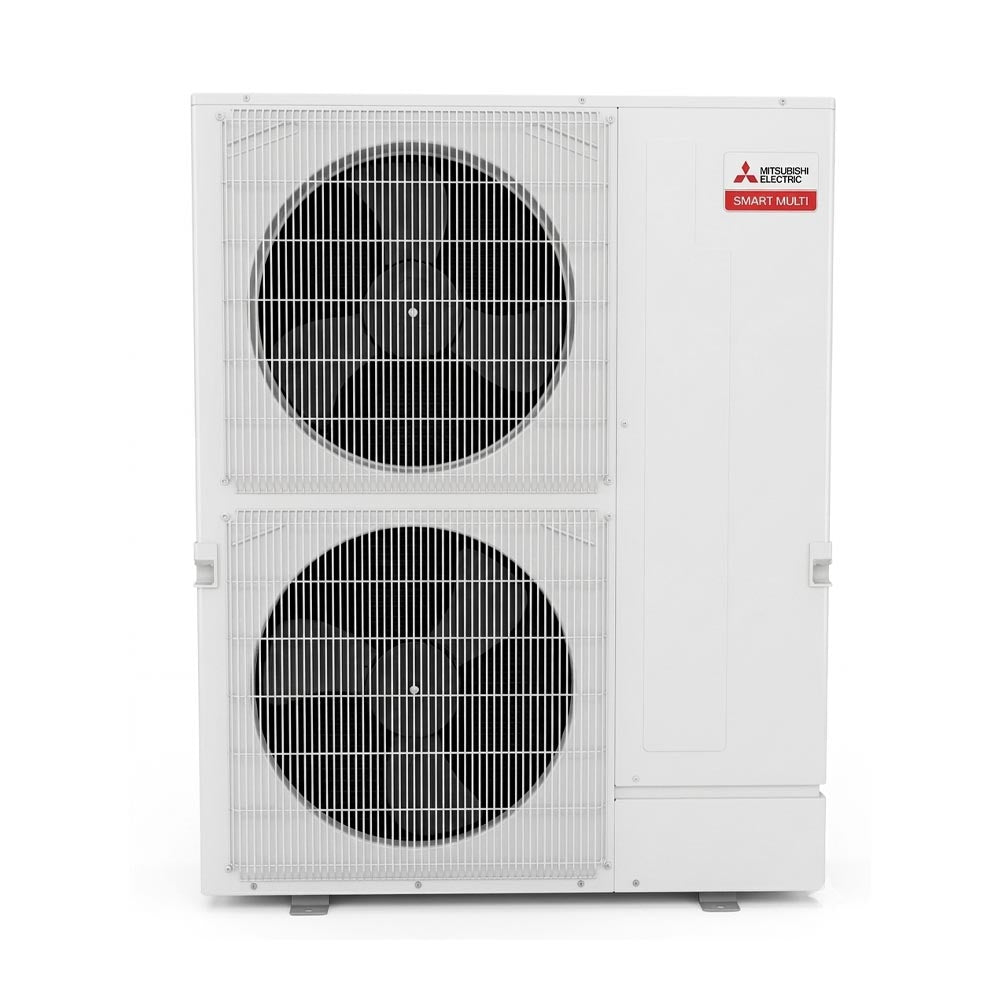

The Mitsubishi MXZ-SM Smart Multi Condenser supports up to eight indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units and efficiency-boosting inverter technology, the MXZ-SM60NL is a smart addition for nearly any home.

Standard Features:

• Compressor overcurrent detection
• Compressor thermal protection
• Fan motor overheating/voltage protection
• High pressure protection
• INVERTER-driven compressor: Compressor generates the precise capacity needed to maintain a temperature set point.
• Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
• Seacoast protection: Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs. in accordance with ASTM B117 testing)
• Thermal Differential 1°F
• Precision Temperature Control Technology
• The outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
• Seacoast Protected Condenser
• Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Mitsubishi coats their condensers with an anti-rust coating to extend its lifespan.
• Mix and Match
• The MXZ-SM60NL is compatible with more than a dozen different indoor units. It even works with the advanced MSZ-FX indoor units. This makes it easy to design a system that suits your home, no matter how it is arranged.
• Product Compatible With
• Mitsubishi MSZ-GX Wall Mounted Mini Split Indoor Units
• Mitsubishi MSZ-FX Wall Mounted Hyper-Heating Mini Split Indoor Units
• Mitsubishi MFZ-KX Floor Standing Mini Split Indoor Units
• Mitsubishi SEZ-AD Concealed Duct Mini Split Indoor Units
• Mitsubishi MLZ-KX One-Way Ceiling Cassette Mini Split Indoor Units
• Mitsubishi SLZ-AF Ceiling Cassette Mini Split Indoor Units

Possible Btu Combinations:

• See Installation Guides
