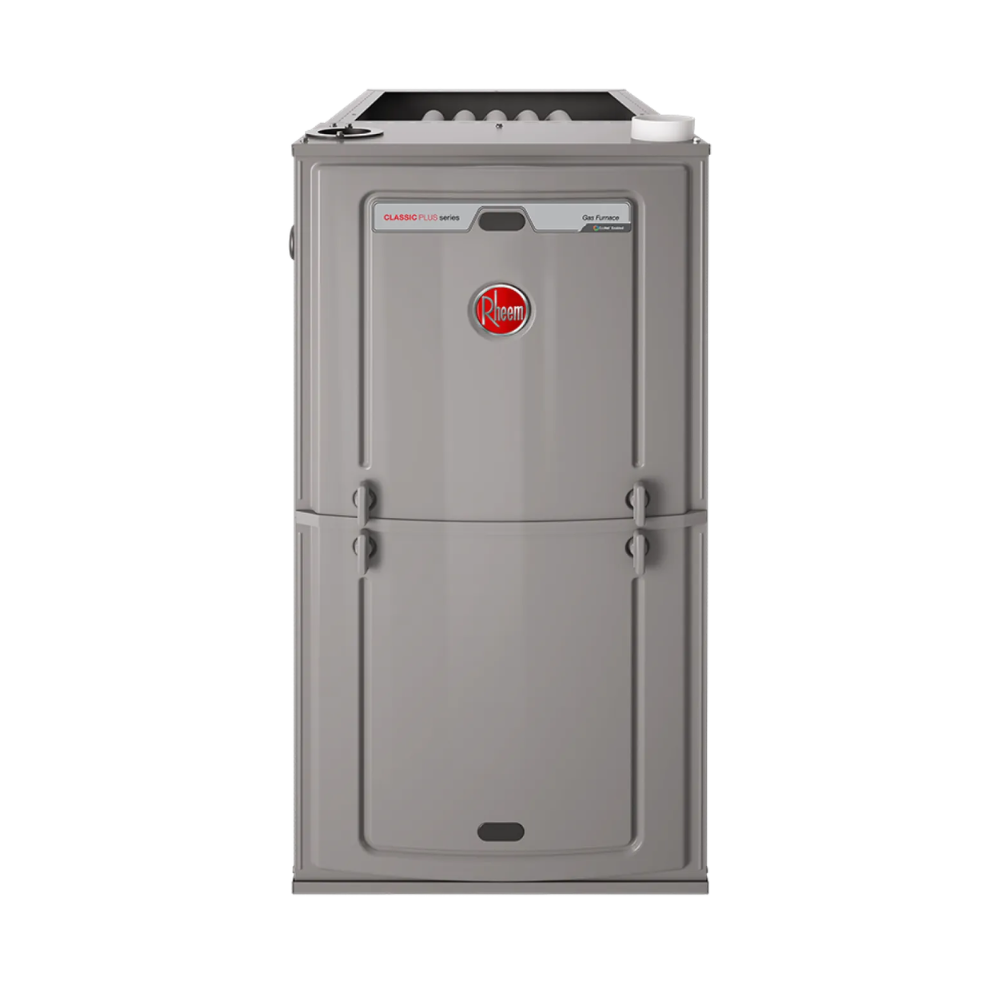

Rheem Endeavor 60,000 BTU 96% AFUE Variable Speed Gas Furnace
Rheem Endeavor 60,000 BTU 96% AFUE Variable Speed Gas Furnace
Model: R962V0603A17M4SCAP
Couldn't load pickup availability
The Rheem Endeavor R962V 60,000 BTU Gas Furnace can deliver warm, money-saving indoor comfort year after year to your home. These variable speed furnaces provide enhanced indoor comfort by efficiently managing airflow to maintain your thermostat setting. Choose from the Rheem Endeavor line that offers excellent reliability and industry-leading performance. To find a gas furnace that delivers maximum energy efficiency and savings, select a unit with a high AFUE rating like this 96% efficient model.
Standard Features:
- PlusOne® Diagnostics: Industry-first 7-segment LED display for easy serviceability
- PlusOne® Ignition System: Proven Direct Spark Ignition (DSI) for unmatched reliability
- Variable Speed ECM Motor: Provides maximum efficiency, consistent airflow performance, and enhanced humidity control
- Two-Stage Operation: Provides precise temperature control and increased energy efficiency compared to single-stage models
- Primary and Secondary Heat Exchangers: Designed for maximum corrosion resistance and high-efficiency thermal performance
- Low Profile Cabinet: 34-inch height is perfect for tight installations
- EcoNet® Enabled: Allows for advanced system diagnostics and control when paired with an EcoNet Smart Thermostat
- All models comply with California NOx emissions standards
Cabinet Features:
- Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
- Designed for 4-way multi-poise installations (Upflow, Downflow, Horizontal)
- Removable panels for easy access to internal components
- 17.5-inch width for space-saving installations
| Model Number (s) | R962V0603A17M4SCAP |
| Brand | Rheem / Ruud |
| Type | Gas Heat |
| Refrigerant Type | R-454B |
| Parts Warranty (Years) | 10 (If Registered as a System Only) |
| UPC # | 633190304834 |
| Furnace Configuration | 4-Way (Upflow or Downflow) |
| Afue | 96% |
| Amp(s) | 15 |
| Voltage | 115V |
| Heat Exchanger Warranty (Years) | 20 |
| Blower | Variable Speed |
| Maximum CFM | 600 |
| Total Shipping Weight (lbs.) | 128 |
| Height (Inches) | 34 |
| Width (Inches) | 17.5 |
| Depth (Inches) | 26.3125 |
| Category | Gas Furnaces |
| Input Btu (Furnaces/Package) | 60000 |
| Output Btu (Furnaces/Package) | 53200 |
| Heat Exchanger Warranty (Years) | 20 |
| Blower | Variable Speed |
| Maximum CFM | 600 |
| Total Shipping Weight (lbs.) | 128 |
| Height (Inches) | 34 |
| Width (Inches) | 17.5 |
| Depth (Inches) | 26.3125 |
| Category | Gas Furnaces |
| Input Btu (Furnaces/Package) | 60000 |
| Output Btu (Furnaces/Package) | 53200 |
