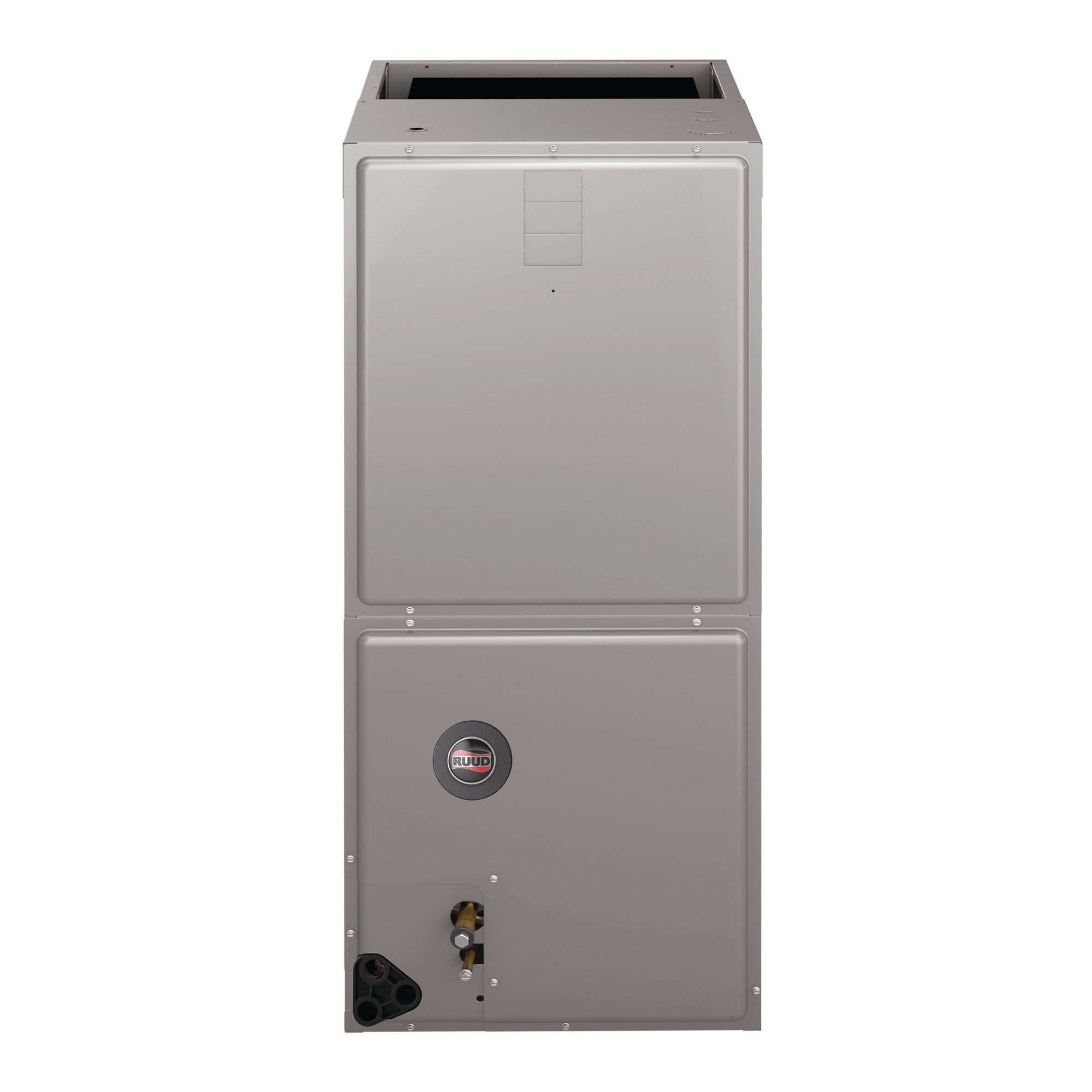

The Ruud by Rheem Endeavor RH1PZ Air Handler with a PSC Motor comes with a versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications. It includes a factory-installed indoor coil. Its sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.

Standard Features:

• Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications
• Factory-installed indoor coil
• Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
• Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect
• 1-1/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 42-1/2 to 55-1/2 inches [1080 to 1410 mm] tall and 22 inches [559 mm] deep
• All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure
• Enhanced airflow up to .7” external static pressure
• Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing
• Cabinet air leakage less than 2% at 1 inch H2O when tested in accordance with ASHRAE Standard 193
