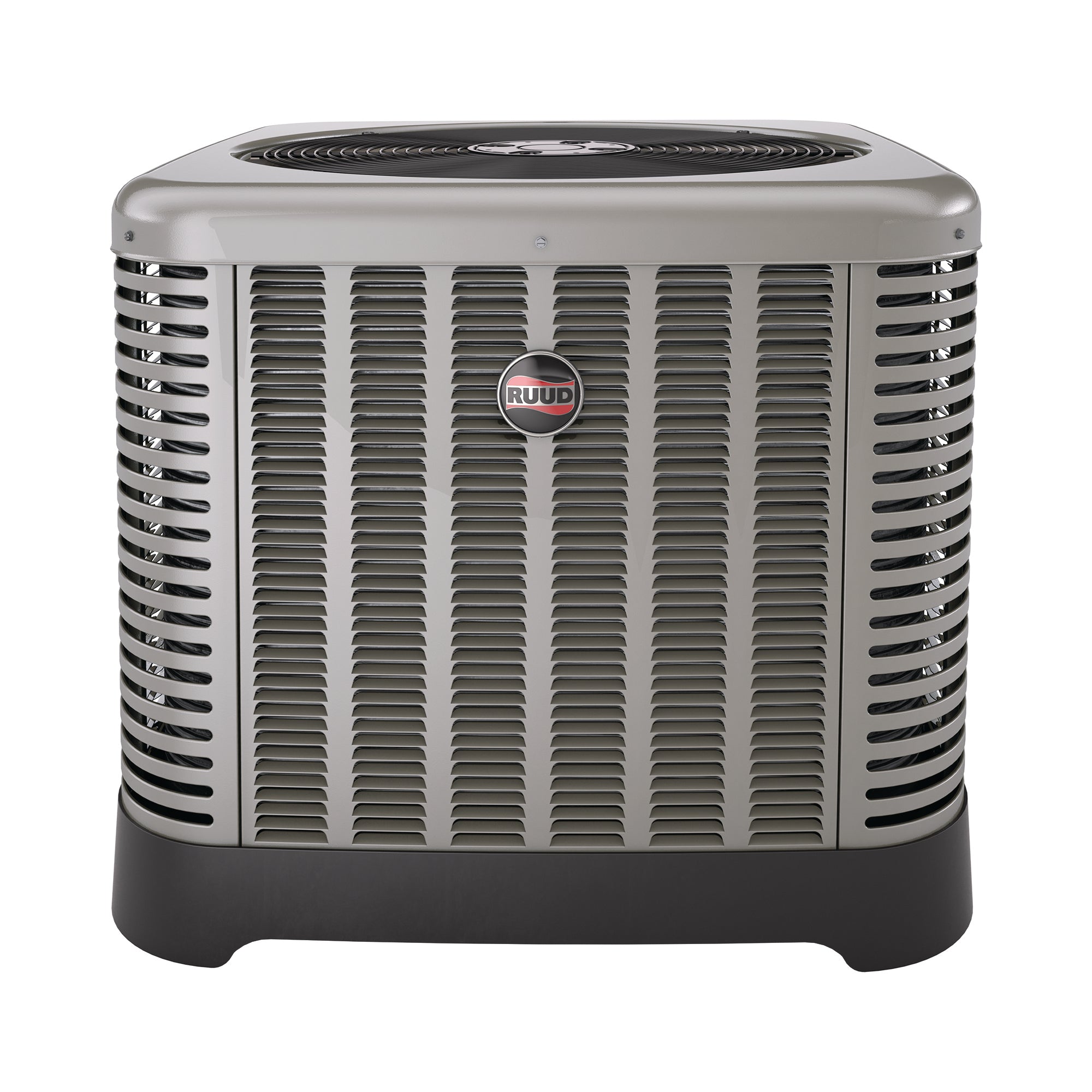

The Rheem / Ruud Endeavor RP14AY Heat Pump is part of the Rheem heat pump product line that extends from 14.3 to 18 SEER2. This highly featured and reliable heat pump is designed for years of reliable, efficient operation when matched with Rheem indoor aluminum evaporator coils and furnaces or air handler units with aluminum evaporators. Our unique composite base reduces sound emission, eliminates rattles, significantly reduces fasteners, eliminates corrosion and has integrated brass compressor attachment inserts. Furthermore it has incorporated into the design, water management features, means for hand placement for unit maneuvering, screw trays and inserts for lifting unit off pad.

Standard Features:

• Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
• Two-Stage Scroll Compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
• Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
• PlusOne Expanded Valve Space: 3 in. -4 in.- 5 in. service valve space-provides a minimum working area of 27-square inches for easier access
• PlusOne Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels-makes repairs easier and faster
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78% lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort.
• PlusOne Refrigerant Detection System3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected/li>
• Rugged Curb Appeal: Curved louvered panels and rugged corner posts provide excellent support and protection to internal components, while the overall modern cabinet aesthetics, including the corrosion-resistant composite base pan and powder coat paint system allow your unit to put its best face forward for years to come.
• Quiet Operation: Efficient home comfort shouldn’t be noisy. Our heat pumps are engineered with acoustics in mind. Sound-dampening features such as refrigerant tubing design, fan blade approach, composite base pan and innovative compressor and drive technologies ensure that as efficiency increases, sound levels remain low.

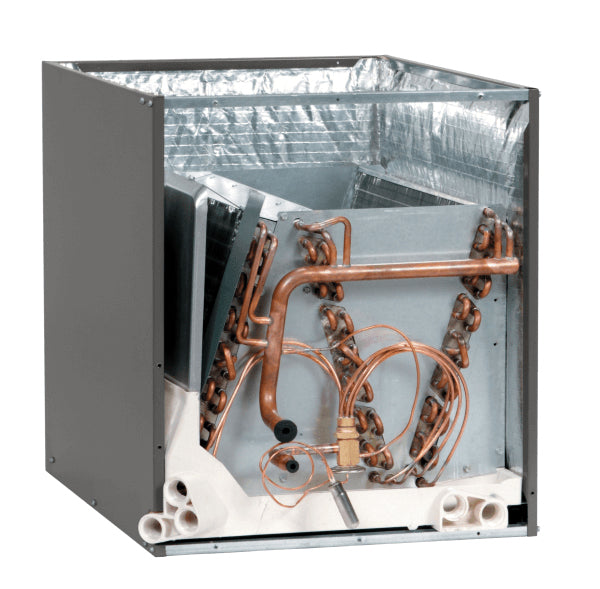

The Rheem / Ruud Endeavor Series Evaporator Coil is built to perform like a champion. Its all-aluminum construction makes it extra durable, allowing the coil to run better and last longer. Even the endplates are aluminum, so the unit looks as good as it runs. Every coil is factory-tested, checked for leaks and held to the highest industry standards. If it doesn't pass the test, it doesn't go in the box. We are also proud that the coils robust design far exceeds normal operating pressures. Precise heat-control of the automated brazing oven during the brazing process means you get a quality braze joint every time. So, you can guarantee your customers one of the most durable, long-lasting products on the market today.

Standard Features:

• Rheem Indoor Furnace cased coils and replacement uncased coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,00 BTU/HR [17.6 kW]
• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Coils are tested at the factory with an extensive refrigerant leak check
• Coils have copper sweat refrigerant connections
• Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection
• Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only)
• Approved for system application with variety of Rheem outdoor units
• Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
• Compatible with Germicidal Light System (UV resistant)
• Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
• Unique drain pan design maximizes application flexibility and condensate removal.
• N-Coil design maximizes performance and minimizes height required at installation
• Coils are AHRI certified for system application with a variety of Rheem outdoor units

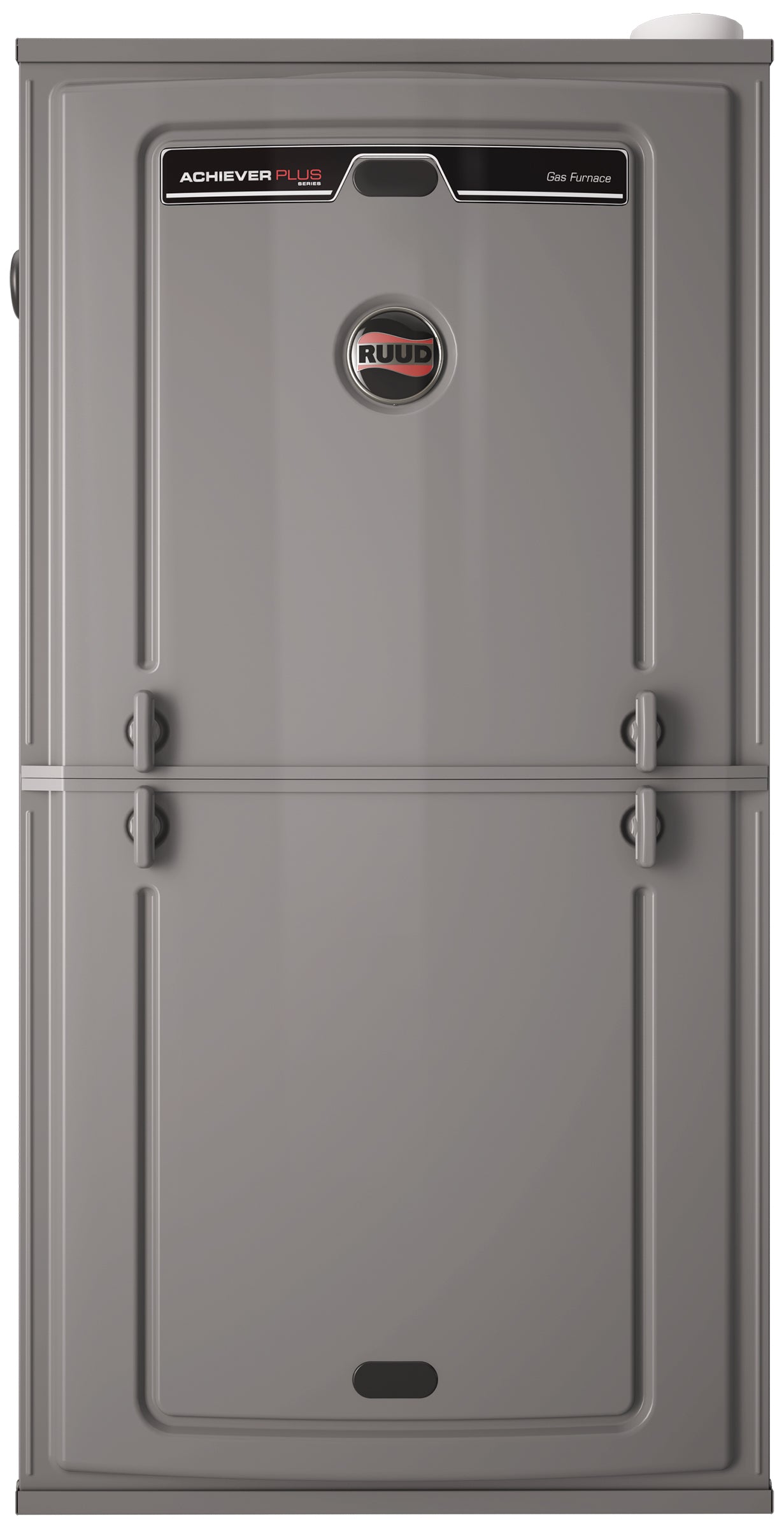

The Rheem R92T Gas Furnace provides excellent value and reliable comfort. It’s designed for lasting energy-efficient comfort that saves you money while delivering peace of mind. We evaluate every detail of a product from top to bottom, inside and out and every angle in between. That’s 360+1. And that’s why you can count on this gas furnace to bring you and your family years of efficient and dependable indoor comfort. Higher AFUE (Annual Fuel Utilization Efficiency) ratings mean more energy savings and this 95% AFUE, ENERGY STAR® certified gas furnace is close to perfect when it comes to efficiently converting gas to heat—offering up to $85 in annual energy costs savings2 and potentially even more with available rebates.

Standard Features:

• PlusOne® Energy Efficiency: ENERGY STAR® certified, featuring 92% AFUE across all model sizes
• 4 way multi-poise design
• PlusOne ® Diagnostics: Industry-first, 7-Segment LED for quick and easy service
• PlusOne ® Ignition System: Proven Direct Spart Ignition (DSI) for reliability and longevity
• PlusOne® Water Management System: Ruud-exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
• Heat exchanger is removable for improved serviceability. Aluminized steel primary and stainless steel secondary construction provide maximum corrosion resistance and thermal fatigue reliability.
• Low profile 34 inch inches cabinet ideal for space-constrained installations
