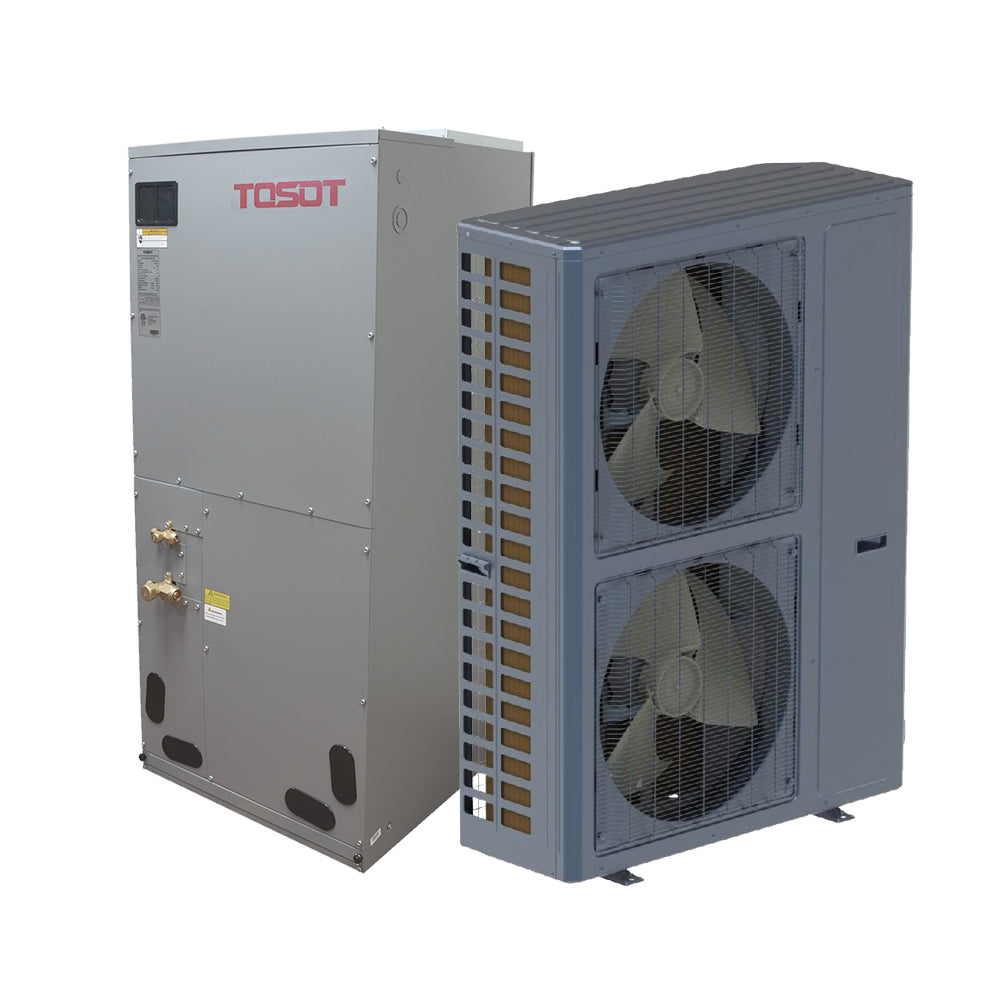

Tosot Unix 4-5 Ton Convertible 18.5 SEER2 R-32 Inverter Heat Pump System
Tosot Unix 4-5 Ton Convertible 18.5 SEER2 R-32 Inverter Heat Pump System
Model: TU60-32WEDU - TUD60-32AH2EDU
Couldn't load pickup availability
The Tosot Universal DC Inverter Ducted Central Heat Pump (T-Unix) is designed to be installed in the same way as standard single stage heat pump/AC system. The T-Unix system, along with an appropriate thermostat, can learn your preferences and adjust the output capacity to match your ideal temperature levels. The units are also compatible with most standard 24VAC (2H1C) heat pump thermostats.
Standard Features:
- Fully modulation inverter drive to match the heating and cooling load
- Up to 20 Seer and 10.5 HSPF
- Stepless DC fan motor for whisper quiet operation
- Wide range of operation conditions with heating down to -22 °F and cooling up to 129 °F
- Two stage compression EVI technology for small performance declines at extreme condition
- Compact design – Fit in areas where space is limited
- Multi-position air handler, horizontal and vertical provides more installation options
- 10-year Residential Limited Warranty
| Model Number (s) | TU60-32WEDU - TUD60-32AH2EDU |
| Brand | Tosot |
| Type | Heat Pump |
| Ton | 4.0 Ton |
| SEER | 18.5 |
| Cooling Btu | 54,000 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-32 |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 54 |
| Outdoor Unit Width (Inches) | 43 |
| Outdoor Unit Depth (Inches) | 14 1/2 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| AHRI Certificate # | 205724740 |
| Heating Btu | 54,000 |
| Total Shipping Weight (lbs.) | 550 |
| Indoor Unit Depth (Inches) | 21 1/4 |
| Indoor Unit Width (Inches) | 24 1/2 |
| Indoor Unit Height (Inches) | 57 |
| Category | Split System |
| HSPF | 10.0 |
| Outdoor Unit Width (Inches) | 43 |
| Outdoor Unit Depth (Inches) | 14 1/2 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| AHRI Certificate # | 205724740 |
| Heating Btu | 54,000 |
| Total Shipping Weight (lbs.) | 550 |
| Indoor Unit Depth (Inches) | 21 1/4 |
| Indoor Unit Width (Inches) | 24 1/2 |
| Indoor Unit Height (Inches) | 57 |
| Category | Split System |
| HSPF | 10.0 |
