IMPORTANT NOTE: When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023. This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.

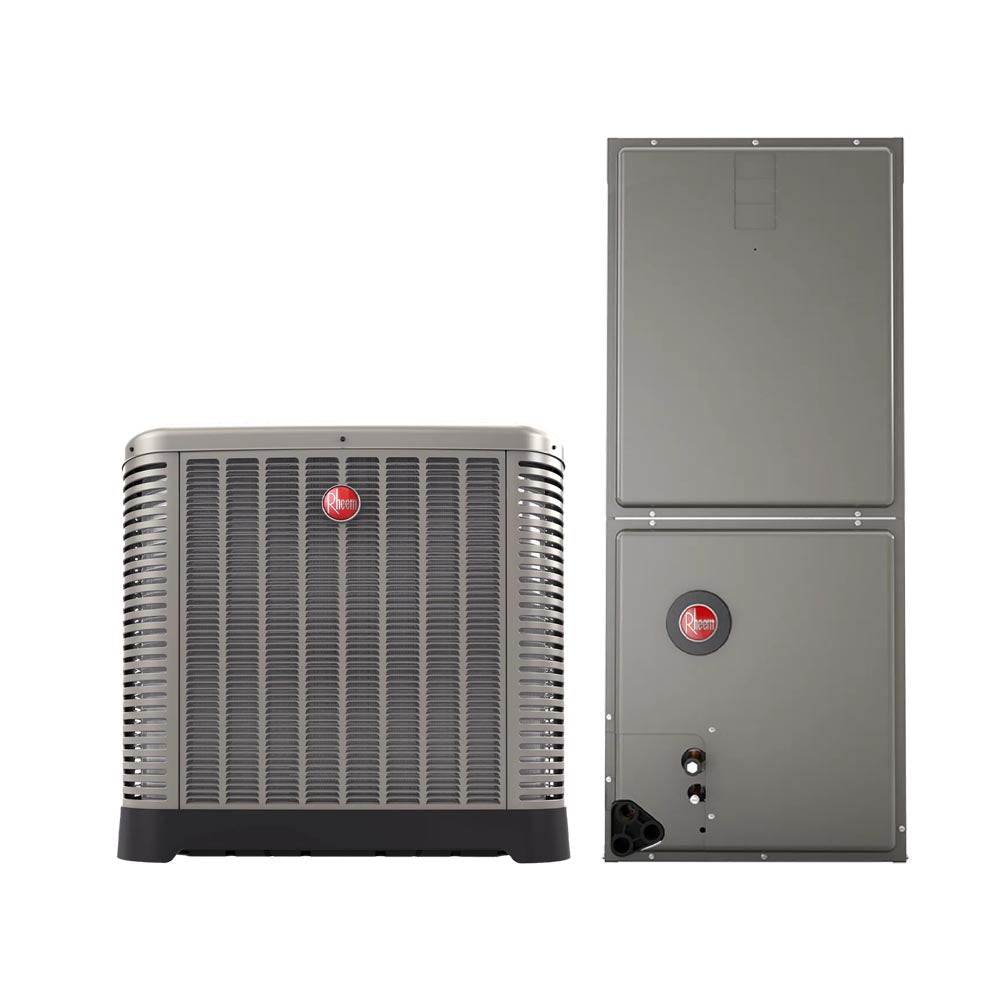

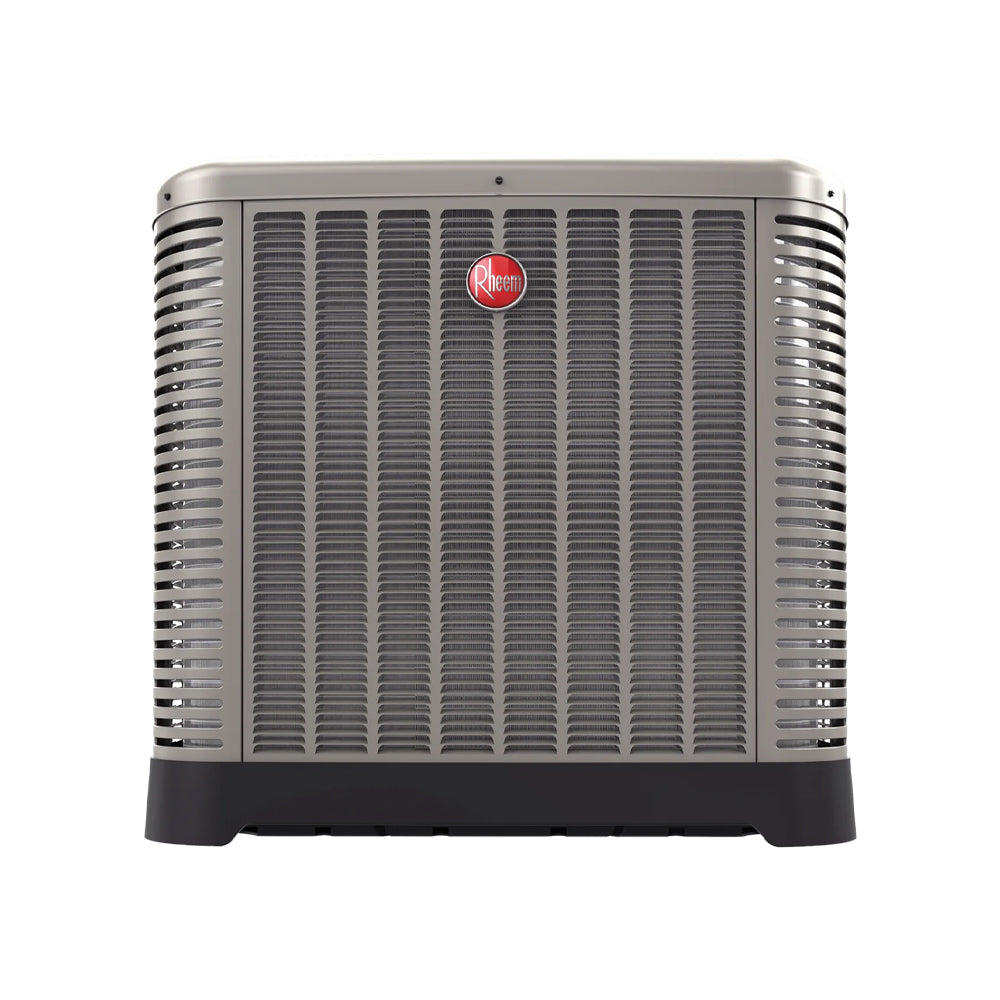

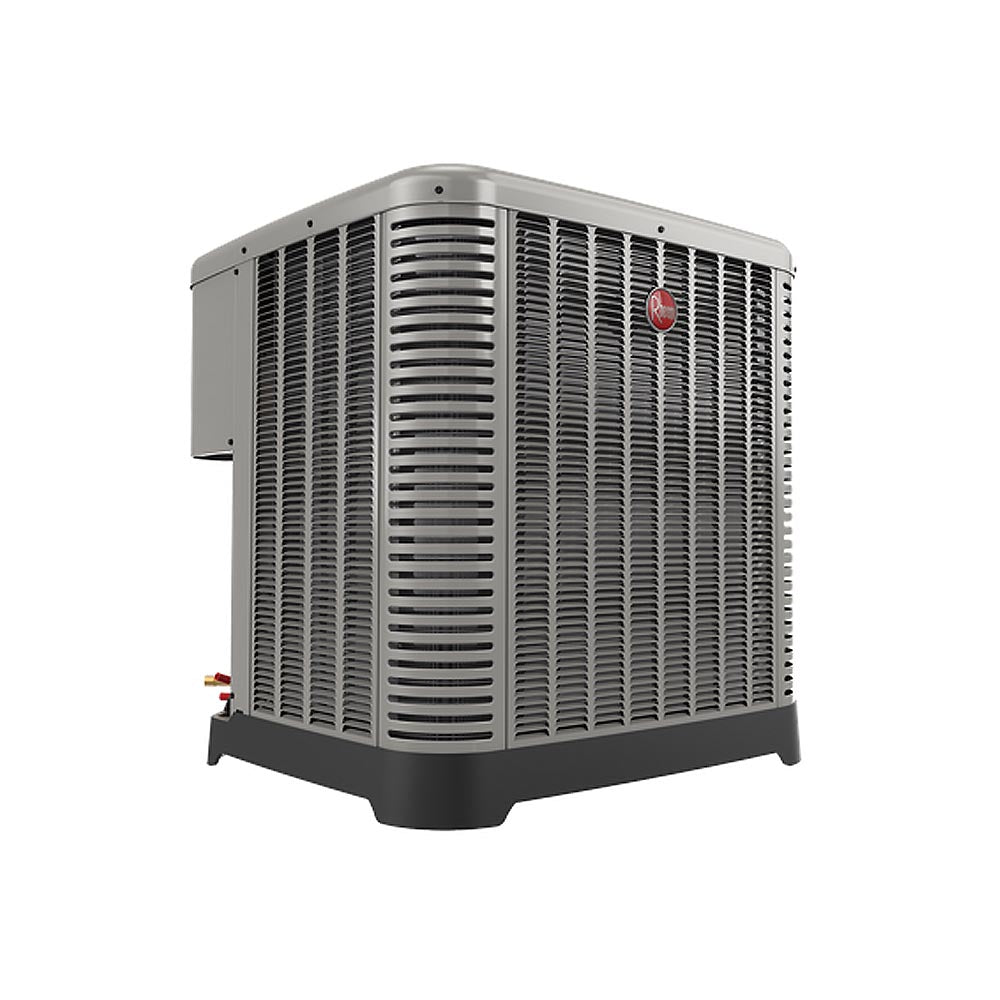

The Rheem Endeavor RA16AY Air Conditioner Condenser can deliver cool, money-saving indoor comfort year after year to your home. This 5 Ton, 16 SEER2 unit utilizes two-stage cooling technology to provide enhanced indoor comfort by operating at a lower, more efficient speed for the majority of the time. This specialized operation provides superior humidity control and more consistent temperatures compared to traditional single-stage systems. Choose from the Rheem Endeavor line for a cooling solution that offers premium reliability and high-efficiency performance.

Standard Features:

• Two-Stage Compressor: Offers precise cooling capacity to match your home's demand for better efficiency and comfort
• PlusOne® Diagnostics: Industry-exclusive 7-segment LED display provides easy-to-read system status and troubleshooting
• PlusOne® Expanded Valve Space: 3"-4"-5" service valve space provides a minimum working area of 27-square inches for easier access
• PlusOne® Triple Service Access: Features a 15-inch wide corner service access and two-fastener removable corner post for faster maintenance
• EcoNet® Enabled: Designed to communicate with the EcoNet Smart Thermostat to optimize system performance and efficiency
• High-Efficiency Coil: Built with aluminum fins and copper tubing for optimized heat transfer and durability
• Quiet Operation: Features a two-stage compressor and advanced fan blade design to minimize outdoor noise levels
• Modern Refrigerant Standards: Engineered to be compatible with the latest industry-standard low-GWP refrigerants

Cabinet Features:

• Curved Louver Panels: Protects the internal coil while offering a sleek, modern aesthetic and structural strength
• One-Piece Drawn Base Pan: Features a specialized design that keeps the compressor and electrical components off the ground to prevent corrosion
• Heavy-Gauge Steel Cabinet: Constructed with a durable baked-on powder-paint finish that exceeds 1000-hour salt spray requirements
• Enhanced Coil Protection: Full-wrap louvered panels prevent damage from yard debris and harsh weather conditions

The Rheem RH2TY Air Handler with a COnstant Torque ECM Motor comes with a versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications. It includes a factory-installed indoor coil. Its sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.

Standard Features:

• Quiet Operation: Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics
• Aluminum Indoor Coil Design: Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
• Versatile 4-Way Convertible Compact Design: Allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces
• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility
• Field Installed Auxiliary Heater Kits: Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
• Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants — with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
• PlusOne Refrigerant Detection System: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation — if excess refrigerant is detected
