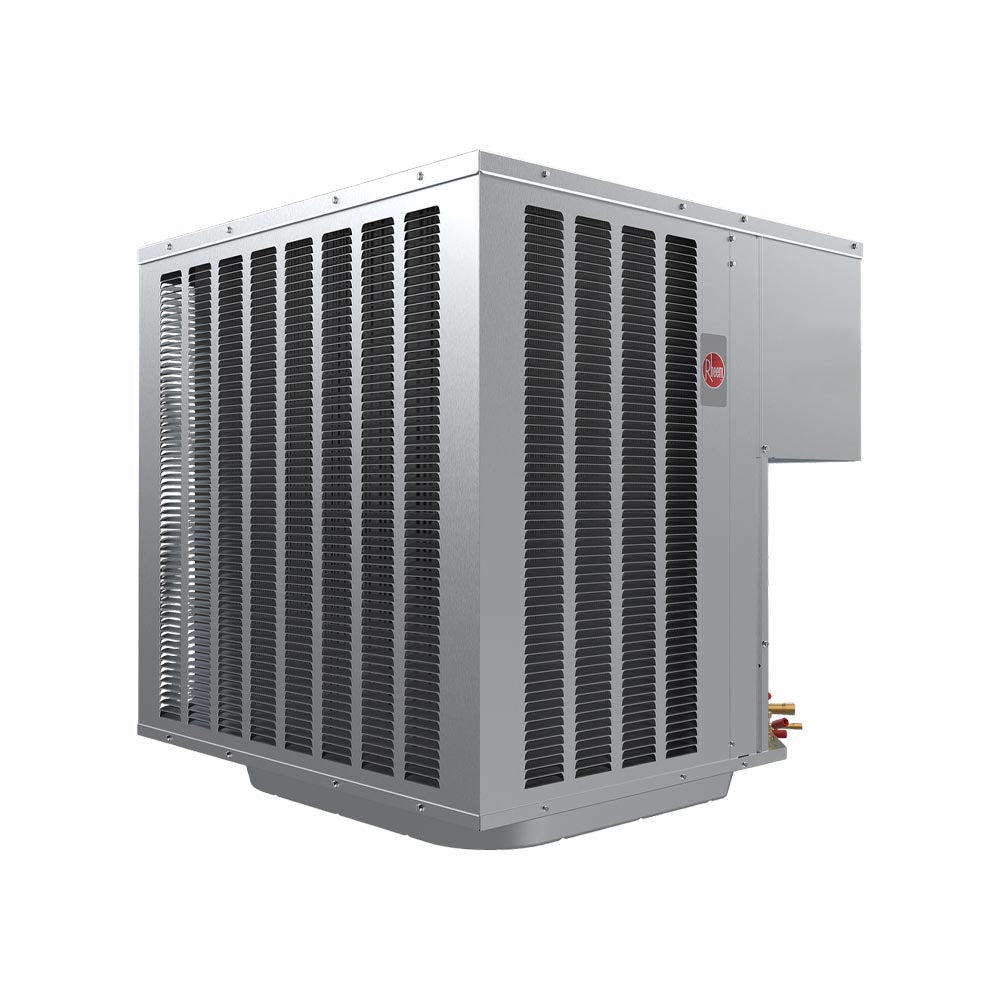

Rheem Select 2.5 Ton 14.3 SEER2 R-454B Heat Pump Condenser
Rheem Select 2.5 Ton 14.3 SEER2 R-454B Heat Pump Condenser
Model: WP14AY30AJ2NA
Couldn't load pickup availability
The Rheem Select WP14AY Series Heat Pump Condenser delivers reliable, energy-efficient heating and cooling for year-round indoor comfort. Designed with modern performance and optimized airflow, this system provides consistent temperature control while reducing energy consumption.
This specific model features a 2.5-ton capacity, engineered to efficiently balance the heating and cooling demands of medium-sized living areas.
Standard Features:
- High-efficiency 14.3 SEER2 performance for energy savings
- Eco-friendly R-454B refrigerant with lower environmental impact
- Durable scroll compressor for reliable operation
- Factory-installed filter drier for system protection
- Enhanced coil design for improved heat transfer
- Quiet operation with optimized fan and motor design
- Service-friendly access panels for easier maintenance
- Corrosion-resistant cabinet for long-lasting durability
Cabinet Features:
- Heavy-gauge steel cabinet with powder-coated finish
- Weather-resistant construction for outdoor installation
- Compact footprint for flexible placement
- Protective grille design for coil safety
| Model Number (s) | WP14AY30AJ2NA |
| Brand | Rheem Select |
| Type | Heat Pump |
| Ton | 2.5 Ton |
| SEER | 14.3 |
| Cooling Btu | 28600 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 72 |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 10 (If Registered as a System Only) |
| UPC # | 633190305336 |
| Heating Btu | 28000 |
| Amp(s) | 30 |
| Voltage | 208/230V |
| Maximum CFM | 3391 |
| Heating Stage(s) | 2 |
| Total Shipping Weight (lbs.) | 188 |
| Height (Inches) | 27.17 |
| Width (Inches) | 33.655 |
| Depth (Inches) | 33.655 |
| Category | Heat Pumps |
| HSPF | 7.5 |
| Compressor Warranty (Years) | 10 (If Registered as a System Only) |
| UPC # | 633190305336 |
| Heating Btu | 28000 |
| Amp(s) | 30 |
| Voltage | 208/230V |
| Maximum CFM | 3391 |
| Heating Stage(s) | 2 |
| Total Shipping Weight (lbs.) | 188 |
| Height (Inches) | 27.17 |
| Width (Inches) | 33.655 |
| Depth (Inches) | 33.655 |
| Category | Heat Pumps |
| HSPF | 7.5 |
