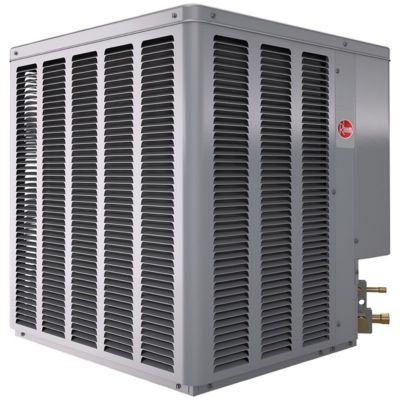

Rheem Select Endeavor 1.5 Ton 14.3 SEER2 2-Stage Heat Pump Condenser
Rheem Select Endeavor 1.5 Ton 14.3 SEER2 2-Stage Heat Pump Condenser
Model: WP14AZ18AJ2NA
The Rheem Select WP14AZ Heat Pump offers the solid technology and energy-saving performance you've come to expect from Rheem Select. It's also quiet, so you won't give your indoor home comfort a second thought. Our Classic Series includes features that help fight corrosion, reduce leaks and enhance the overall strength of your air conditioner so you can be confident in the way it performs. A smart, efficient design makes the Rheem Select Air Conditioner one of your best options for staying cool inside. Each new unit includes a generous list of features that work together to bring you quiet, efficient and reliable indoor comfort.
Standard Features:
- Swept Wing Fan Technology1: Features quieter operation and improved unit acoustics
- PlusOne® Expanded Valve Space: 3 in. – 4 in. – 5 in. service valve space—provides a minimum working area of 27-square inches for easier access
- PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels—makes repairs easier and faster
- Two-Stage Scroll Compressor2: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
- Inverted Reversing Valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
Cabinet Features:
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- Powder coat paint system - for a long lasting professional finish
- Modern cabinet aesthetics - increased curb appeal with visually appealing design
- Curved louver panels - provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- Optimized fan orifice - optimizes airflow and reduces unit sound
- Rust resistant screws - confirmed through 1500-hour salt spray testing
| Model Number (s) | WP14AZ18AJ2NA |
| Brand | Rheem Select |
| Type | Heat Pump |
| Ton | 1.5 Ton |
| SEER | 14.3 |
| Cooling Btu | 18,800 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 75 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 703158742968 |
| Heating Btu | 17,000 |
| Amp(s) | 15 |
| Maximum CFM | 1,572 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 152 |
| Height (Inches) | 25 |
| Width (Inches) | 29 3/4 |
| Depth (Inches) | 29 3/4 |
| Category | Heat Pumps |
| HSPF | 8.5 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 703158742968 |
| Heating Btu | 17,000 |
| Amp(s) | 15 |
| Maximum CFM | 1,572 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 152 |
| Height (Inches) | 25 |
| Width (Inches) | 29 3/4 |
| Depth (Inches) | 29 3/4 |
| Category | Heat Pumps |
| HSPF | 8.5 |
