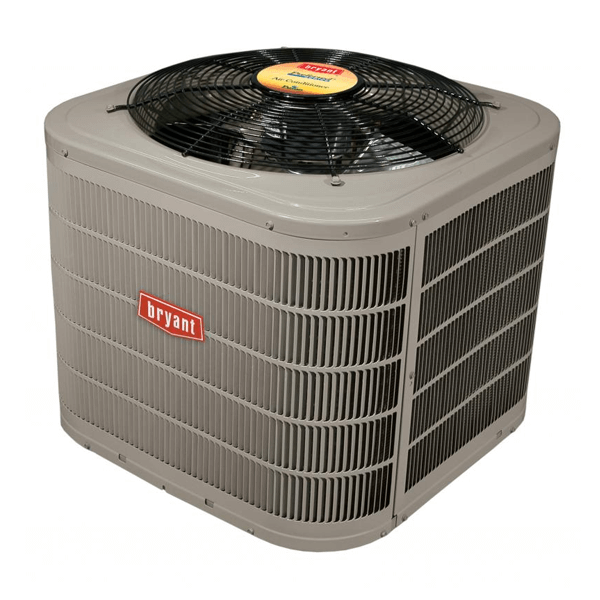

3.5 Ton 16 Seer Bryant Air Conditioner Condenser
3.5 Ton 16 Seer Bryant Air Conditioner Condenser
Model: 126BNA042000
The Bryant 126BNA Condensers with Puron refrigerant provide a collection of features unmatched by any other family of equipment. The 126B has been designed utilizing Bryant's Puron refrigerant. The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth's ozone layer.
Standard Features:
- 14 -16.5 SEER / 11.5 - 13.5 EER
- Microtube Technology refrigeration system
- Sound level as low as 72 dBA
- Compressor sound blanket standard
- System supports thermidistat or standard thermostat controls
- Puron refrigerant − environmentally sound, won't deplete the ozone layer and low lifetime servce cost.
- Scroll compressor
- Internal pressure relief valve
- Internal thermal overload
- Filter drier
- High and low pressure switches
- Balanced refrigeration system for maximum reliability
- Long-line - up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)
- Low ambient (down to -20F/-28.9C)) with accessory kit
Cabinet Features:
- DuraGuard Plus protection package
- Solid, durable sheet metal construction
- Louvered coil guard
- Baked−on, complete outer coverage, powder paint
| Model Number (s) | 126BNA042000 |
| Brand | Bryant |
| Type | Air Conditioning |
| Ton | 3.5 Ton |
| SEER | 16 |
| Cooling Btu | 42,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 74 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 646341705206 |
| Amp(s) | 40 |
| Voltage | 208/230V |
| Maximum CFM | 3,810 |
| Total Shipping Weight (lbs.) | 281 |
| Height (Inches) | 39 1/8 |
| Width (Inches) | 35 |
| Depth (Inches) | 35 |
| Category | Condensers |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 646341705206 |
| Amp(s) | 40 |
| Voltage | 208/230V |
| Maximum CFM | 3,810 |
| Total Shipping Weight (lbs.) | 281 |
| Height (Inches) | 39 1/8 |
| Width (Inches) | 35 |
| Depth (Inches) | 35 |
| Category | Condensers |
