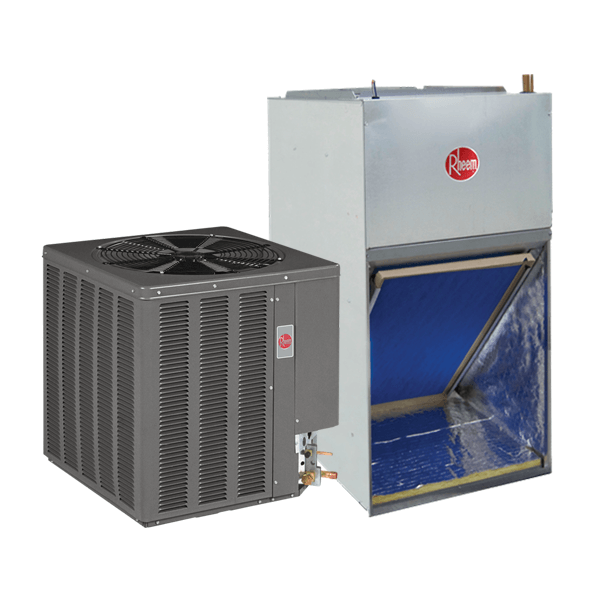

The Rheem 13PJL Heat Pump offers comfort and dependability for single, multi-family and light commercial applications. Energy-Efficient Cooling and Heating Legendary Scroll compressor technology delivers proven durability and enhanced efficiencies, providing continuous comfort with less energy usage. Your energy savings are further increased by a cooling and heating efficiency rating of up to 14 SEER and 8.2 HSPF. Low-Cost Maintenance Convenient access to internal components means contractors can make most adjustments without shutting the entire system down, keeping their time and your cost to a minimum.

Energy-Efficient Cooling and Heating  - Legendary Scroll compressor technology delivers proven durability and enhanced efficiencies, providing continuous comfort with less energy usage. Your energy savings are further increased by a cooling and heating efficiency rating of up to 14 SEER and 8.2 HSPF. Low-Cost Maintenance Convenient access to internal components means contractors can make most adjustments without shutting the entire system down, keeping their time and your cost to a minimum.

Low-Cost Maintenance - Convenient access to internal components means contractors can make most adjustments without shutting the entire system down, keeping their time and your cost to a minimum.

Standard Features:

• Coils constructed with copper tubing and enhanced aluminum fins.
• Includes factory installed low-pressure control.
• Strong, attractive cabinet louvered design protects the coil from damage.
• Expansion Valves with Internal Check Valve - Provides for quieter refrigerant metering.
• Demand Defrost Control
• Non-Cycling Reversing Valve
• Hot Gas Muffler
• Service Valves
• Grille/motor mount for quiet fan operation.
• Easily accessible control box.
• Bi-Directional Filter Drier (shipped - not installed)
• Certified and rated under A.R.I. Standard 240.
• UL listed

The Rheem RHBL Air Handler is designed to meet the needs of a variety of systems. This air handler is suitable for R-22 applications and can be used for replacingan old unit or for new construction. Easy Installation The Rheem RHBL Air Handler includes wall hanging brackets, designed to make installation a breeze. AHRI and UL certifications help guarantee that, post-installation, the unit operates as advertised. Efficient Heating & Cooling With the Rheem RHBL Air Handler, you have the choice between a higher or lower efficiency unit. However, both options deliver comfortable cooling while still helping to manage the household budget.

Standard Features:

• X-13 (ECM) Motor Efficiencies up to 16 SEER
• Front or Bottom Return
• Flow Check Piston for cooling or heat pump operation
• Wall-hanging brackets
• Built in Filter Rack
• Suitable for R-410A or R-22 Refrigerants (RHAL Only)
• AHRI Certified
• UL Certified
• Molex Plug Connections for field installed heater kits
• Dual Voltage Direct Drive Blower with multi-speed motor
• Thermoplastic Drain Pan with bottom primary and secondary connections
• Optional Decorative Grill for front return applications
• Optional Factory Installed Condensate Float Switch which shuts off the outdoor unit in event the condensate pan becomes clogged
• The most compact unit design available, all standard heat airhandler models only 36, 915 mm
• Rugged wall steel cabinet construction, designed for added strength and versatility
• 1.0 foil faced insulation for excellent thermal and sound performance
• Four leg blower motor mount
• Traditional open wire element design for heat applications.
• Indoor coil design provides low air side pressure drop, highperformance and extremely compact size
• Coils are constructed of aluminum fins and internally groovedcopper tubing
• Molded polymer corrosion resistant condensate drain pan isprovided for all indoor coils
• Connection point for high voltage wiring is inside the air handler cabinet. Low voltage connection is made on the outside of the air handler cabinet
• Concentric knockouts are provided for power connection to cabinet. Installer may pull desired hole size up to 13/8 inch inches, 35 mm, for 7/8 inch, 22 mm conduit
