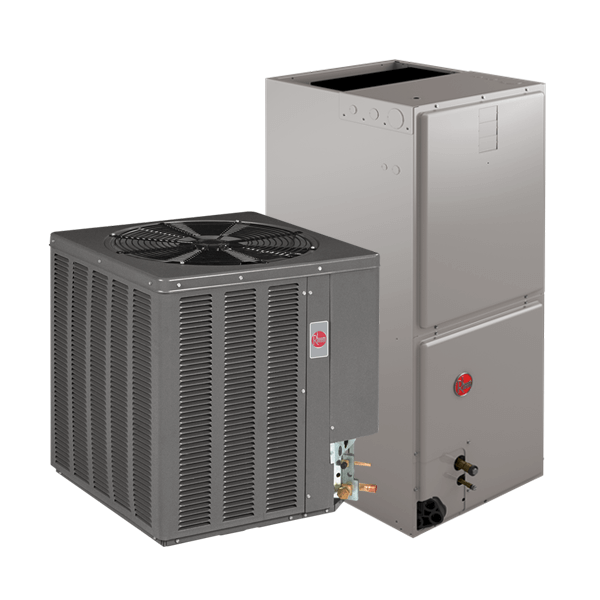

The Rheem 14AJM Condenser is designed to give you proven quality and lasting comfort from a name you trust and a price you'll love.

With the Rheem Value Series Air Conditioner, you get a higher level of comfort that every lifestyle deserves, and every budget can handle.

Standard Features:

• Painted louvered steel cabinet
• Easily accessible control box
• Condenser coils constructed with copper tubing and enhanced aluminum fins
• Grille/Motor mount for quiet fan operation
• Filter Drier (shipped not installed)

Applications:

• Outdoor condensing unit designed for ground level or rooftop installations.
• These units offer comfort and dependability for single, multi-family and light commercial applications.

The Rheem RH1P Air Handler with a PSC Motor comes with a versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications. It includes a factory-installed indoor coil. Its sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.

Standard Features:

• The most compact unit design available, all standard heat air handler models only 42 1/2 to 55 1/2 inches [1079 to 1409 mm] high.
• Attractive pre-painted cabinet exterior.
• Rugged wall steel cabinet construction, designed for added strength and versatility.
• 1.0 foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance.
• Four leg blower motor mount.
• Blower housing with controls, motor and blower. Slide out design for service and maintenance convenience.
• Traditional open wire element design for heat applications.
• Field convertible for vertical downflow, horizontal left-hand or right-hand air supply.
• 3 combustible floor base accessories fit all model sizes when required for downflow installations on combustible floors.
• Indoor coil design provides low air side pressure drop, high performance and extremely compact size.
• Expansion valve on indoor coil provides for operation with air conditioning.

Cabinet Features:

• Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing.
• Coils are tested at the factory with an extensive refrigerant leak check.
• Coils have copper sweat refrigerant connections.
• Coils utilize chatleff metering device connections.
• Molded polymer corrosion resistant condensate drain pan is provided on all indoor coils.
• Supply duct flanges provided as standard on air handler cabinet.
• Provisions for field electrical, connections available from either side or top of the air handler cabinet.
• Connection point for high voltage wiring is inside the air handler cabinet.
• Low voltage connection is made on the outside of the air handler cabinet.
• Concentric knockouts are provided for power connection to cabinet.
• Installer may pull desired hole size up to 2 inches, 51 mm, for 1 1/2 inch, 38 mm conduit.
• Front refrigerant and drain connections.
