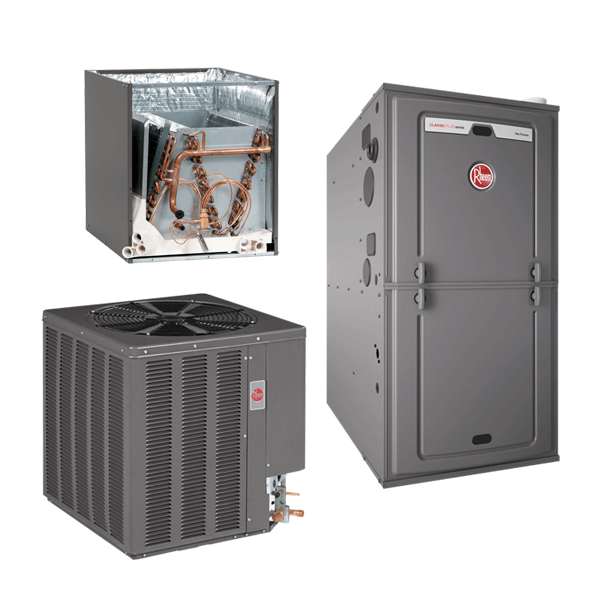

The Rheem 16AJL Air Conditioner was designed with performance in mind. These units offer comfort, energy conservation and dependability for single, multi-family and light commercial applications. The Rheem Value Series 16AJL Air Conditioner units are the result of an ongoing development program for improved efficiencies. With system efficiency as high as 17 SEER, these units continue a tradition of delivering high efficiency. These units also contain the most advanced alternate refrigerant which contains no chlorofluorocarbons (CFCs), or hydro-chlorofluorocarbons (HCFCs), or other compounds that may leak from air conditioning systems and potentially harm the protective ozone layer of the Earth's atmosphere.

Standard Features:

• Outdoor air conditioner designed for ground-level or rooftop installations.
• Painted louvered steel cabinet
• Easily accessible control box
• Condenser coils constructed with copper tubing and enhanced aluminum fins
• Grille/Motor mount for quiet fan operation
• Bi-Directional Filter Drier (shipped - not installed)
• Limited Warranty - Ten (10) years (conditional) compressor, Five (5) years parts.

Cabinet Features:

• Features GE's new X-13 motor, which provides enhanced SEER performance with most Rheem outdoor units.
• Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
• Nominal airflow up to 1.0 external static pressure. Factory-installed high-efficiency indoor coil.
• Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
• Features Earth-friendly R-410A refrigerant.
• Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
• Outdoor air conditioner designed for ground-level or rooftop installations. These units offer comfort and dependability for single, multi-family and light commercial applications.
• 10 easy-to-read diagnostic alert codes
• Painted louvered steel cabinet
• Easily accessible control
• Condenser coils constructed with copper tubing and enhanced aluminum fins (2-4 Tons)/MicroChannel (5 Ton)
• Grille/Motor mount for quiet fan operation
• Filter Drier (shipped)

The Rheem RCFL Evaporator Coils are designed for use with Rheem outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.58 kW].

Standard Features:

• Constructed of aluminum fins bonded to internally grooved copper tubing.
• Coils are tested at the factory with an extensive refrigerant leak check.
• Coils have sweat refrigerant connections.
• Ideally suited for new installations or add on air conditioning.
• Feature two sets of 3/4 [14.1 mm] N.P.T. Condensate drain connections for ease of connection.
• Coils are A.R.I. certified for system application with variety of Rheem outdoor units.
• Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material.
• Compatible with Germicidal Light System (UV resistant)
• Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right.
• Unique drain pan design maximizes application flexibility and condensate removal.
• Universal Duct Flanges are included with all coil models.

The Rheem R96V Furnace is EcoNet™ Enabled and ENERGY STAR® qualified, offering one of the highest efficiencies available today. Monthly utility bills go down, and you stay comfortable all year long.

The Rheem R96V Prestige™ Series Gas Furnace was designed using our 360+1 process, which means every detail of the product is meticulously evaluated from every angle. We consider the work that goes into installing and servicing our products, as well as how we can deliver the very best homeowner experience. And then we take it a step further. That’s 360+1. And that’s why you can count on your gas furnace to bring you and your family years of comfort.

Standard Features:

• 96% residential gas furnace CSA certified
• 4 way multi-poise design
• Two stages of operation to save energy and maintain optimal comfort level.
• Variable speed blower motor technology provides ultimate humidity control, quieter sound levels, and year round energy savings.
• EcoNet enabled HVAC Product
• PlusOne Diagnostics 7-Segment LED all units
• PlusOne Ignition System DSI for reliability and longevity
• PlusOne Water Management System with patented BlockedDrain Sensor
• Heat exchanger is removable for improved serviceability.Aluminized steel primary and stainless steel secondary construction provide maximum corrosion resistance and thermal fatigue reliability.

Cabinet Features:

• Low profile34 inch inches cabinet ideal for space constrained installations.
• Blower Shelf design serviceable in all furnace orientations
• Pre marked hoses insures proper system drainage
• Vent with 2 inch or 3 inch PVC
• Replaceable Collector box
• Hemmed edges on cabinet and doors
• Quarter turn fasteners for tool-less access
• Integrated control boards feature dip switches for easy system set up
• Self-priming condensate trap
• Solid bottom included
• Compatible with single or two-stage thermostats. For optimal performance a two stage thermostat is recommended.
