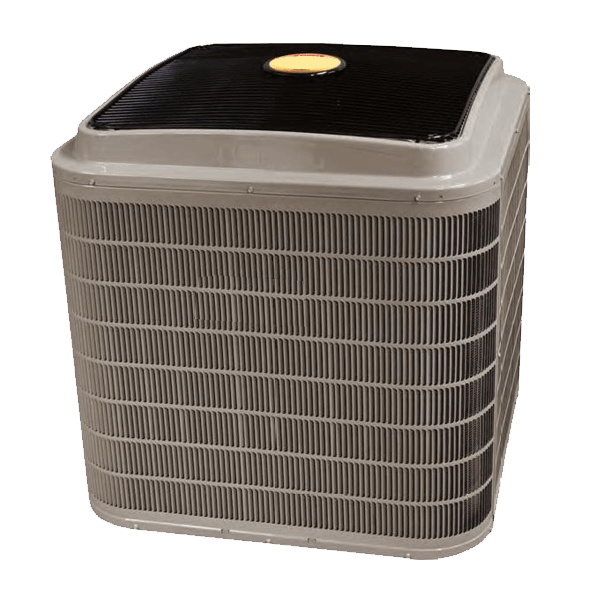

1.5 Ton 16 Seer Bryant Air Conditioner Condenser
1.5 Ton 16 Seer Bryant Air Conditioner Condenser
Model: 186BNA018000A
The Bryant 186B Air Conditioner with Puron refrigerant provides a collection of features unmatched by any other family of equipment. The 186B has been designed utilizing Bryant's Puron refrigerant. The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth's ozone layer. This product has been designed and manufactured to meet Energy Star criteria for energy efficiency when matched with appropriate coil components. Refer to the combination ratings in the Product Data for system combinations that meet Energy Star guidelines.
Standard Features:
- Efficiency 14 - 16 SEER / 11.0 - 13.5 EER
- Microtube Technology refrigeration system
- Indoor air quality accessories available
- Sound level as low as 68 dBA
- Compressor sound blanket standard
- System supports Evolution Control or standard thermostat controls
- Puron refrigerant - environmentally sound, won't deplete the ozone layer and low lifetime servce cost
- Scroll compressor
- Internal pressure relief valve
- Internal thermal overload
- Filter drier
- High and low pressure switches
- Balanced refrigeration system for maximum reliability
Cabinet Features:
- DuraGuard Plust protection package
- Solid, durable sheet metal construction
- Louvered coil guard
- Baked-on, complete outer coverage, powder paint
- Long-line up to 250 feet, 76.20 m, total equivalent length, up to 200 feet, 60.96 m, condenser above evaporator, or up to 80 ft. 24.38 m, evaporator above condenser
- Low ambient down to -20F/-28.9C with accessory kit
| Model Number (s) | 186BNA018000A |
| Brand | Bryant |
| Type | Air Conditioning |
| Ton | 1.5 Ton |
| SEER | 16 |
| Cooling Btu | 18,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 68 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 646341716035 |
| Amp(s) | 20 |
| Voltage | 208/230V |
| Maximum CFM | 2,233 |
| Total Shipping Weight (lbs.) | 214 |
| Height (Inches) | 28 11/16 |
| Width (Inches) | 31 3/16 |
| Depth (Inches) | 31 3/16 |
| Category | Condensers |
