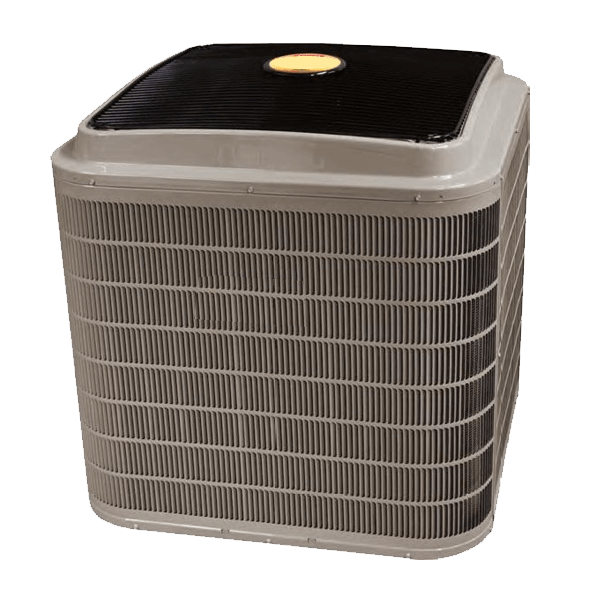

The Bryant 189B Air Conditioner offers high efficiency variable speed performance in a remarkably small cabinet and provides up to 19 SEER cooling efficiency. The variable speed inverter capacity control delivers up to 5 stages of operation for exceptional load matching, dehumidification and zoning performance. This product has been designed and manufactured to provide flexible system matching and work with a wide variety of indoor units and controls.

Standard Features:

• Energy Efficiency Up to 19 SEER / up to 12.5 EER
• Microtube Technology refrigeration system
• Sound level as low as 56 dBA in low-speed Silencer System II
• Soft start and smooth ramp to operating speeds
• Variable speed compressor operates at 5 stages with capacity range from as wide as 25-100%
• Air cooled Inverter variable speed drive
• System requires Evolution Connext Control with version 11 software or newer for 5 stage operation
• Ratings provided with 2-stage thermostats and suitable non-communicating indoor products for 2-stage operation
• Puron refrigerant environmentally sound, won't deplete the ozone layer and low lifetime service cost
• Front seating service valves
• Inverter control drives compressor and fan motor
• No control module attached to fan motor
• Evolution intelligence monitors critical system parameters
• Pressure equalizer valve for easy compressor starting
• High pressure switch
• Suction pressure transducer
• Compressor discharge temperature sensor
• Suction temperature sensor
• Filter drier, field installed
• Internal crankcase heater standard

Cabinet Features:

• 2 control wires to outdoor unit in complete Evolution system and Control
• Smaller and lighter than 2-stage units
• Minimum and Maximum adjustments with Evolution Connex Control
• Compatible with non-communicating thermostats
• Durability: DuraGuardt protection package
• Solid, Durable sheet metal construction
• Steel louver coil guard
• Baked-on, complete outer coverage, powder paint
• Line sets up to 100 ft (30.5 m) equivalent length
• No long-line accessories required
