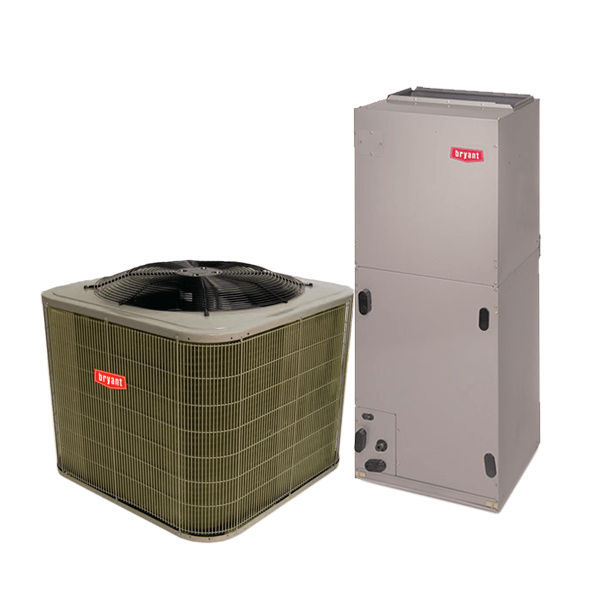

The Bryant 214D Heat Pumps with Puron refrigerant provide a collection of features unmatched by any other family of equipment. The 214D has been designed utilizing Bryant™s Puron refrigerant. The environmentally sound refrigerant allows consumers to make a responsible decision in the protection of the earth™s ozone layer. The Legacy heat pump provides low-cost all-season comfort, cooling your home in summer with its up to 15 SEER rating, then reversing when temperatures drop for low-cost electric heat. It adds up to year-round value.

Standard Features:

• Efficiency: 14 SEER
• Microtube Technology refrigeration system
• Indoor air quality accessories available
• Sound level as low as 69 dBA
• Sound levels as low as 68 dBA with accessory sound blanket
• System supports Thermidistat or standard thermostat controls
• Puron refrigerant-environmentally sound, won™t deplete the ozone layer and low lifetime service cost
• Scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• High pressure switch
• Loss of charge switch
• Filter drier
• Balanced refrigeration system for maximum reliability
• DuraGuardt protection package
• Solid, durable sheet metal construction
• Dense wire coil guard
• Baked-on powder paint
• Long line up to 250 feet, 76.20 m, total equivalent length, up to 200 feet, 60.96 m, condenser above evaporator, or up to 80 ft24.38 m, evaporator above condenser
• Low ambient, down to -20F/-28.9C, with accessory kit



The Bryant FB4C Air Handler has the proven technology of Bryant fan coil units with Puron refrigerant as well as vertical and horizontal applications. The design features contoured condensate pans with rugged drain connections, ensuring that little water is left in the unit at the end of the cooling duty cycle. The lack of standing condensate and corrosion free pans improves IAQ and product life, features homeowners appreciate. Standard features include grooved tubing and louvered fins. Coil circuiting has also been updated to make the most of all Bryant heat pumps and air conditioners. Units come with solid state fan controls, 1, 25mm thick insulation with R-value of 4.2, multi-speed motors, and fully-wet table coils. Units can accommodate factory and/or field-installed heaters from 3 to 30kW.It also should be noted that the unique cabinet design of these fan coils meet stringent regulations for cabinet air leakage a requirement of 2% cabinet leakage rate when tested at 1.0 inches ofstatic pressure. The FB4C fan coil design is loaded with popular features. These fan coils utilize the latest in electronic commutation motor ECM technology through the use of high efficiency, multi-tap ECM motors allowing reliable air delivery with increased static pressure. It comes in a pre-painted, taupe metallic, galvanized steel casing and a factory-supplied power plug for ease of installation. The FB4C unit is shipped with a factory-installed Teflon-ring piston FB4CNF, 018-048, or a Puron refrigerant TXV FB4CNF060, FB4CNP, 018-060.

Standard Features:

• Multi-tap ECM, electronic commutating motor motors all sizes
• Integrated motor controls, with 90-sec off TDR function, have replaced integrated circuit board
• Five available speed tags to meet a wide range of applications
• Large, grooved tube, louvered fin coils
• Efficient, quiet, time-tested blower housings and diffusers
• Sturdy, drainable condensate pans
• Cabinet construction features innovations designed to prevent cabinet sweating
• Tested for condensate disposal in much tougher conditions than Air Conditioning and Refrigeration Institute requirements
• Super-thick R-4.2 insulation with vapor barrier
• Pre-painted galvanized steel cabinet taupe metallic
• Cabinet design meets stringent regulations for 2% cabinet leakage rate when tested at 1.0 inches static pressure
• Installation-flexible, multipoise units
• Horizontal hanging provisions on cabinet
• No tools required to access filter
• Newly improved filter rack area filter door insulation added for improved air seal
• Factory-installed heater packages available on select models, 5- through 15kW)
• 3 through 30kW accessory heaters field installed
• Factory-supplied power plug
• Easy plug-in provisions for heater installation
• Entry options for high and low voltage wiring hook-up
• Leak-preventing sweat connections
• Puron refrigeration factory-installed Teflon-ring pistons on all FB4CNF, 018-048 coils
• Thermostatic expansion valve, TXV, on all FB4CNP coils and FB4CNF060
• Designed for manufactured housing applications
• Factory-installed heater packages available on select models
