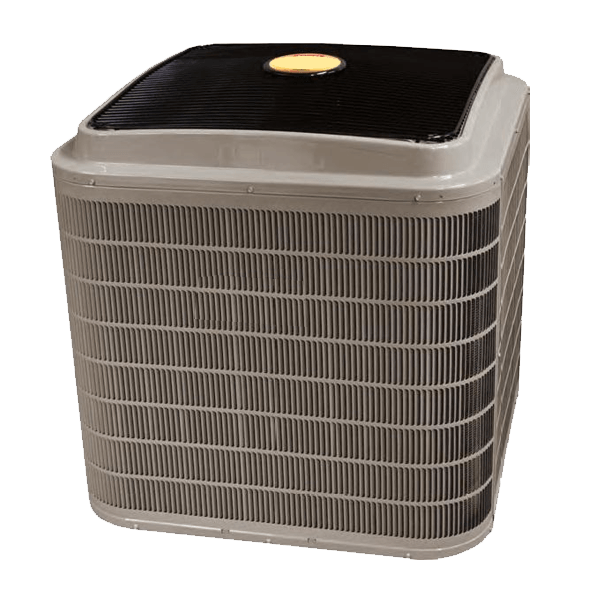

3 Ton 15 Seer Bryant Preferred Heat Pump Condenser
3 Ton 15 Seer Bryant Preferred Heat Pump Condenser
Model: 225BNA036000
The Bryant 225B Heat Pump with Puron Refrigerant provides a collection of features unmatched by any other family of equipment. The 225B has been designed utilizing Bryant's Puron refrigerant. The environmentally sound refrigerant allows consumers to make a responsible decision in the protection of the earth's ozone layer. As an Energy Starr Partner, Bryant Heating & Cooling Systems has determined that this product meets the Energy Star guidelines for energy efficiency. The Bryant Model 225B provides worry-free comfort that won't deplete the Earth's ozone layer. It delivers savings on your energy bills with up to 16 SEER cooling efficiency and up to 9.0 HSPF heating efficiency. Designed, built and backed by the most trusted name in the business, and installed by your trusted and professional Bryant dealer, the Model 225B Heat Pump with Puron refrigerant provides comfort you can enjoy season after season.
Standard Features:
- Efficiency - 15.3 SEER/ 11.0 - 13.0 EER/ 7.7 - 9.0 HSPF(Nominal)
- Microtube Technology refrigeration system
- Indoor air quality accessories available
- Sound - Sound level as low as 68 dBA
- Comfort - System supports Thermidistat or standard thermostat controls
- Reliability of Puron refrigerant - environmentally sound, won't deplete the ozone layer and low lifetime service cost.
- Front - seating service valves
- Scroll compressor
- Internal pressure relief valve
- Internal thermal overload
- High pressure switch
- Loss of charge switch
- Filter drier
- Balanced refrigeration system for maximum reliability
- Durability DuraGuard protection package
- Solid, durable sheet metal construction
- Steel louver coil guard
- Baked-on, complete coverage, powder paint
- Long line Applications
- up to 250 feet (76.20 m) total equivalent length
- up to 200 feet (60.96 m) condenser above evaporator
- up to 80 ft. (24.38 m) evaporator above condenser
- Low ambient (down to -20_F/-28.9_C) with accessory kit
| Model Number (s) | 225BNA036000 |
| Brand | Bryant |
| Type | Heat Pump |
| Ton | 3.0 Ton |
| SEER | 15 |
| Cooling Btu | 34,800 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 70 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 646341705299 |
| Heating Btu | 35,200 |
| Amp(s) | 35 |
| Voltage | 208/230V |
| Min. Operating Temp. (Degrees Farenheit) | -30 |
| Maximum CFM | 3,810 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 257 |
| Height (Inches) | 35 3/4 |
| Width (Inches) | 35 |
| Depth (Inches) | 35 |
| Category | Heat Pumps |
| HSPF | 8.70 |
