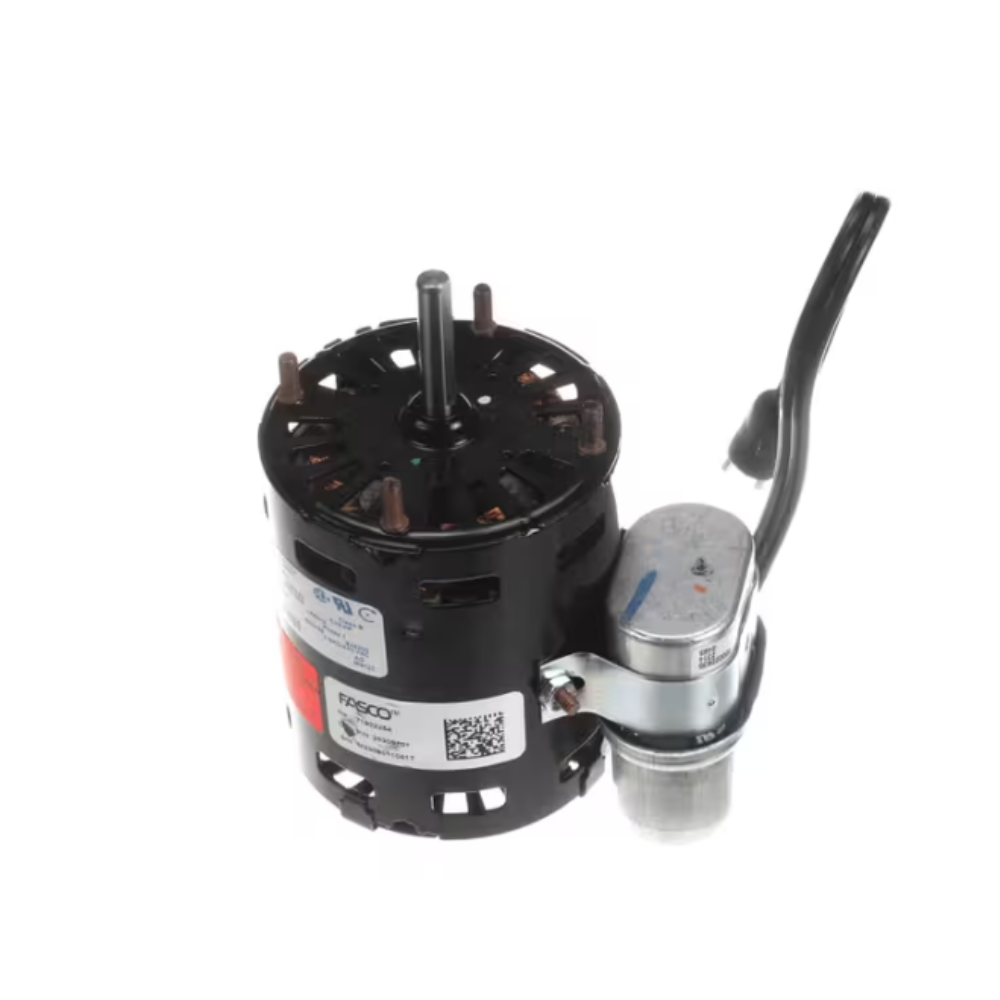

The Heatcraft 25308701S Condenser Fan Motor is a 460V, 50/60Hz single-phase motor designed for compatible Heatcraft commercial refrigeration condensing equipment. Featuring a 1/15 HP output and 1650 RPM operating speed, this motor helps move air across the condenser coil to support effective heat rejection and dependable refrigeration system performance.

Standard Features:

• 460V electrical rating
• 50/60Hz operating frequency
• Single-phase motor configuration
• 1/15 HP motor output
• 1650 RPM rated operating speed
• Designed for compatible Heatcraft condenser fan applications
• Supports efficient airflow across the condenser coil

Application and Service Features:

• Helps restore condenser airflow and heat-rejection performance
• Suitable for compatible commercial condensing units
• Voltage, phase, horsepower, speed, and rotation should be verified
• Motor shaft and mounting dimensions should match the existing assembly
• Condenser fan blade and guard should be inspected during replacement
• Power should be disconnected before installation or servicing
