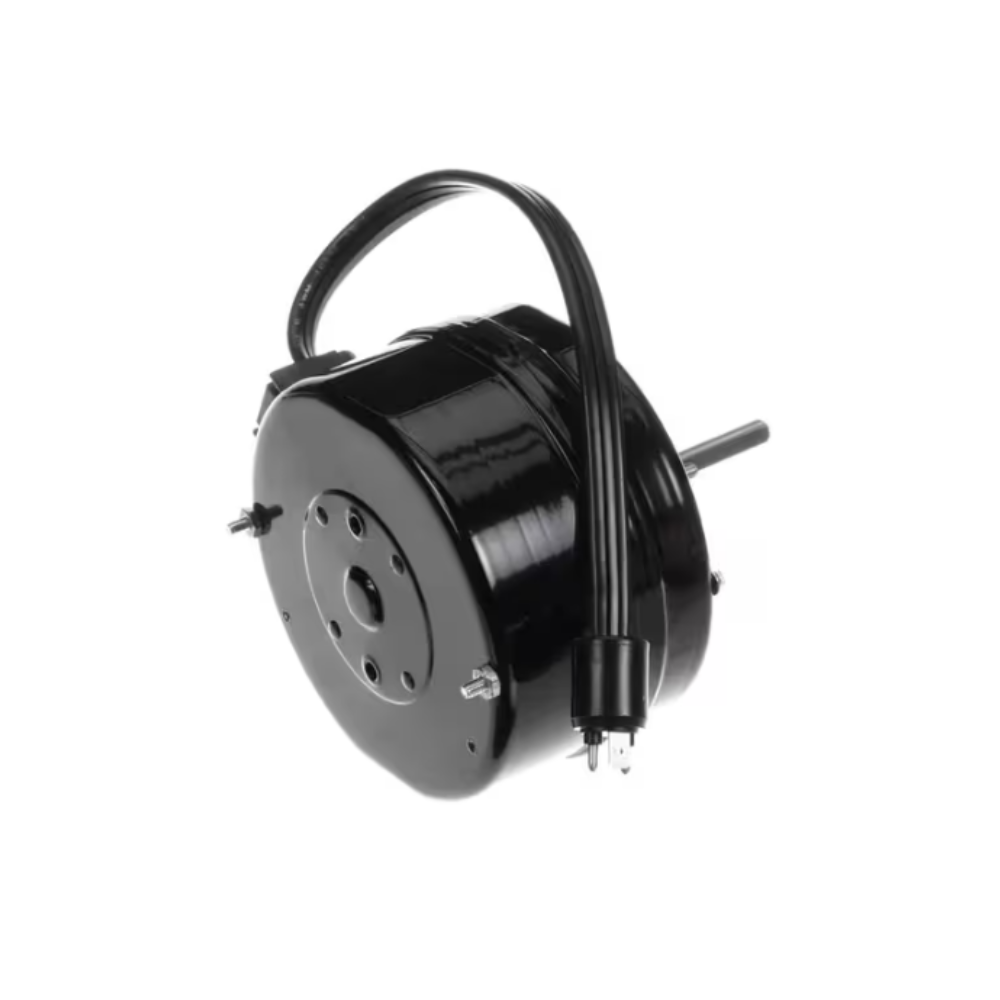

The Heatcraft 25312601S Evaporator Fan Motor is a 208/230V, 60Hz refrigeration motor designed to provide dependable airflow in compatible Heatcraft commercial unit coolers. Featuring a 1/20 HP rating, 850/1550 RPM operating speeds, and clockwise shaft-end rotation, this motor helps move air across the evaporator coil to support efficient heat transfer and consistent refrigerated-space temperatures.

Standard Features:

• 208/230V electrical rating
• 60Hz operating frequency
• 1/20 HP motor output
• 850/1550 RPM rated operating speeds
• Clockwise rotation when viewed from the shaft end
• Designed for compatible Heatcraft evaporator and unit cooler applications
• Supports consistent airflow across the refrigeration coil

Application and Service Features:

• Helps restore airflow when replacing a failed or weakened fan motor
• Suitable for cooler, freezer, and commercial unit cooler applications
• Supports efficient coil heat transfer and cabinet temperature distribution
• Voltage, speed, rotation, shaft, and mounting configuration should be verified
• Compatible fan blade and motor mounting hardware should be inspected during replacement
• Power should be disconnected before installation or servicing
