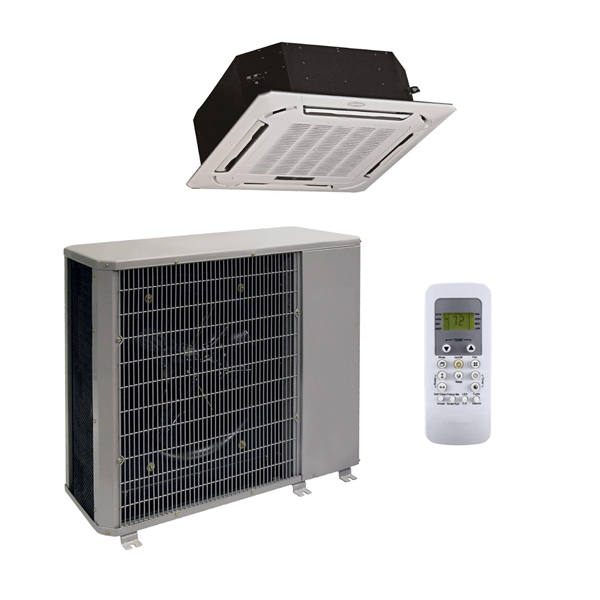

36,000 Btu 14 Seer 460V Carrier Single Zone Ductless Cassette Mini Split Heat Pump System
36,000 Btu 14 Seer 460V Carrier Single Zone Ductless Cassette Mini Split Heat Pump System
Model: 25HHA436A006 - 40MKQB34C-3 - 40MK-B01C-3110KHAVC0101AAA
The Carrier 25HHA Mini Split Heat Pump System with Puron refrigerant provide a collection of features unmatched by any other family ofequipment. The 25HHA4 has been designed utilizing Carrier’sPuron refrigerant. This environmentally sound refrigerant allowsyou to make a responsible decision in the protection of the earth’sozone layer.
Going ductless doesn’t involve going through a major renovation. Fact is, there’s very little mess at all. Nor does it mean sacrificing a room with a view to a bulky window unit. Instead, a ductless heat pump or air conditioner integrates neatly into the space. It’s mounted where it’s least obtrusive – and most effective at quietly and gently directing treated air to every corner of the room.
Standard Features:
- 14 - 15 SEER/11.5 - 12.5 EER/8.2 - 8.5 HSPF
- Sound Levels as low as 66 dBA
- Small footprint
- WeatherArmor cabinet
- Auto louver mode
- All steel cabinet construction
- Mesh coil guard
- Scroll compressor
- Factory-supplied filter drier
- High pressure switch
- Line lengths up to 250’ (76.2 m)
- Low ambient operation (down to -20 F/-28.9 C with low ambient accessories)
- Controls - Comes with wireless AND wired controller
| Model Number (s) | 25HHA436A006 - 40MKQB34C-3 - 40MK-B01C-3110KHAVC0101AAA |
| Brand | Carrier |
| Type | Heat Pump |
| SEER | 14 |
| Cooling Btu | 32,600 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 3-Phase |
| Decibel Level (dB) | 71 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 37 1/8 |
| Outdoor Unit Width (Inches) | 44 1/2 |
| Outdoor Unit Depth (Inches) | 17 1/16 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 658515745086 |
| Amp(s) | 15 |
| Voltage | 460V |
| Zones | 1 - Zone |
| Maximum CFM | 2,615 |
| Total Shipping Weight (lbs.) | 306 |
| Indoor Unit Depth (Inches) | 33 1/10 |
| Indoor Unit Width (Inches) | 11 3/10 |
| Indoor Unit Height (Inches) | 33 1/10 |
