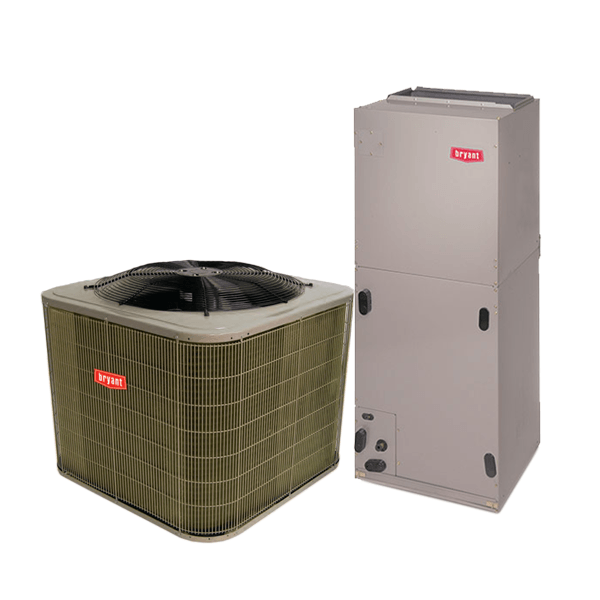

The Bryant 286B Heat Pump with Puron Refrigerant, Coastal Version, provides a collection of features unmatched by any other family of equipment. The 286B has been designed utilizing Bryant's Puron refrigerant. The environmentally sound refrigerant allows consumers to make a responsible decision in the protection of the earth's ozone layer. As an Energy Star Partner, Bryant Heating & Cooling Systems has determined that this product meets the Energy Star guidelines for energy efficiency. The Bryant Model 286B provides worry-free comfort that won't deplete the Earth's ozone layer. It delivers savings on your energy bills with up to 16 SEER cooling efficiency and up to 9.0 HSPF heating efficiency. Designed, built and backed by the most trusted name in the business, and installed by your trusted and professional Bryant dealer, the Model 286B Heat Pump with Puron refrigerant provides comfort you can enjoy season after season.

Standard Features:

• Energy Efficiency 13.7 - 17.2 SEER, 11.2 - 13.3 EER, 8.0 - 9.5 HSPF
• Microtube Technology refrigeration system
• Indoor air quality accessories available
• Sound level as low as 68 dBA
• Quiet mount split post compressor grommets
• Compressor sound hood
• 8 pole PSC ball bearing outdoor condenser fan motor
• System supports Evolution Control or standard 2-stage thermostat controls
• Puron refrigerant - environmentally sound, won't deplete the ozone layer and low lifetime service cost.
• Front-seating service valves
• 2-stage scroll compressor
• Internal pressure relief valve
• Internal thermal overload
• High pressure switch
• Loss of charge switch
• Filter drier
• Balanced refrigeration system for maximum reliability
• Crankcase heater standard
• Evolution Control or 2-Stage Thermostat
• 2 control wires to outdoor unit with Evolution Control, serial numbers 3112E and newer
• Utility Interface Connection
• Enhanced diagnostics capability with Evolution Control
• DuraGuard Plus protection package
• Solid, Durable sheet metal construction
• Steel louver coil guard
• Baked-on, complete outer coverage, powder paint
• Long-line up to 250 feet 76.2 m total equivalent length, up to 200 feet 60.96 m condenser above evaporator, or up to 80 ft. 24.38 m evaporator above condenser. See Long line Guide for more information
• Low ambient cooling down to 0F to -17.8C with approved low ambient accessory kits or complete Evolution system.



The Bryant FE4A and FE5A Air Handlers are the most advanced air handlers available. With attention to quiet, efficient, and comfortable operation, Bryant has developed a new benchmark for homeowner comfort and ease of installation. The FE4A and FE5A utilize the Evolution Control as a required accessory to enable state of the art smart-diagnostics capability. This enables faster troubleshooting, providing ease of service and repair. The FE4A and FE5A also provide a 4-wire hook up with matching outdoor unit and the Evolution Control. This makes installation simpler and a lot quicker than with conventional fancoils. The FE4A and FE5A have advanced technology that allows the fan coil to self-configure with a matching outdoor unit and theEvolution Control, cutting down on installation time. The FE4A and FE5A feature Puron refrigerant, the chlorine-free alternate that is the future for the residential heating and cooling industry. The FE4A and FE5A using Puron refrigerant maximize performance for environmentally sound systems. In addition to environmental safety, these systems are 30 to 40% more efficient than standard heating and cooling systems, thereby combining excellence in efficiency and environmental safety. The FE4A and FE5A provide these benefits due to Bryants command of Electronically Commutating Motor ECM technology.

Standard Features:

• Self configuring, ease of installation
• Easier troubleshooting, providing faster service and repair
• Environmentally-Sound Refrigerant Technology
• Puron refrigerant the chlorine-free, non-ozone depleting refrigerant
• Thermostatic Expansion Valve TXV designed to maximize performance with Puron refrigerant
• Electronically Commutated Motor ECM operates efficiently at all speeds
• Maximizes efficiency of heating and cooling systems
• Ultra-low power consumption during fan only operation
• Warm, comfortable heating air temperatures
• Unmatched humidity control
• Logarithmic spiral blower housings for high blower efficiency and quiet operation
• Diffuser air discharge section for high airflow efficiency and quiet, smooth operation
• High duct static capability
• Unique cabinet design that meets new stringent regulations for air leakage. Meets requirements of a 2% cabinet leakage rate when tested at 1.0 in wc of static pressure.
• Minimal standing water, less microbial growth for improved IAQ and reduced condensate line clogging and related condensate leakage
• Condensate fittings relocated away from turbulent airflow patterns at the blower entrance for improved condensate control performance
• Overflow feature for slope coil units allows condensate to exit the unit without damage to product under clogged primary and secondary line conditions
• Tested for condensate disposal at conditions much more severe than those required by ARI
• Primary and secondary drain connections to comply with HUD
• All pans constructed of an injection molded glass-filled polycarbonate engineered resin material, with brass drain connections
• High density, super thick cabinetry insulation with vapor barrier
• Pre-painted galvanized sheet metal cabinet
• Grooved tubing
• Lanced sine wave aluminum fins
• Discreet refined counterflow refrigerant circuitry
• Bi-flow hard-shutoff TXV metering device
• Easy 4 wire hook up: convenient and reduces installation time.
• FE4A unit is multipoise
• FE5A unit is upflow-downflow only single drain pan.
• Provision made for suspending from roof or ceiling joints
• Modular cabinet on sizes 003 through 006
• Sweat connections for leak free service
• Multiple electrical entry for application flexibility, high and low voltage
• Low voltage terminal strip, to safely hold connections within the cabinet
• Cabinet construction features innovations designed to prevent cabinet sweating
• Easy plug connection provided for quick installation of accessory heater packages
• 40VA 208-230v transformer
• Replaceable 3-amp blade-type auto fuse protects against transformer secondary short
• Factory supplied filter
• Cleanable polyester filter media
• Filter springs out for easy access no tools required
• Newly improved filter rack area filter door insulation added for an improved air seal
