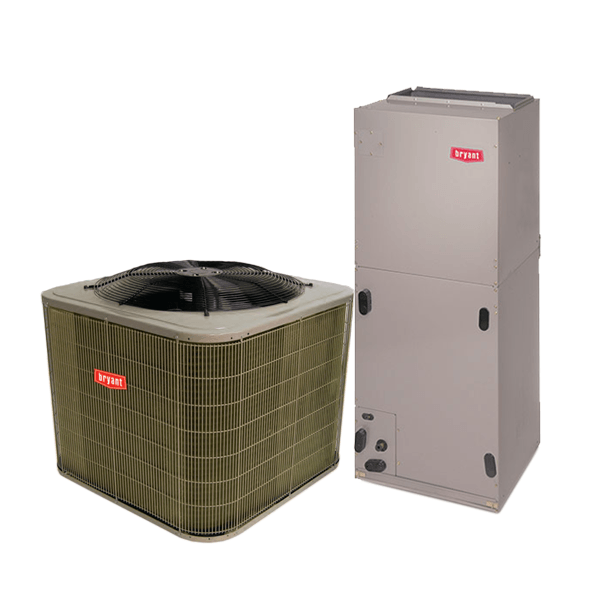

The Bryant 288BNV Heat Pump offers high-efficiency variable speed performance in a remarkably small cabinet and provides up to 11 HSPF heating efficiency and up to 18 SEER cooling efficiency. The variable speed inverter capacity control delivers up to 5 stages of operation for exceptional load matching, dehumidification and zoning performance. This product has been designed and manufactured to provide flexible system matching and work with a wide variety of indoor units and controls.

Standard Features:

• Energy Efficiency
• Up to 18 SEER /12.5 EER / 11 HSPF
• Microtube Technology refrigeration system
• Sound level as low as 55 dBA in low speed, Silencer System II
• Soft start and smooth ramp to operating speeds
• Variable speed compressor operates at 5 stages with capacity range from as wide as 25-100%
• Air cooled Inverter variable speed drive
• System requires Evolution Connex Control with version 11 software or newer for 5-stage operation
• Ratings provided with 2-stage thermostats and suitable
• non-communicating indoor products for 2-stage operation
• Puron refrigerant environmentally sound, won't deplete the ozone layer and low lifetime service cost
• Internal crankcase heater standard
• 2 control wires to outdoor unit in complete Evolution system and Connex Control
• Smaller and lighter than 2-stage units
• Minimum and Maximum adjustments with Evolution Connex Control
• Hybrid Heat dual fuel capable
• Compatible with non-communicating thermostats
• DuraGuard protection package

Cabinet Features:

• Solid, Durable sheet metal construction
• Steel louver coil guard
• Front-seating service valves
• Inverter control drives compressor and fan motor
• No control module attached to fan motor
• Evolution intelligence monitors critical system parameters
• Pressure equalizer valve for easy compressor starting
• High pressure switch
• Suction pressure transducer
• Electronic expansion valve EXV for heating, TXV for cooling
• Compressor discharge temperature sensor
• Suction temperature sensor
• Filter drier field installed
• Baked-on, complete outer coverage, powder paint
• Line sets up to 100 ft, 30.5 m equivalent length
• No long-line accessories required



The Bryant FV4C Air Handler combines the proven technology of Bryant fan coils with environmentally sound Puron refrigerant. The FV4C achieves an operational advantage when the ECM (Electronically Commutated Motor) is combined with a Bryant Preferred heat pump with Puron refrigerant.
With attention to quiet, efficient, and comfortable operation, Bryant has developed a new benchmark for superior indoor comfort and control. ArmorCoat provides a tin plating of the indoor coils copper hairpins. This creates a barrier between the corrosion-causing elements and the coil.

Bryant's heat pump and air conditioning systems now feature Puron refrigerant (R-410A), the chlorine-free refrigerant that is the future for the residential heating and cooling industry. The FV4C using Puron refrigerant maximizes performance for environmentally sound systems. In addition to environmental safety, these systems are 30 to 40 more efficient than standard heating and cooling systems, thereby combining excellence in efficiency and environmental safety.

The FV4C provides these benefits due to Bryant's command of ECM technology. These motors are extremely efficient at all speeds, and enable the FV4C to operate at the correct speed to deliver airflow precisely, ensuring proper performance across a wide range of duct static pressures. This adaptive efficiency also makes installation quality easier to achieve for today's demanding homeowner.

Bryant's command of ECM technology may be most evident in the comfort advantages that ECM can deliver. Operation set up steps on the Easy Select Board provide the installing technician with alternatives to maximize comfort and efficiency. For true indoor comfort, the homeowner can achieve command of both temperature and humidity in cooling and heating modes.

Another feature which sets the FV4C apart is the factory-installed TXV, which enhances efficiency and provides compressor protecting operation at all recommended conditions. Grooved copper tubing, louvered aluminum fins, and the large face areas of the FV4C refrigerant coils also provide superior efficiency, for high SEER and HSPF performance. Bryant leads the way in condensate control, a hallmark of these multipoise fan coils. All of these featured components are protected within a rugged, prepainted metal cabinet lined with super thick, high-density insulation. For neat, high-quality installations the unit exterior features sweat refrigerant connections for simple leak free performance, and multiple electrical entry for both high and low voltage service.

For superior technology and unmatched comfort, the environmentally sound and efficient FV4C can't be beat.

Standard Features:

• Environmentally Sound Refrigerant Technology inches Puron, chlorine-free non-ozone depleting refrigerant. Thermostatic Expansion Valve (TXV) designed to maximize performance with Puron refrigerant.
• Energy Efficient Operation inches Electronically Commutating Motor (ECM) operates efficiently at all speeds. Maximizes efficiency of heating and cooling systems. Ultra low power consumption during fan only operation.
• Indoor Weather Control inches Warm, comfortable heating air temperatures. Unmatched humidity control, especially with Bryants Thermidistatž˘ Control.
• Airflow and Sound Technology inches Diffuser air discharge section for high airflow efficiency and quiet, smooth operation. High duct static capability. Unique cabinet design that meets new stringent regulations for air leakage. Meets requirements of a 2 cabinet leakage rate when tested at 1.0 inches of static pressure.
• Condensate Control and Disposal Technology inches Minimal standing waterless microbial growth for improved IAQ and reduced condensate line clogging and related condensate leakage. Condensate fittings relocated away from turbulent airflow patterns at the blower entrance for improved condensate control performance. Overflow feature for slope coil units allows condensate to exit the unit without damage to product under clogged primary and secondary line conditions. Tested for condensate disposal at conditions much more severe than those required by AHRI. Primary and secondary drain connections to comply with HUD. All pans constructed of an injection molded glass-filled polycarbonate engineered resin material, with brass drain connections. High density, super thick cabinetry insulation with vapor barrier. Pre-painted galvanized sheet metal cabinet.
• Heat Transfer Technology inches Grooved copper tubing. Lanced sine wave aluminum fins. Discreet refined counter-flow refrigerant circuitry. Bi-flow hard shut-off TXV metering device. ArmorCoatž˘ coil protection available.
• Quality Assisting, Ease of Installation and Service Features inches All units multipoise. Provision made for suspending from roof or ceiling joints. Modular cabinet on 003 thru 006 units. Sweat connections for leak free service. Multiple electrical entry for application flexibility (high and low voltage). Low voltage terminal strip, to safely hold connections within the cabinet. Inspection plate on A-coil models for quick coil cleanliness inspection. Cabinet construction features innovations designed to prevent cabinet sweating.
• Controls and Electrical Features inches Easy Select Board to maximize comfort, efficiency, and safe heater airflow operation. Easy plug connection provided for quick installation of accessory heater packages. 40VA 208/230v transformer. Replaceable 5-amp blade-type auto fuse protects against transformer secondary short.
• Filter Features inches Factory supplied filter. Cleanable polyester filter media. Filter springs inches out for easy access - no tools required. Newly improved filter rack area - filter door insulation added for an improved air seal.
