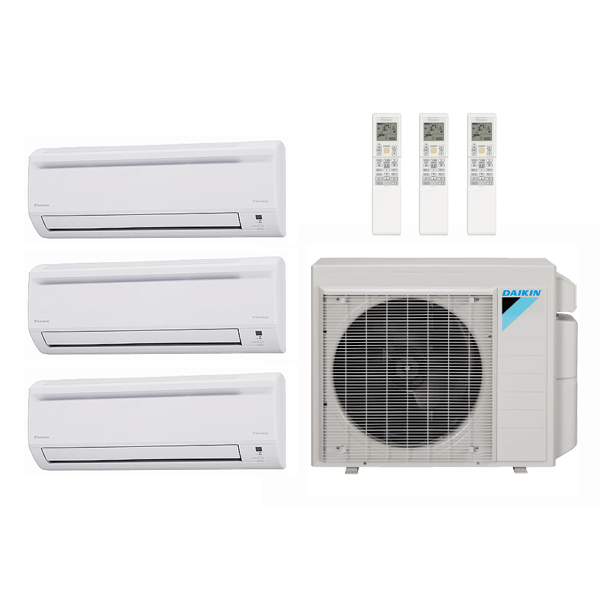

Daikin 24,000 Btu 19 SEER2 R-32 3-Zone Ductless Hyper Heat Mini Split Heat Pump System - 7K-7K-7K
Daikin 24,000 Btu 19 SEER2 R-32 3-Zone Ductless Hyper Heat Mini Split Heat Pump System - 7K-7K-7K
Model: 3MXT24AVJU9 - (3) CTXV07AVJU9
Couldn't load pickup availability
**PLEASE BE ADVISED** This is highly specialized HVAC equipment and should only be purchased by or after consulting with a licensed technician. The AC Outlet cannot be held liable for any equipment that has been purchased incorrectly.

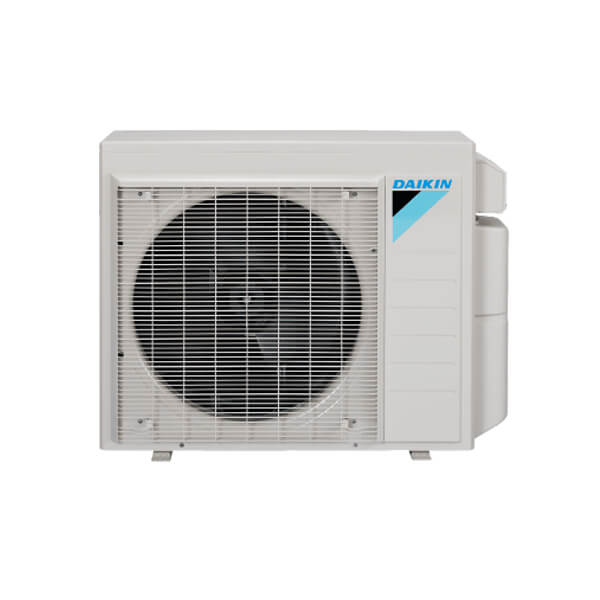

The Daikin 3MXT24AVJU9 R-32 AURORA Hyper Heat Multi-Zone Mini Split System provides high-efficiency comfort for homes that require heating and cooling for two separate rooms. This 2.0-ton outdoor unit features Daikin’s advanced inverter-driven swing compressor and Hyper Heat technology, delivering strong heating performance down to –13°F and cooling down to 14°F—making it an excellent solution for cold-climate applications. With compatibility across multiple indoor styles, including wall mounts, slim ducts, and ceiling cassettes, the 3MXT24AVJU9 offers flexible installation options for both new and existing homes. The system is factory pre-charged for up to 131 ft. of piping and delivers dependable efficiency up to 19.0 SEER2 and 9.5 HSPF2 (non-ducted).
Standard Features:
- Supports up to 2 indoor units for customized dual-zone temperature control
- High-efficiency inverter-driven swing compressor for dependable, quiet operation
- Energy-efficient ratings up to 19.0 SEER2 / 12.5 EER2 / 9.5 HSPF2
- Hyper Heat capability with reliable heating at outdoor temperatures as low as –13°F
- Cooling operating range from 14°F to 115°F ambient
- Factory pre-charged for up to 131 ft. of line set
- Total piping capability up to 230 ft. system length
- Anti-corrosion coated outdoor heat exchanger for long-lasting durability
- Night Quiet Mode for reduced nighttime sound levels
- Automatic Defrost and Quick Warming functions for cold-weather reliability
- Priority Room Setting for optimized comfort in primary living areas
- LED self-diagnostics and wiring error check function
- Cold-climate drain pan design for improved winter drainage performance
- 12-year limited parts warranty with online registration
| Model Number (s) | 3MXT24AVJU9 - (2) CTXV07AVJU9 - CTXV07AVJU9 |
| Brand | Daikin |
| Type | Heat Pump |
| SEER | 19 |
| Cooling Btu | 24,000 |
| Compressor Stage | Inverter |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-32 |
| Outdoor Unit Height (Inches) | 34 1/4 |
| Outdoor Unit Width (Inches) | 43 5/16 |
| Outdoor Unit Depth (Inches) | 18 1/8 |
| Parts Warranty (Years) | 12 |
| Compressor Warranty (Years) | 12 |
| UPC # | 633190301246 |
| Heating Btu | 24,000 |
| Amp(s) | 35 |
| Zones | 3 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 5 |
| Total Shipping Weight (lbs.) | 288 |
| Category | Mini Split System |
| HSPF | 9.5 |
| Parts Warranty (Years) | 12 |
| Compressor Warranty (Years) | 12 |
| UPC # | 633190301246 |
| Heating Btu | 24,000 |
| Amp(s) | 35 |
| Zones | 3 - Zone |
| Min. Operating Temp. (Degrees Farenheit) | 5 |
| Total Shipping Weight (lbs.) | 288 |
| Category | Mini Split System |
| HSPF | 9.5 |
