IMPORTANT NOTE:  When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023.  This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.

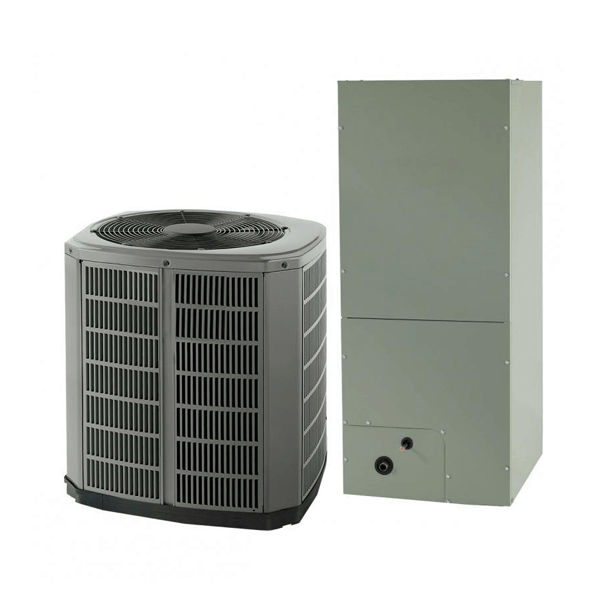

The A.S. 4A7A60 Air Conditioner is fully charged from the factory for up to 15 feet of piping. This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified. The unit is certified to UL 1995. Exterior is designed for outdoor application. The compressor features internal over temperature, pressure protection and total dipped hermetic motor. Other features include: Centrifugal oil pump and low vibration and noise. An unbeatable combination of value and reliability, Silver Series air conditioners feature Spine Fin coils and Duration single-stage compressors, providing powerful cooling with the reliability you expect from A.S..

Standard Features:

• DURATION compressor
• Efficiency up to 17.0 SEER
• All aluminum SPINE FIN coil
• WEATHERGUARD fasteners
• EASY-SESS cabinet, service access and refrigerant connections with full coil protection
• DURABASE base, fast complete drain, weatherproof
• COMFORT-R mode approved
• Glossy corrosion resistant finish
• Internal compressor high/low pressure & temperature protection
• 018, 024 & 030 ship with start kit
• Liquid line filter/drier Spinnaker gray cabinet with high contrast badge and cap
• High pressure switch
• Service valve cover
• R-410A refrigerant
• S.E.E.T. design testing
• 100% line run test
• Low ambient cooling to 30°F with AY28X079
• Low ambient cooling to 55°F as shipped

Cabinet Features:

• Unit casing is constructed of heavy gauge galvanized steel
• Painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel
• The corner panels are prepainted
• All panels are subjected to our 1,000 hour salt spray test
• The base is made of a CMBP-G30 weatherproof material to resist corrosion

The A.S. TAM7 Air Handler is a premium offering that provides consistant, comfortable airflow while keeping operating noise to a minimum. The Platinum XV Series features Variable-Speed Technology that provides quiet startups and shutdowns with greater humidity control and energy savings. The Vortica Advanced Airflow System improves airflow while reducing energy use and operating sound. The all-aluminum coil enhances system life and reduces the chance of refrigerant leaks.

Standard Features:

• Multi-position up/down flow horizontal left/right
• Control board protection pocket built into cabinet wall
• Alert port to view control board codes without door removal
• Vortica blower with polarized plug connections and integrated slide deck for easy removal
• COMFORT-R mode
• Electronic Expansion Valve (EEV) with low ambient and low superheat compressor protection
• Aluminum coil with integrated slide deck for easy removal and polarized plug connections on coil EEV
• Patented enhanced coil fin
• Dual refrigerant compatible as shipped

Cabinet Features:

• Precision applied - durable door seals
• Specially designed air seal around refrigerant, condensate conduit connections
• Double wall foamed cabinet system
• No loose fiber design
• Smooth cleanable interior design
• Integrated horizontal drain pans
