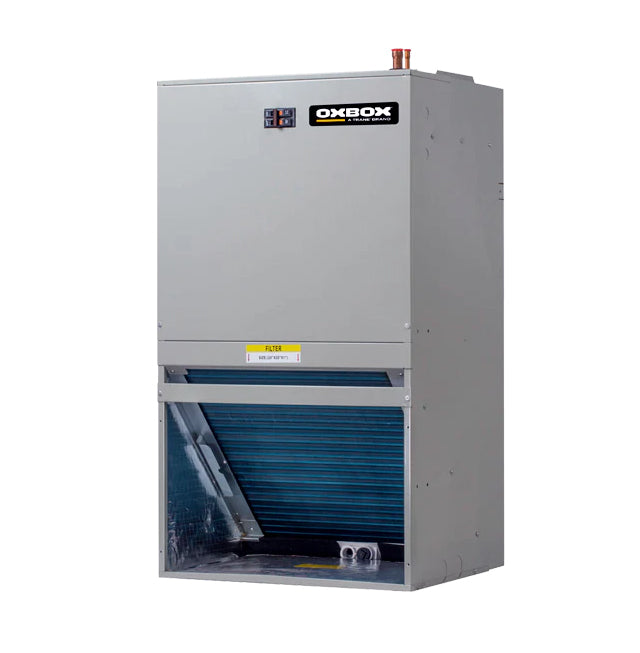

OxBox 3 Ton Front Return / Wall-Mount Air Handler (ECM Motor) For R-454B Refrigerant
OxBox 3 Ton Front Return / Wall-Mount Air Handler (ECM Motor) For R-454B Refrigerant
Model: 5JMM5A0B36M31S
The OxBox JMM Front Reurn Air Handlers are adaptable to 13, 14 and 16 SEER models. Oxbox®, endorsed by Trane®, brings you affordable quality residential HVAC solutions. And we know how to handle air. So whether you need an air handler that fits in a small closet or open attic, Oxbox has you covered. Our wall-mount air handlers will get the job done.
Standard Features:
- 1.5 – 3 ton models available
- All-aluminum coils
- Painted metal cabinet with foil face insulation
- Auxiliary heaters available in 5kw, 8kw and 10kw
- Factory installed R-410A thermal expansion valve on JMM5 models
- PSC constant speed motor on JMM4 Models
- ECM constant torque motor on JMM5 models
Warranty Features:
- 1 Year: Unit Replacement (ONLY COMPRESSORS, COILS, OR HEAT EXCHANGER FAILURE)
- 5 Years: Standard Parts Warranty
- 7 Years: Compressor Replacement
| Model Number (s) | 5JMM5A0B36M31S |
| Brand | OxBox |
| Ton | 3.0 Ton |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| UPC # | 633190289216 |
| Blower | Multi-Speed |
| Total Shipping Weight (lbs.) | 117 |
| Height (Inches) | 39 1/2 |
| Width (Inches) | 22 |
| Depth (Inches) | 19 |
