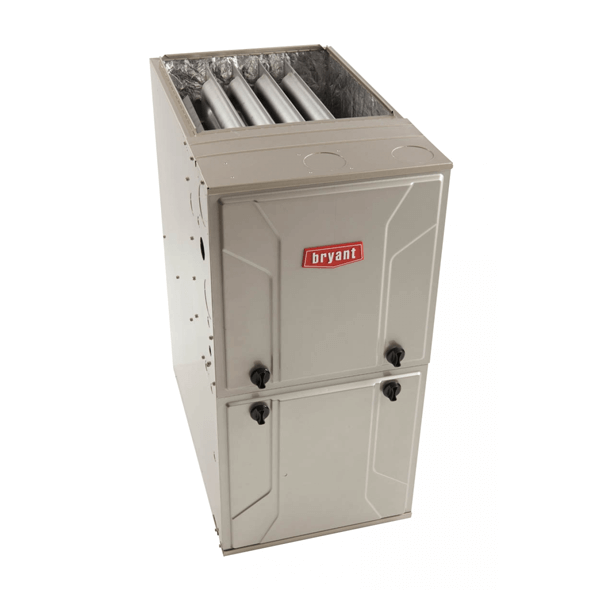

The Bryant 925SA Gas Furnace features the single stage Preferred System. The Boost ECM multiple speed blower motor is at the heart of the electrical efficiency provided by this furnace. With an Annual Fuel Utilization Efficiency (AFUE) of 96.2%, the Preferred single stage gas furnace provides added savings over standard gas furnaces.This Preferred Gas Furnace features 4-way multipoise installation flexibility, and is available in six model sizes. The 925SA can be vented for direct vent/two-pipe, ventilated combustion air, or single pipe applications. A Bryant Preferred Control and Preferred Air Conditioner or Heat Pump, can be used to form a complete Preferred Series System. All units meet California Air Quality Management District emission requirements. All sizes are design certified in Canada. All sizes are design certified for use in Manufactured Housing (Mobile Home) applications when used with factory approved MH accessory kit.

Standard Features:

• Quiet operation. Compare for yourself at HVACpartners.com
• Most sizes meet ENERGY STARR Version 4.0 criteria for gas furnaces: 95+ AFUE; AMACF electrical rating; 2% or less cabinet airflow leakage
• Preferred Features match with the Preferred Control for Preferred System benefits
• SmartEvap technology helps control humidity levels in the
• Fan On Plus technology allows control of continuous fan speed from a compatible thermostat
• Self diagnostics
• Adjustable blower speed for cooling, continuous fan, and dehumidification
• Approved for Twinning applications with accessory kit (42060 through 66120 models, only
• Approved for Manufactured Housing/Mobile Home applications with MH accessory kit
• Factory configured ready for upflow applications
• Residential installations may be eligible for consumer financing through the Retail Credit Program
• Certified to leak 2% or less of nominal air conditioning CFM delivered when pressurized to 1 in. water column with all present air inlets, air outlets, and condensate drain port(s) sealed

Cabinet Features:

• Ideal height 35 inches (889 mm) cabinet: short enough for taller coils,but still allows enough room for service
• Silicon Nitride Perfect Light Hot Surface Igniter
• External Media Filter Cabinet included
• 4 way multipoise design for upflow, downflow or horizontal installation, with unique vent elbow and optional through the cabinet downflow venting capability
• Boost ECM multiple speed blower motor, single speed inducer motor, and single-stage gas valve
• Aluminized steel primary heat exchanger
• Stainless steel condensing secondary heat exchanger
• Propane convertible
• Fully insulated casing including blower section
• Convenient Air Purifier and Humidifier connections
• Direct vent/sealed combustion, single-pipe venting or ventilated combustion air
• Installation flexibility: sidewall or vertical vent
