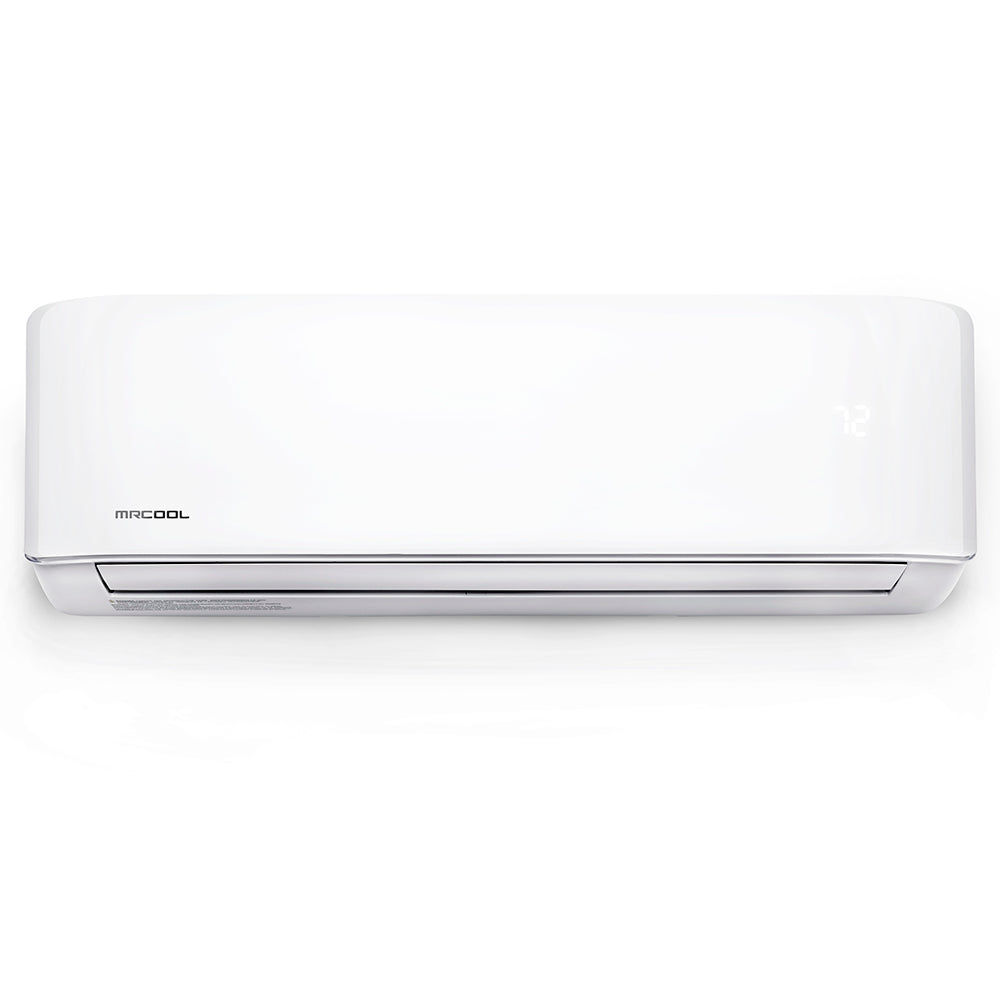

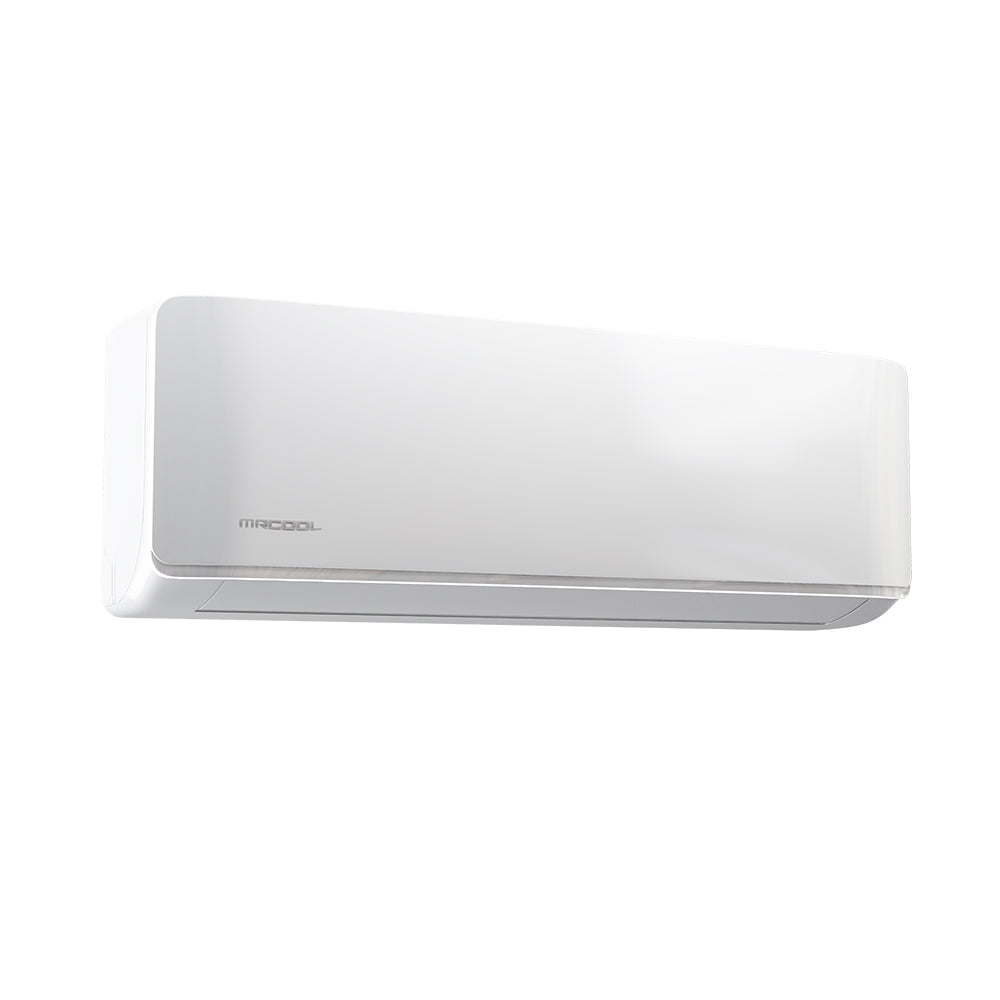

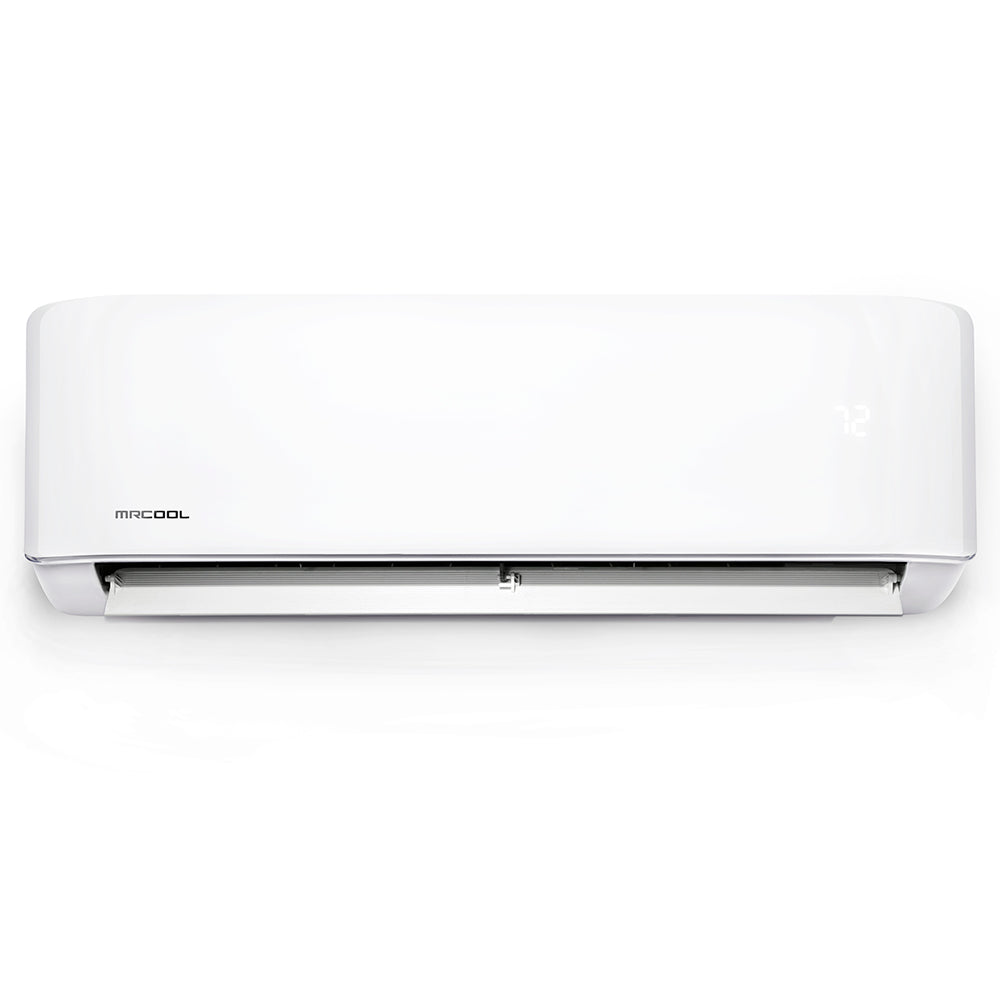

MRCOOL Advantage 5th Gen 9,000 BTU 208/230V Ductless Mini Split Air Handler (Not DIY)
MRCOOL Advantage 5th Gen 9,000 BTU 208/230V Ductless Mini Split Air Handler (Not DIY)
Model: A-09-HP-WMAH-230D-O
Couldn't load pickup availability
The 5th Generation MRCOOL® 9k BTU 230V Advantage Air Handler now comes equipped with R-454B refrigerant, the latest eco-friendly solution offering enhanced energy efficiency, reduced greenhouse gas emissions, and a lower Global Warming Potential (GWP). Designed for quiet operation, the Advantage series mini-split unit delivers reliable heating and cooling for your home without the need for ductwork, ensuring an efficient and cost-effective solution for any space. This sleek Advantage Air Handler is ideal for homeowners seeking an affordable yet powerful climate control system. With built-in Wi-Fi, you can conveniently control the unit via remote access, allowing it to automatically adjust the temperature overnight for optimal comfort and energy savings. Enjoy peace of mind with MRCOOL®’s robust warranty: 1 year on parts, 2 years on the compressor, and 1 year on the remote control. You can also subscribe to the MRCOOL® Care Program for an additional level of protection. Say goodbye to comfort concerns with the MRCOOL® Advantage Air Handler!
Features:
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
| Model Number (s) | A-09-HP-WMAH-230D-O |
| Brand | MrCool |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 31.5 |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 3/8 |
| Liquid Valve Size (Inches) | 1/4 |
| Parts Warranty (Years) | 1 |
| UPC # | 840255586894 |
| Amp(s) | 3 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 312.0 |
| Total Shipping Weight (lbs.) | 16.98 |
| Indoor Unit Depth (Inches) | 7.36 |
| Indoor Unit Width (Inches) | 28.43 |
| Indoor Unit Height (Inches) | 11.42 |
| Amp(s) | 3 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 312.0 |
| Total Shipping Weight (lbs.) | 16.98 |
| Indoor Unit Depth (Inches) | 7.36 |
| Indoor Unit Width (Inches) | 28.43 |
| Indoor Unit Height (Inches) | 11.42 |
