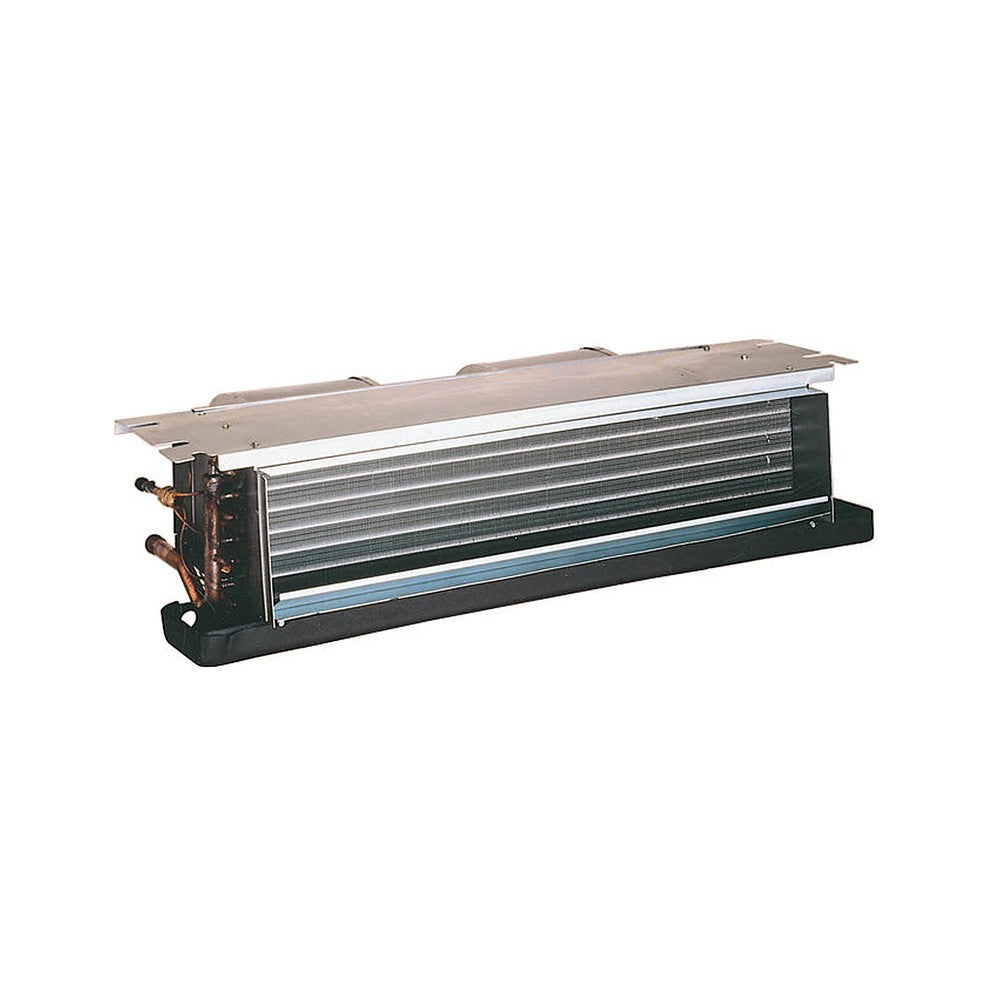

Goodman 1.5 Ton Air Handler
Goodman 1.5 Ton Air Handler
Model: ACNF180016
Discontinued (Upgrade Available)
Call for details
Share:

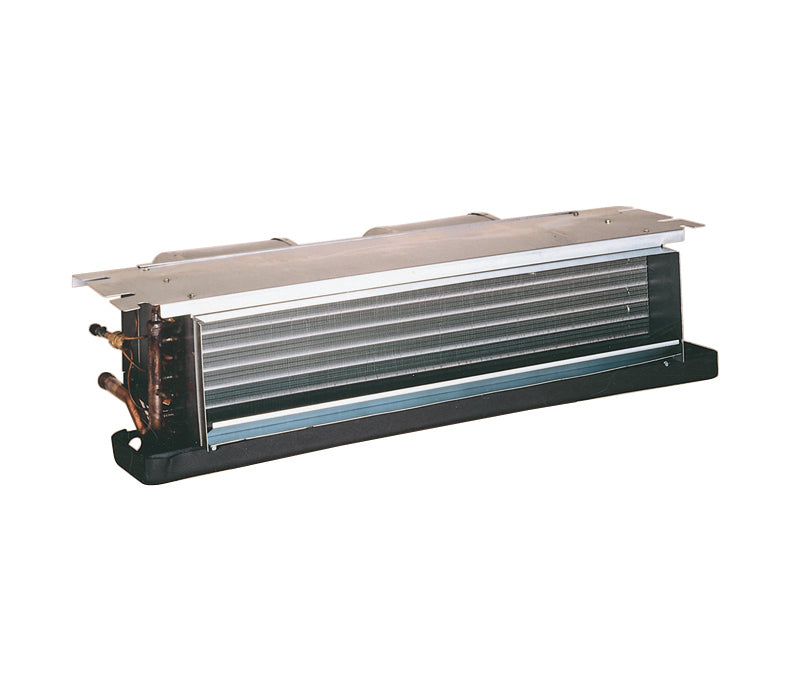

The Goodman ACNF Air Handler is an Electric Heat Air Handler designed to be ceiling mounted. These units have galvanized-steel construction and quiet operation. They are backed by a 10-Year Parts Limited Warranty.
Standard Features:
- Check flowrater for heat pump and cooling-only applications
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
- High-efficiency evaporator coil
- Quiet operation
- Models with EEM motor: ACNF25 & ACNF31
- Models with PSC motors: ACNF18, ACNF24, & ACNF30
- Available with and without heat
- AHRI Certified; ETL Listed
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
| Model Number (s) | ACNF180016 |
| Brand | Goodman |
| Ton | 1.5 Ton |
| Electrical Phase(s) | 1-Phase |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 10 |
| UPC # | 00663051523203 |
| Amp(s) | 15 |
| Blower | Multi-Speed |
| Maximum CFM | 710 |
| Total Shipping Weight (lbs.) | 79 |
| Height (Inches) | 11 1/4 |
| Width (Inches) | 37 1/4 |
| Depth (Inches) | 21 |
| Category | Air Handlers |
| Amp(s) | 15 |
| Blower | Multi-Speed |
| Maximum CFM | 710 |
| Total Shipping Weight (lbs.) | 79 |
| Height (Inches) | 11 1/4 |
| Width (Inches) | 37 1/4 |
| Depth (Inches) | 21 |
| Category | Air Handlers |
