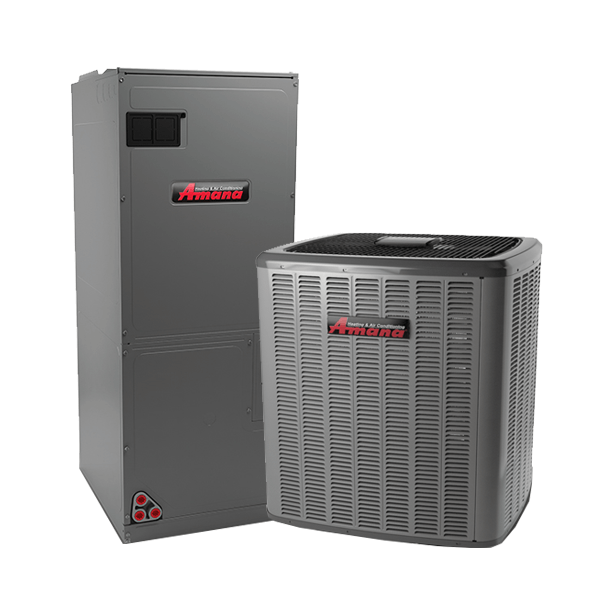

The Amana ASZ14 Heat Pump uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and cooling industry. R-410A is chlorine-free to help prevent damage to the ozone layer. With its 14 SEER rating, the ASZ14 will reduce energy consumption throughout the life of the system compared to US federal minimum efficiency standards for 13 SEER products.

Standard Features:

• R-410A environmentally friendly refrigerant
• High-efficiency Copeland scroll compressor
• High-density foam compressor sound blanket
• Copeland ComfortAlert diagnostics
• High and low pressure switches
• Fully charged for 15™ of tubing length
• Factory installed bi-flow liquid line filter dryer
• Liquid refrigerant return protection
• Two-speed condenser fan motor
• Copper tube/enhanced aluminum fin coil
• Sweat connection service valves with easy access to gauge ports
• ARI Certified; ETL Listed

Cabinet Features:

• Unique Amana sound control top design
• Wire fan discharge grille
• Steel louver coil guard
• Baked-on powder paint finish
• Rust-resistant screws
• Compact footprint
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman AVPTC Air Handler includes a variable-speed ECM motor to help eliminate the cold blast of air upon heating start-up. The constant low speed fan run option helps to maintain temperature throughout the household. State of the art variable speed technology.

Standard Features:

• Compatible with the ComfortNet Communicating System family of products
• Maximum four low-voltage wires required for operation in communicating mode
• Auto configuration of the airflow and tonnage in communicating mode
• In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the systems CFM for each individual mode of operation
• R-410A refrigerant-compatible
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• Provides adjustable low CFM for efficient fan-only operation
• CFM indicator with front-panel sight glass
• Improved humidity control and comfort
• Compatible with variable-capacity heat pumps and cooling applications
• Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
• AHRI Certified; ETL Listed

Cabinet Features:

• Fully insulated, painted steel cabinet with attractive Architectural Gray finish
• Compact, versatile upflow, downflow,or horizontal multi-position installations
• Low-voltage cabinet connections; control circuit is arranged to permit staging
• Power supply on top; low-voltage entry on top or side
• Cabinet air leakage less than 2.0% at 1.0 inch H2Owhen tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2Owhen tested in accordance with ASHRAE standard 193
• Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation
