MRCOOL Olympus 4th Gen 9,000 BTU Ceiling Cassette Mini Split Air Handler
Model: CASSETTE09HP-230C-P-O
Couldn't load pickup availability

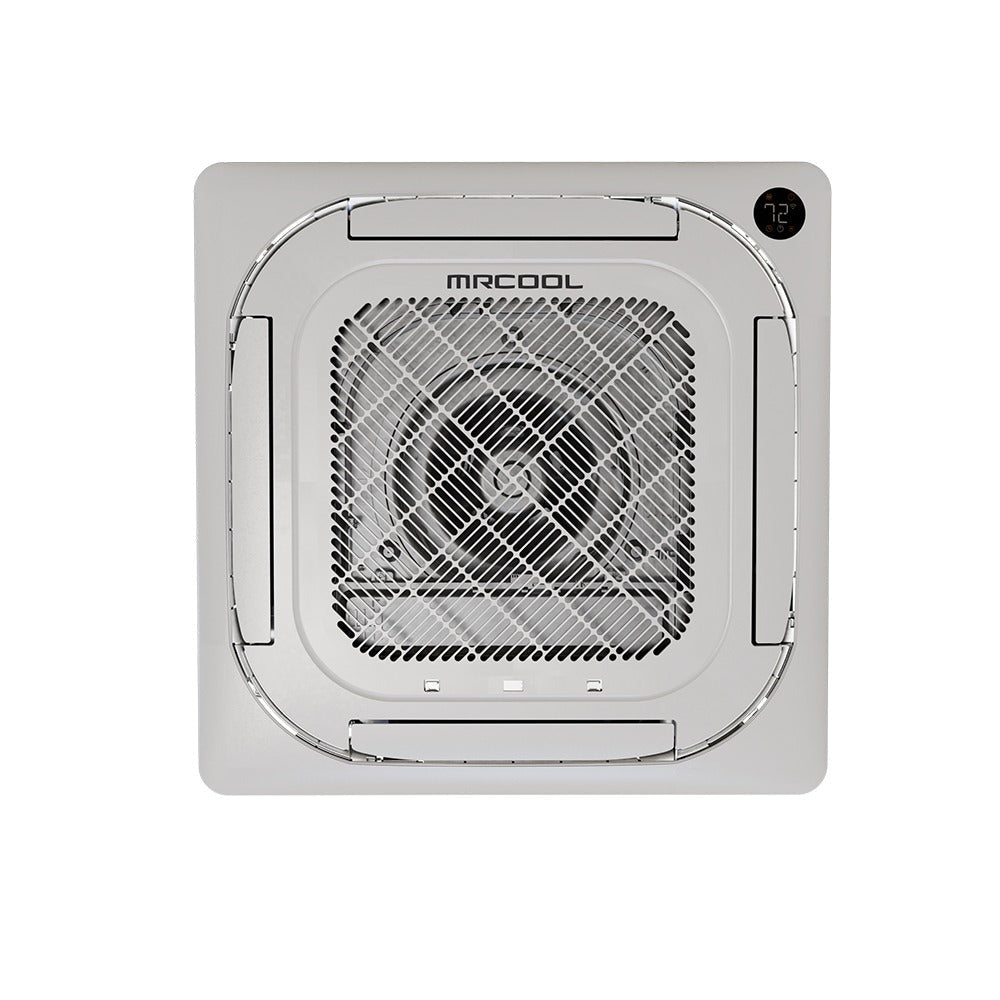

The MRCOOL® Olympus 4th Gen 9,000 BTU ceiling cassette air handler mounts flush into the ceiling for a clean, modern look, delivering quiet, even comfort for spaces up to 400 sq. ft. Pairs with MRCOOL single- and multi-zone Olympus condensers.
Features:
- Flush ceiling-mounted cassette with panel for a discreet, modern look
- 4-way downflow air distribution with louver oscillation
- 5 variable fan speeds for quiet operation
- R-454B refrigerant — eco-friendly with a lower Global Warming Potential (GWP)
- Built-in Wi-Fi — control from the MRCOOL® SmartHVAC app; works with Alexa & Google Assistant
- Reusable, washable filter; Sleep Mode, Auto Cool, Fan Only
- UL, CSA, and ETL Listed
- 5-year parts warranty (when registered and installed by a licensed professional)
- Professional installation required (not a DIY system)
| Model Number (s) | CASSETTE09HP-230C-P-O |
| Brand | MrCool |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 42.5 |
| Refrigerant Type | R-454B |
| Suction Valve Size (Inches) | 3/8 |
| Liquid Valve Size (Inches) | 1/4 |
| Parts Warranty (Years) | 5 |
| UPC # | 840255587945 |
| Amp(s) | 3 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 353.2 |
| Indoor Unit Depth (Inches) | 22.44 |
| Indoor Unit Width (Inches) | 22.44 |
| Indoor Unit Height (Inches) | 9.65 |
| UPC # | 840255587945 |
| Amp(s) | 3 |
| Voltage | 208/230V |
| Zones | 1 - Zone |
| Maximum CFM | 353.2 |
| Indoor Unit Depth (Inches) | 22.44 |
| Indoor Unit Width (Inches) | 22.44 |
| Indoor Unit Height (Inches) | 9.65 |
