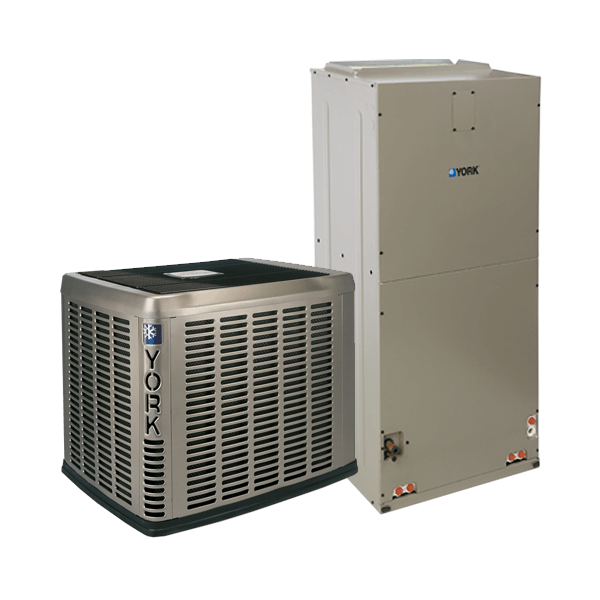

The York CZH Air Conditioner is the outdoor part of a versatile climate system. It is designed with a matching indoor coil component from . Available for typical applications this climate system is supported with accessories and documents to serve specific functions. The CZH series air conditioners can provide double the efficiency of older models.The Affinity Series products are available with environmentally friendly R-410A refrigerant. This new generation inches refrigerant releases heat more efficiently while being safer for the ozone layer. Designed to provide enhanced installability by featuring a slide-down control compartment that allows easy access to control components, along with angled service valves to reduce overall installation time and cost.

Standard Features:

• Superior Coil Protection
• Protected Compressor
• Environmentally Friendly Refrigerant
• Durable Finish
• QuietDrive System
• Low RPM ECM Fan Motor
• Swept Wing Fan
• Composite Base Pan
• Isolated Compressor Compartment
• Lower Installed Cost
• Factory Installed Filter-Drier
• Easy Service Access
• Communications Capable
• Premium System Warranty
• Agency Listed

The AHV Air Handler offers the ultimate in comfort, sound and application flexibility. This unit may be used for upflow, downflow, horizontal right, or horizontal left applications. No special kits are required to install this deluxe product. Air handlers are shipped with 'Flex-coils' without a factory installed metering device. Flex coil models allow these coils to be used with R-22 or R-410A for added flexibility to meet refrigerant choices. An orifice metering device or a R-410A TXV should be installed in the field to meet your system requirements.

Standard Features:

• Thermostatic Expansion Valve - Provides the ultimate refrigerant control required for today's high efficient product.
• Rust-proof Plastic Drain Pans - The vertical and horizontal drain pans in these units are made of a fiberglass reinforced thermoset polymer that will not rust or compromise stability at high temperatures.
• Insulated Cabinet - All air handler cabinets are thermally insulated with 3/4 inches foil faced insulation to prevent sweating.
• Factory Sealed - Achieves 2% or less total airflow leakage rate at duct leakage test conditions for system airflow verification.
• Durable Finish Inside and Out - Air handler casings are made of pre-painted galvanized steel. All internal coil sheet metal parts are made of G60 galvanized or prepainted G30 galvanized steel.
• Filters - All models have internal filter racks provided for use with 1 inches thick standard size filters.
• Electric Heat Kits - The 6HK series of field installed electric heat kits are available for installation friendly and easy service applications.
• ECM Variable Speed Motor - Designed for efficient, quiet operation with added indoor comfort control.
• Communications - These models may be connected as part of a communications system using a 4-wire connection bus.
