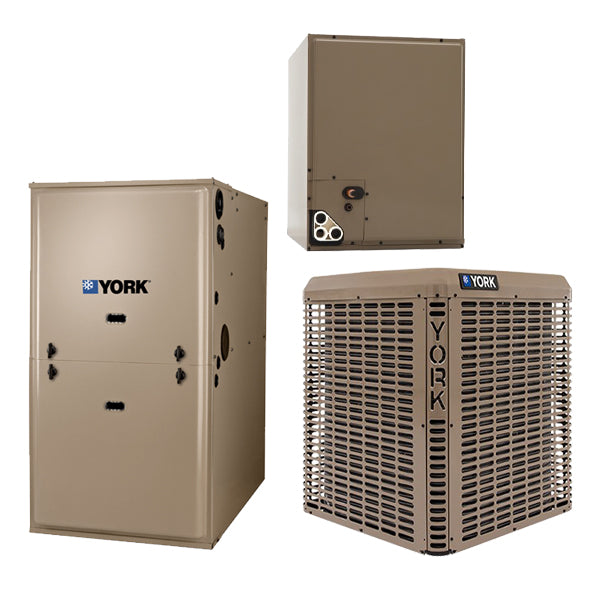

The York CZH Air Conditioner is the outdoor part of a versatile climate system. It is designed with a matching indoor coil component from . Available for typical applications this climate system is supported with accessories and documents to serve specific functions. The CZH series air conditioners can provide double the efficiency of older models.The Affinity Series products are available with environmentally friendly R-410A refrigerant. This new generation inches refrigerant releases heat more efficiently while being safer for the ozone layer. Designed to provide enhanced installability by featuring a slide-down control compartment that allows easy access to control components, along with angled service valves to reduce overall installation time and cost.

Standard Features:

• Superior Coil Protection
• Protected Compressor
• Environmentally Friendly Refrigerant
• Durable Finish
• QuietDrive System
• Low RPM ECM Fan Motor
• Swept Wing Fan
• Composite Base Pan
• Isolated Compressor Compartment
• Lower Installed Cost
• Factory Installed Filter-Drier
• Easy Service Access
• Communications Capable
• Premium System Warranty
• Agency Listed

The York MC Evaporator Coils are cooling and heat pump coils designed to be installed with UPG furnaces and to be matched with UPG cooling and heat pump outdoor units. Some coil models can also be ordered with an R410A TXV installed from factory.

Flex-coils are available without a factory installed metering device. For added application flexibility an orifice metering device or an R410A TXV should be installed on Flex-coils in the field to meet your system requirements.

Multi-Position Coils - Designed for high-efficiency just like the upflow/downflow coil but with the added flexibility that allows it to be installed in any position upflow, downflow, or horizontal right or left. This coil can be easily applied to UPG furnace and modular air handler in any configuration.

Standard Features:

• Thermal Expansion Valve - Provides flexibility to convert any coil to R410A refrigerant. A true bolt-on TXV valve assembly and equalizer tube don't require brazing. TXV and sensing bulb are mounted inside the cased coil cabinet. (must be field supplied for all Flex-coils)
• Insulated Cabinet - Evaporator coil cabinets are thermally insulated with foil faced insulation to prevent sweating. HD coils use fiberglass turfskin insulation.
• Internally Clean - All evaporator coils are factory leak-tested, dehydrated, sealed and shipped with a holding charge. The suction and liquid lines are sealed with spun copper fittings with easy access to attach line set.
• Durable Finish Inside and Out - Coil casings are made of prepainted steel. Pre-treated flat galvanized steel provides a better paint to steel bond, which resists corrosion and rust creep. All internal metal parts are made of G90 galvanized.
• Optimum Heat Transfer - Using the latest in heat transfer technology, staggered rows of copper tubes are mechanically expanded into aluminum fins to provide optimum air to surface contact for ample moisture removal as well as high performance ratings.

Accessories:

• TXV Kits - Thermal expansion valve kits are available for Flex-coil applications, for converting R22 to R410A refrigerant or as a service replacement. All TXV kits are non-braze all connections are bolt-on including the valve assembly and equalizer tube. No orifice or any other metering device is to be used in conjunction with the TXV.
• Coil Casing Without Coil - Coil casings are available in four widths that can be installed with the furnace or modular air handler during initial installation. This option is available to allow the installer the flexibility to add the coil at a later date without duct modifications.

The York YPLC Gas Furnace compact units employ induced combustion, reliable hot surface ignition and high heat transfer aluminized tubular heat exchangers. The units are factory shipped for installation in upflow or horizontal applications and may be converted for downflow applications.

These furnaces are designed for residential installation in a basement, closet, alcove, attic, recreation room or garage and are also ideal for commercial applications. All units are factory assembled, wired and tested to assure safe dependable and economical installation and operation.

These units are Category I listed and may be common vented with another gas appliance as allowed by the National Fuel Gas Code.

Standard Features:

• Modulating heating operation includes: Modulating gas valve, inducer and circulating blower and Modulating operation from 100 input to 50 input in 1 increments
• Easily applied in upflow, horizontal left or right, or downflow installation with minimal conversion necessary.
• Compact, easy to install, ideal height 33 tall cabinet.
• ECM variable speed motor for cooling SEER enhancement, blower delay options for comfort, and continuous fan options for IAQ performance.
• Easy access to controls to connect power/control wiring.
• Built-in, high level self diagnostics with fault code display.
• Low unit amp requirement for easy replacement application.
• All models are convertable to use propane (LP) gas.
• Electronic Hot Surface Ignition saves fuel cost with increased dependability and reliability.
• 100 shut off main gas valve for extra safety.
• 24V, 40 VA control transformer and blower relay supplied for add-on cooling.
• Hi-tech tubular aluminized steel primary heat exchanger.
• Blower door safety switch.
• Solid removable bottom panel allows easy conversion.
• Low NOx models have been designed to meet specific code requirements.
• Airflow leakage less than 1 of nominal airflow for duct blaster conditions.
• No knockouts to deal with, making installation easier.
• Movable duct connector flanges for application flexibility.
• Quiet inducer, burner and blower operation.
• Inducer rotates for easy conversion of venting options.
• Fully supported blower assembly for easy access and removal of blower.
• External air filters used for maximum flexibility in meeting customers IAQ needs.
• Venting applications - may be installed as a common vent with other gas-fired appliances.
• Insulated blower compartment for thermal and acoustic performance.
• 1/4 turn knobs provided for easy door removal.
