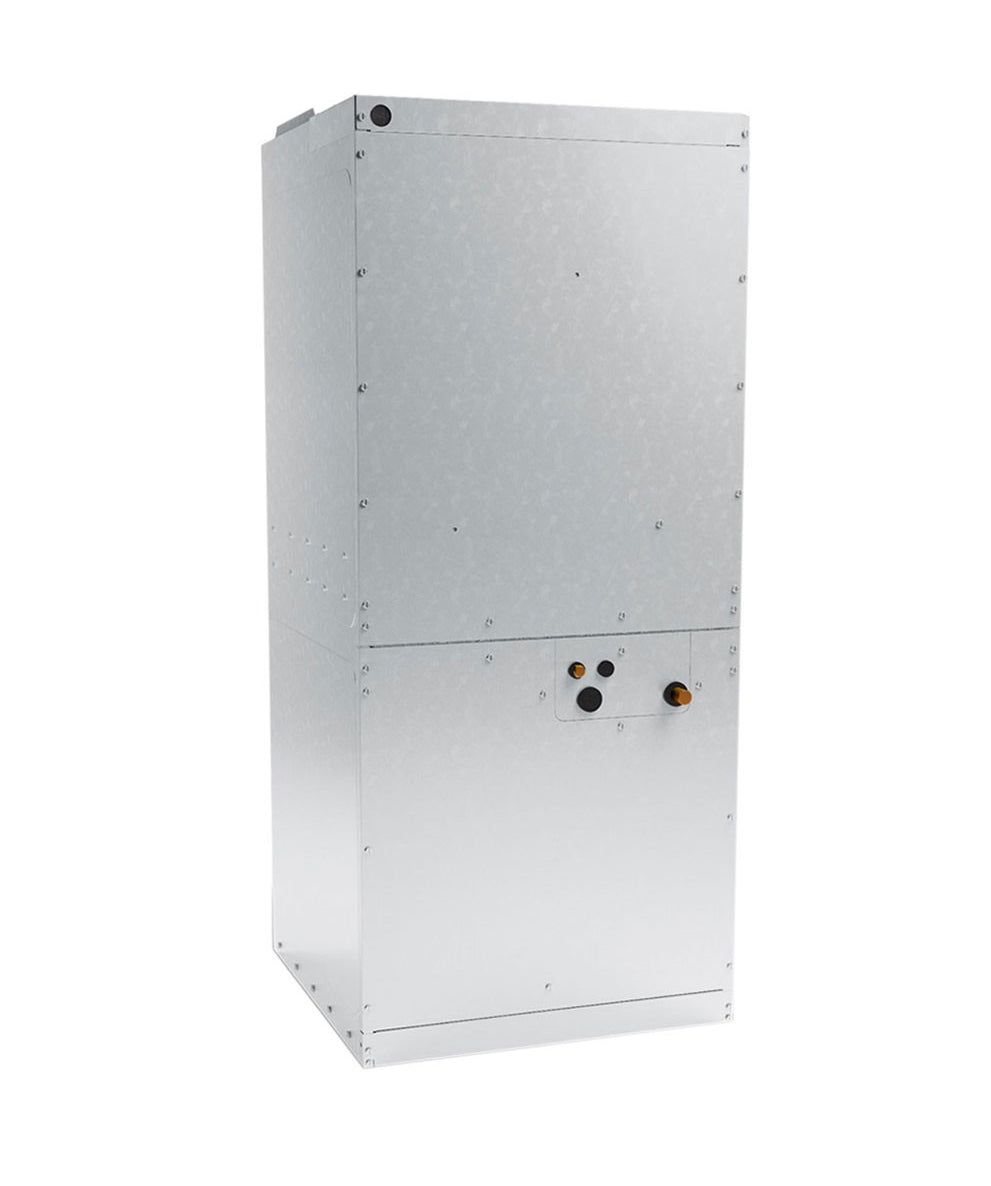

The Daikin/Goodman Commercial DAT Multi-Position Air Handler features a factory-installed, internally mounted thermal expansion valve. For indoor applications, all models are convertible to 460-3-60 from 208/230-3-60. The heavy-gauge, reinforced galvanized-steel cabinet is insulated with a fiberglass blanket to reduce operating sound levels.

Standard Features:

• Upflow or horizontal (left side) installation positions in 7? and 10 ton cooling only or heat pump applications
• 10 ton DAR model circuited for use with two 5 ton cooling only or heat pump systems, or one 10 ton cooling only or heat pump system
• 10 ton DAT model circuited for use with two 5 ton cooling-only or heat pump systems; 7? ton DAT model circuited for use with two 4 ton cooling-only or heat pump systems
• DAR models convertible to 460-3-60 from 208/230-3-60
• Transformer and blower relay
• TXV control; DAR 7?-ton unit has one (1) expansion valve; DAR 10-ton unit has two (2) expansion valves; DAT units have two (2) expansion valves
• Draw-thru centrifugal blower is belt driven for quiet, efficient operation
• Copper tube/aluminum fin coils

Cabinet Features:

• Heavy-gauge, reinforced, galvanized-steel cabinet
• Fully insulated with fiberglass blanket
• Horizontal and vertical condensate pans
• Built-in filter rack 2 inches filter included
• Entry on top of panel for both low and high voltage
• Removable access panels make servicing of unit faster and easier
