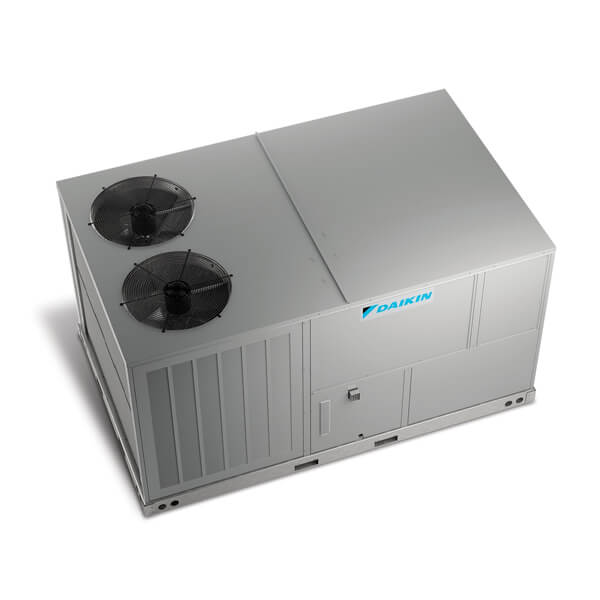

Daikin 8.5 Ton 14.1 IEER / 11EER Commercial Package Heat Pump (208/230-3-60)
Daikin 8.5 Ton 14.1 IEER / 11EER Commercial Package Heat Pump (208/230-3-60)
Model: DFH1023D000001S
The Daikin/Goodman DCH Commercial Packaged Heat Pump offers energy-efficient cooling performance in one self-contained unit. This 13 SEER heat pump unit is suitable for ground-level or rooftop installations and horizontal or downflow applications. The heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish withstands all weather conditions and time. Aluminized steel heat exchanger with in-shot burners are standard and help eliminate corrosion. Stainless steel heat exchangers are available as an option. Units are designed with convertible horizontal or vertical airflow allowing for maximum field installation flexibility. Several drive options accommodate a wide range of design conditions to meet your application needs. Factory-installed compressor high and low-pressure safety switches are standard.
Standard Features:
- Belt Drive Motor
- High-efficiency scroll compressor
- Copper tube / aluminum fin coils
- High- and low-pressure switches
- Refrigerant accumulator
- Contactor with lugs
- High-capacity, steel-cased filter drier
- Heater kits with single-point entry
- 24-volt terminal strip
- Convertible airflow orientation
- Easy to service
- Built-in filter rack with standard 2 inch filters
- Bottom utility entry
- AHRI Certified; ETL Listed Units meet the performance outlined in Table 6.8.1B of ASHRAE Standard 90.1-2010
Cabinet Features:
- Heavy-gauge, galvanized-steel cabinet with UV-resistant powder-paint finish
- Full Perimeter Rail
- Sloped drain pan
| Model Number (s) | DFH1023D000001S |
| Brand | Daikin |
| Type | Heat Pump |
| Ton | 8.5 Ton |
| Cooling Btu | 100,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 3-Phase |
| Decibel Level (dB) | 83 |
| Refrigerant Type | R-410A |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 658515782128 |
| Heating Btu | 102,000 |
| Amp(s) | 60 |
| Maximum CFM | 3,000 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 1,214 |
| Height (Inches) | 54 5/8 |
| Length (Inches) | 93 3/4 |
| Width (Inches) | 59 5/8 |
| Compressor Warranty (Years) | 5 |
| UPC # | 658515782128 |
| Heating Btu | 102,000 |
| Amp(s) | 60 |
| Maximum CFM | 3,000 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 1,214 |
| Height (Inches) | 54 5/8 |
| Length (Inches) | 93 3/4 |
| Width (Inches) | 59 5/8 |
