IMPORTANT NOTE:  When purchasing COOLING ONLY HVAC EQUIPMENT, Florida residents must refer to the new Florida Building Code, 8th Edition Section R501.7.2 which became effective on December 31st, 2023.  This section can be viewed online here or you may review the letter provided by the Technical Director of the DBPR Florida Building Codes and Standards in the documents section below.

**Please be advised that the GSX16 Series Condensers are being phased out and many models are already discontinued, making way for the 2023 SEER2 models. This is due to new Department of Energy regulations for efficiency. You can read more about SEER2 and the changes to come here: https://www.theacoutlet.com/seer2-regulations. The GSX16 series is being replaced by the GSXH5 Series condensers.**

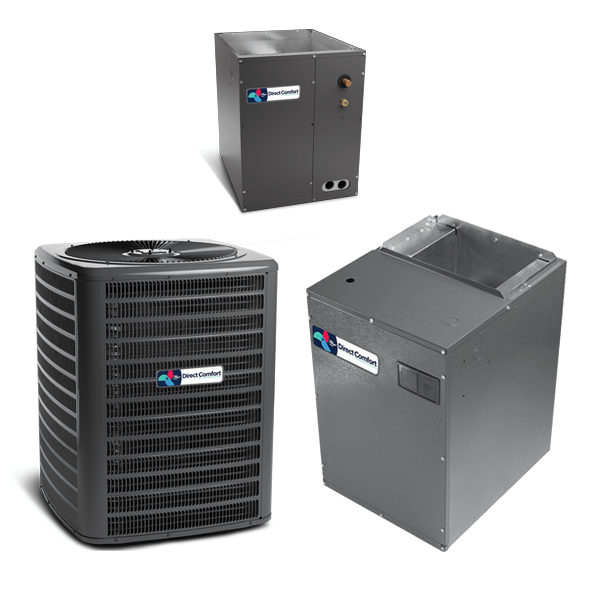

The Direct Comfort GSX16 Air Conditioner is the latest high efficiency 16 SEER Air Conditioner from Direct Comfort and provides a mix of performance, efficiency and value unmatched in the industry. The GSX16 uses the environmentally friendly refrigerant R-410A and features the unique Direct Comfort sound control top design for quiet operation. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

• R-410A environmentally friendly refrigerant
• Factory-installed liquid line filter dryer
• 850-RPM condenser fan motor
• High-efficiency scroll compressor
• Copper tube/aluminum fin coil
• Service valves with sweat connections and gauge ports
• Contactor with lug connection
• Ground lug connection
• ARI Certified; ETL Listed

Cabinet Features:

• Unique Direct Comfort sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds
• 10 Year Limited Parts Warranty

The Direct Comfort CAPF, CAUF, CHPF, CAPT and CSCF Evaporator Coils are designed for use with Direct Comfort Gas Furnaces, Split System Air Conditioners and Heat Pumps, as well as modular, two-piece blowers. Each cased coil has a quality, galvanized-steel cabinet.

Standard Features:

• Suitable for use with R-410A and R-22 refrigerants
• Rust-proof, thermoplastic drain pans feature a low water-retention design
• Check flowrater expansion device for heat pump or cooling-only applications
• Rifled aluminum tubing and louvered aluminum fin coils on CAPF, CAUF, and CSCF coils
• Rifled aluminum tubing and louvered aluminum fin coils on the CHPF coil

Cabinet Features:

• Foil-face insulation
• Galvanized leather-grain finish
• Architectural Gray paint finish on CAPF and CHPF cased coils
• Split-seam front for easy access

The Direct Comfort MBVC Modular Blower is tailor-made for exceptional energy efficiency. This blower is designed with quality components and assembled with excellent craftsmanship.

Standard Features:

• Compatible with the ComfortNet Communication System family of products
• Variable-speed ECM blower motor
• Auto configuration of the airflow and tonnage in communicating mode
• CFM indicator
• Maximum four low-voltage wires required for operation in communicating mode
• Built-in dehumidify feature
• Diagnostic indicator lights
• Storage of six prior fault codes
• Programmable heat strip settings
• Color-coded terminal strip for noncommunicating set-up
• Cooling and heat pump applications
• AHRI Certified
• ETL Listed

Cabinet Features:

• Painted, galvanized steel cabinet
• Blower section usable as an electric furnace
• Foil-faced insulation is glued in place and covers the entire blower case, reducing sound and cabinet condensation
• Bottom flanges formed inward for additional strength, and to provide mounting surface for cased-coil section
