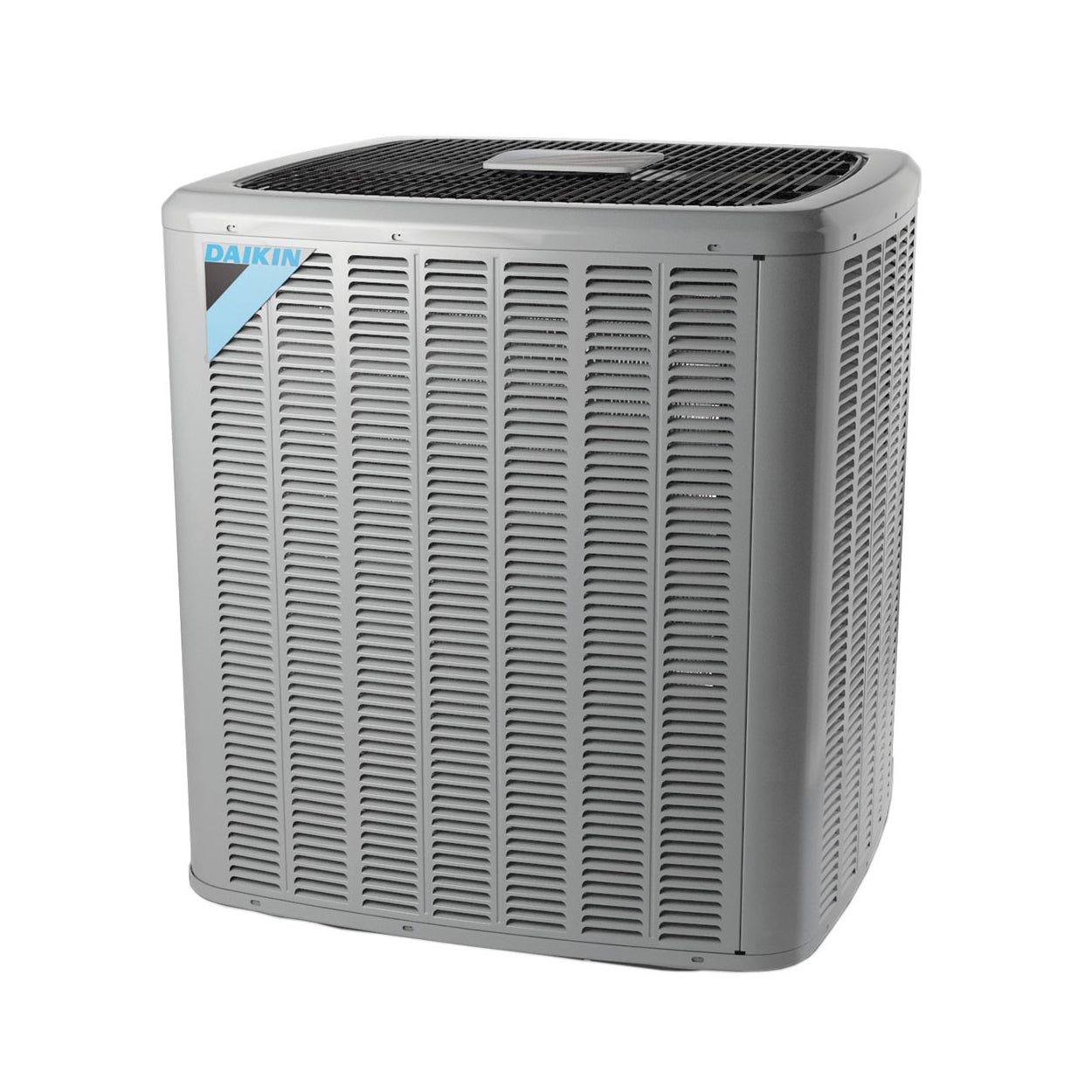

Daikin 4 Ton 14 Seer Commercial Heat Pump (208/230V)
Daikin 4 Ton 14 Seer Commercial Heat Pump (208/230V)
Model: DZ14SA0483A
Share:
The Daikin/Goodman Commercial DZ14S Three-Phase Heat Pump uses the chlorine-free refrigerant R-410A. This unit features operating sound levels that are among the best in the heating and cooling industry. An added benefit for commercial installations is the base pan, which is elevated to provide excellent water drainage and to help keep the coil away from debris that can collect inside the unit.
Standard Features:
- R-410A chlorine-free refrigerant
- Energy-efficient scroll compressor
- Low-pressure switch
- Liquid refrigerant return protection
- Factory-installed, bi-flow liquid-line filter drier
- Service valves with sweat connections and easy-access gauge ports
- Copper tube/enhanced aluminum fin coil
- Reliable time-initiated, temperature terminated defrost control
- Contactor with lug connection
- Ground lug connection
- Units meet the performance out lined in Table 6.8.1B of ASHRAE Standard 90.1-2010
- AHRI Certified; ETL Listed
Cabinet Features:
- Innovative louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized steel cabinet
- Attractive Nickel Gray powder paint finish
- Top and side maintenance access
- Service ports and controls are accessible while unit is operating
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds Anchor bracket kits available
**Due to the specialized nature of this equipment manufactured to specific job requirements (i.e. voltage, btu, etc.) returns will NOT be accepted on any Commercial Equipment sales. Please be sure to check your application specifications carefully prior to placing your order. ALL SALES ARE FINAL.**
| Model Number (s) | DZ14SA0483A |
| Brand | Daikin |
| Type | Heat Pump |
| Ton | 4.0 Ton |
| SEER | 14 |
| Cooling Btu | 45,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 3-Phase |
| Decibel Level (dB) | 76 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 1 1/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 658515782494 |
| Heating Btu | 44,500 |
| Amp(s) | 30 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 235 |
| Height (Inches) | 34 1/2 |
| Width (Inches) | 29 |
| Depth (Inches) | 29 |
| HSPF | 8.2 |
| Liquid Valve Size (Inches) | 3/8 |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 5 |
| UPC # | 658515782494 |
| Heating Btu | 44,500 |
| Amp(s) | 30 |
| Heating Stage(s) | 1 |
| Total Shipping Weight (lbs.) | 235 |
| Height (Inches) | 34 1/2 |
| Width (Inches) | 29 |
| Depth (Inches) | 29 |
| HSPF | 8.2 |
