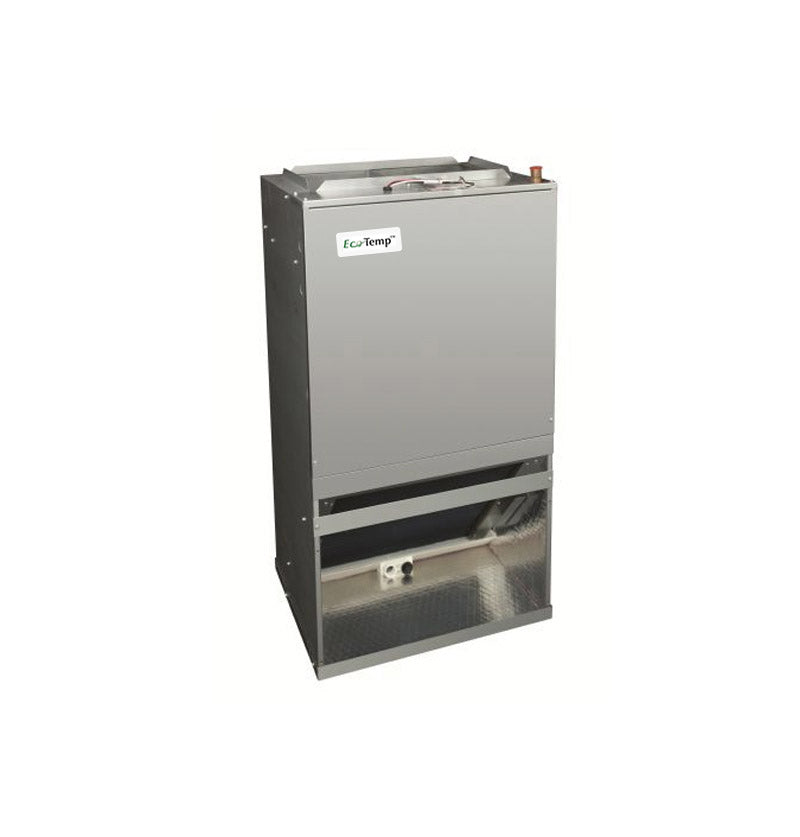

The EcoTemp Front Return Air Handler is designed for vertical applications and installation in tight spaces. It works with outdoor units to deliver high-efficiency operation and more comfort options. This high-efficiency multi-speed fan coil is designed for wall mount or flush installation in tight spaces while quietly delivering energy efficient comfort.

Standard Features:

• Upflow application only
• 208/230-1-60 supply voltage
• Cabinet exterior is galvanized sheet metal
• Cabinet air leakage rate below 1.4% when tested to ASHRAE Standard 193
• Insulated for conditioned space (not to be installed in unconditioned spaces)
• All Aluminum coils
• R-454B refrigerant, TXV standard
• Refrigerant leak detection system for safe operation
• Motor suspended on rubber grommets for quieter operation
• Fresh air intake knockouts in cabinet
• Units fits between standard stud spacings
• All service access is located in the front
• Primary and secondary drain connections exit from the bottom, access panel in bottom of cabinet
• No return-air ductwork required in specific applications
• Wall hanging brackets included with the unit
• 5-year parts limited warranty (including compressor and coil)
• 10-year parts limited warranty (including compressor and coil) with timely registration*. Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration. * Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where applicable laws dictate otherwise.
