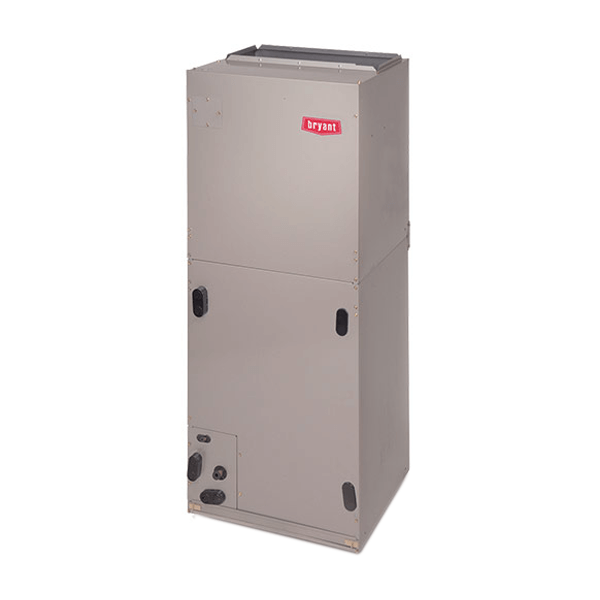

The Bryant FZ4A Air Handler has the proven technology of Bryant fan coil units with Puron refrigerant as well as vertical and horizontal applications. The design features contoured condensate pans with rugged drain connections, ensuring that little water is left in the unit at the end of the cooling duty cycle. The lack of standing condensate and corrosion free pans improves IAQ and product life, features homeowners appreciate.

Standard Features:

• Multi-tap ECM, electronic commutating motor motors all sizes
• Integrated motor controls, with 90-sec off TDR function, have replaced integrated circuit board
• Five available speed tags to meet a wide range of applications
• Large, grooved tube, louvered fin coils
• Efficient, quiet, time-tested blower housings and diffusers
• Sturdy, drainable condensate pans
• Cabinet construction features innovations designed to prevent cabinet sweating
• Tested for condensate disposal in much tougher conditions than Air Conditioning and Refrigeration Institute requirements
• Super-thick R-4.2 insulation with vapor barrier
• Pre-painted galvanized steel cabinet taupe metallic
• Cabinet design meets stringent regulations for 2% cabinet leakage rate when tested at 1.0 inches static pressure
• Installation-flexible, multipoise units
• Horizontal hanging provisions on cabinet
• No tools required to access filter
• Newly improved filter rack area filter door insulation added for improved air seal
• Factory-installed heater packages available on select models, 5- through 15kW)
• 3 through 30kW accessory heaters field installed
• Factory-supplied power plug
• Easy plug-in provisions for heater installation
• Entry options for high and low voltage wiring hook-up
• Leak-preventing sweat connections
• Puron refrigeration factory-installed Teflon-ring pistons on all FZ4ANP Fan Coils
• Thermostatic expansion valve, TXV, on all ZFANP Fan Coils
• Designed for manufactured housing applications
• Factory-installed heater packages available on select models
