Save 27%

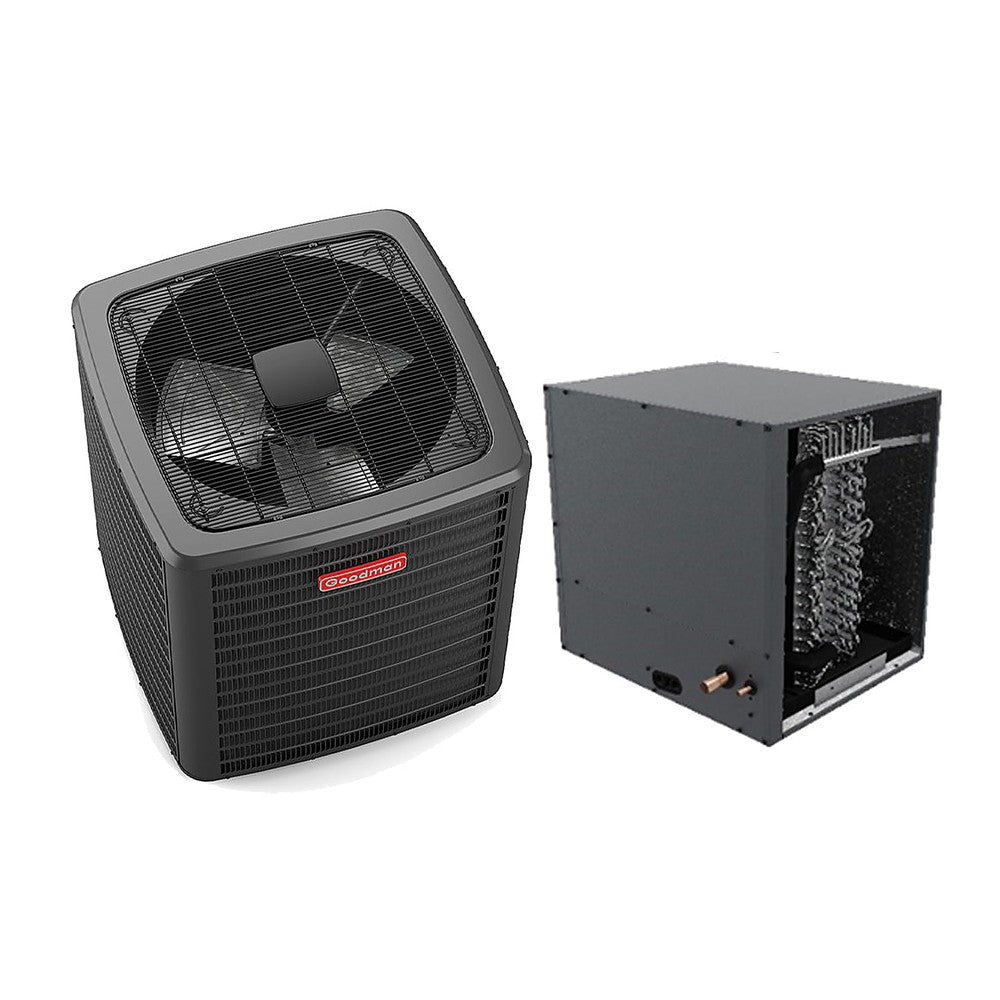

Goodman Multi-Family Series 1.5 Ton 14.3 SEER2 R-32 Air Conditioning Condenser and Horizontal Coil (14" High, 22" Wide)
Goodman Multi-Family Series 1.5 Ton 14.3 SEER2 R-32 Air Conditioning Condenser and Horizontal Coil (14" High, 22" Wide)
Model: GLXS4MA1810 - CHPTA1822A3
Regular price
$2,593.00
Sale price
$2,593.00
Customize to check lowest price
In Stock
Couldn't load pickup availability
110% Price Match Guarantee
/span>
The Goodman GLSX4M Air Conditioner Condenser is only compatible with matched R-32 refrigerant air handlers and coils.This unit will not work with R-410A equipment.
Standard Features:
- High-Efficiency Scroll Compressor
- High-pressure switch
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
The Goodman CAPF, CAUF, CHPF, CAPT and CHPT Evaporator Coils are designed for use with Goodman Gas Furnaces, Split System Air Conditioners and Heat Pumps, as well as modular, two-piece blowers. Each cased coil has a quality, galvanized-steel cabinet.
Standard Features:
- Suitable for use with R-32 refrigerants
- Rust-proof, thermoplastic drain pans feature a low water-retention design
- Check flowrater expansion device for heat pump or cooling-only applications
- Rifled copper tubing and louvered aluminum fin coils on CAPF, CAUF, and CSCF coils
- Rifled aluminum tubing and louvered aluminum fin coils on the CHPF coil
Cabinet Features:
- Foil-face insulation
- Galvanized leather-grain finish
- Architectural Gray paint finish on CAPF and CHPF cased coils
- Split-seam front for easy access
**IMPORTANT NOTE** SINGLE EVAPORATOR COILS ARE SHIPPED VIA GROUND TRANSIT SERVICES. UPON UNPACKING YOUR EQUIPMENT, YOU MAY FIND THAT SOME OF THE COIL FINS ARE SLIGHTLY BENT. BENT FINS ON YOUR EVAPORATOR OR CONDENSER COIL ARE COMPLETELY NORMAL AND HAPPENS DURING THE MANUFACTURING AND ASSEMBLY PROCESS, NOT DURING TRANSIT. BENT FINS WILL NOT IMPEDE THE FUNCTIONALITY OF YOUR EQUIPMENT AND DOES NOT CONSTITUTE EQUIPMENT "DAMAGE". CLAIMS CANNOT BE FILED FOR BENT FINS. UNLESS THERE IS VISIBLE DAMAGE TO THE EXTERNAL PACKAGING AND/OR PANELS OF THE UNIT, THESE CLAIMS CANNOT BE ACKNOWLEDGED.
| Model Number (s) | GLXS4MA1810 - CHPTA1822A3 |
| Brand | Goodman |
| Type | Gas Heat |
| Ton | 1.5 Ton |
| SEER | 14.3 |
| Coil Dimensions (W x D x H) | 22 x 21 x 14 |
| Cooling Btu | 18,000 |
| Cooling Stage(s) | 1 |
| Compressor Stage | Single |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 73 |
| Refrigerant Type | R-32 |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 27 |
| Outdoor Unit Width (Inches) | 26 |
| Outdoor Unit Depth (Inches) | 26 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 214858987 |
| UPC # | 633190169617 |
| Refrigerant Type | R-32 |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 27 |
| Outdoor Unit Width (Inches) | 26 |
| Outdoor Unit Depth (Inches) | 26 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 214858987 |
| UPC # | 633190169617 |
