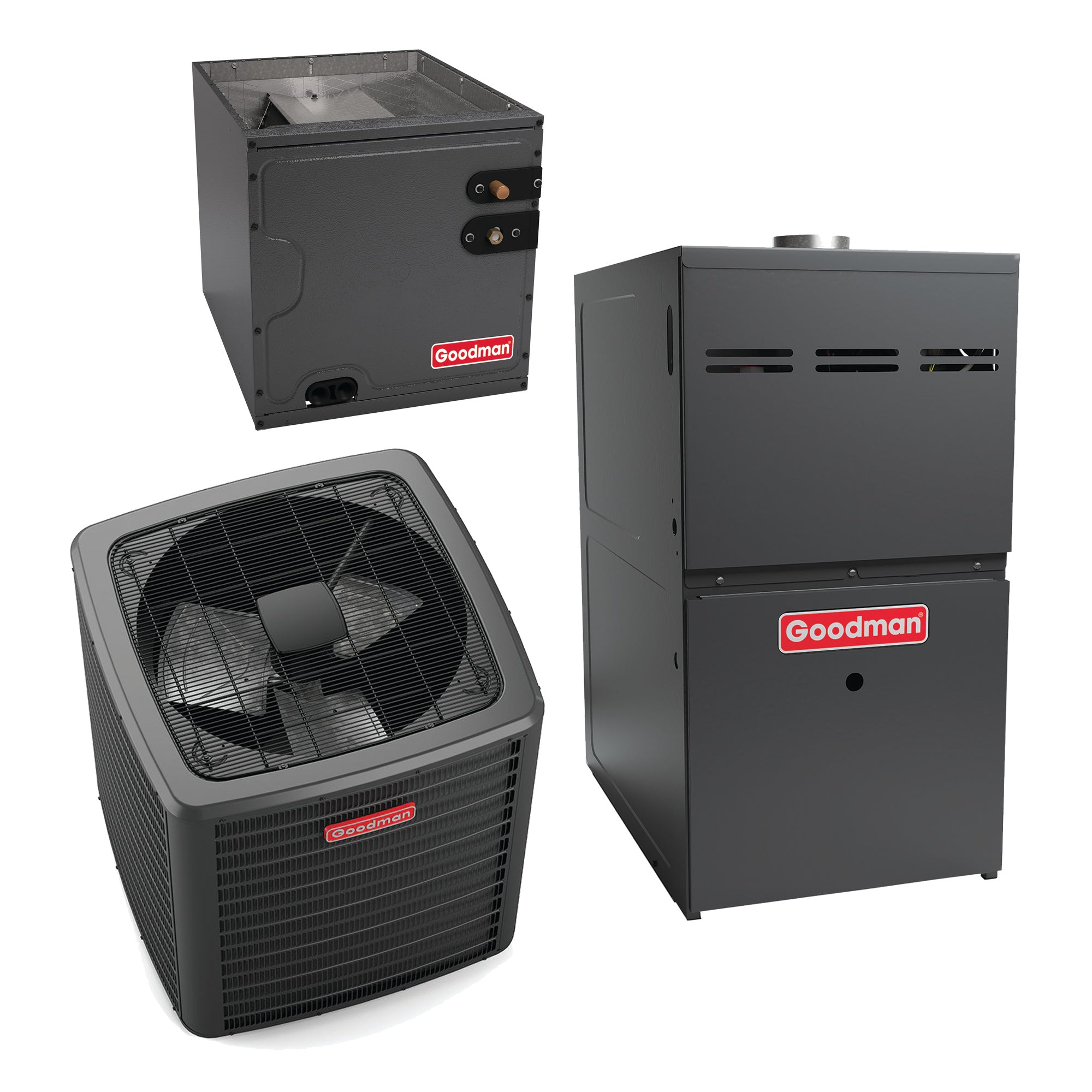

Goodman 3 Ton 17.2 SEER2 R-32 60,000 Btu 80% Afue Two-Stage Ultra Low-NOx Variable Speed Gas System (For Sale in Colorado & California AQMD's Only)
Goodman 3 Ton 17.2 SEER2 R-32 60,000 Btu 80% Afue Two-Stage Ultra Low-NOx Variable Speed Gas System (For Sale in Colorado & California AQMD's Only)
Model: GLZT7CA3610 - CAPTA4230C3 - GMVS800604BU - 0230K00044
Couldn't load pickup availability

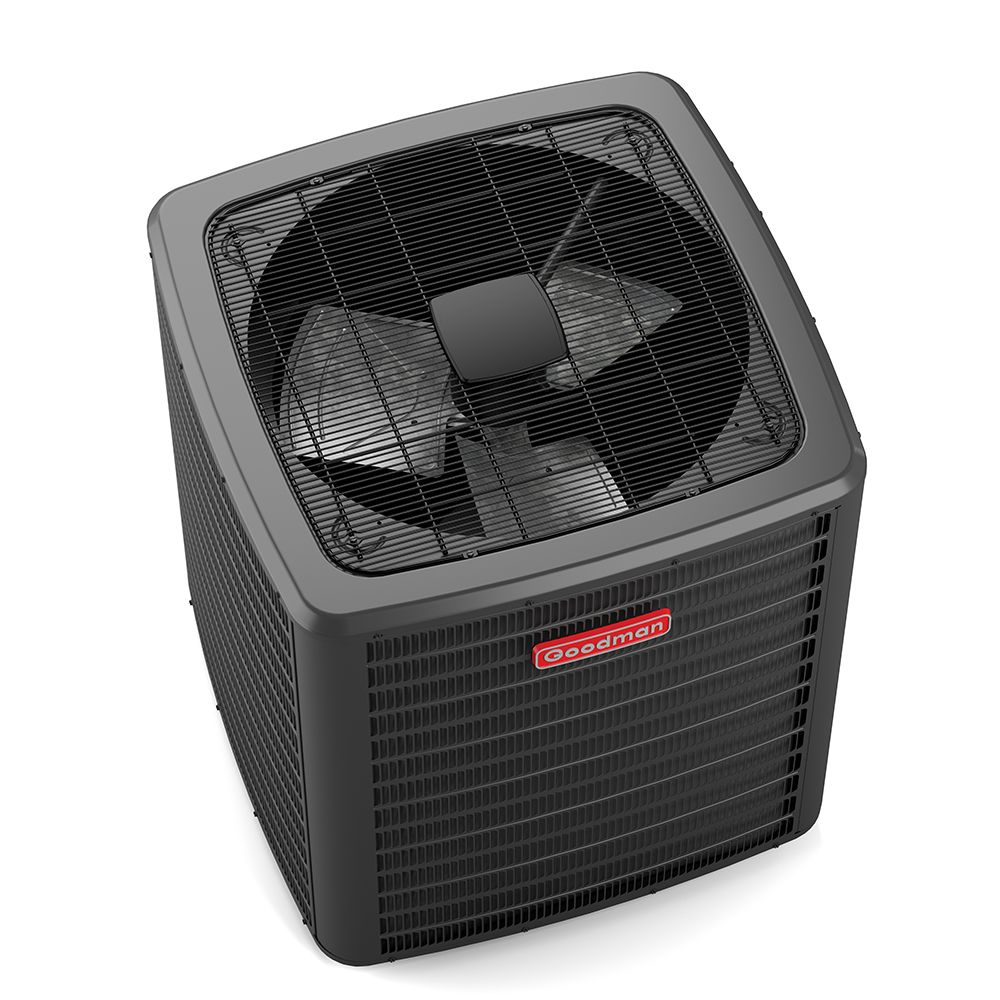

The Goodman GLZT7 High-Efficiency 2-Stage Heat Pump Condenser is available now in limited quantities!
Standard Features:
- Two-Stage Copeland® UltraTech scroll compressor
- High-density foam compressor sound blanket
- Integrated communicating ComfortBridge technology
- Commissioning and diagnostics via indoor board
- Bluetooth with the CoolCloud phone and tablet application
- Goodman GTST Connected Thermostat Compatibility
- ComfortAlert built in diagnostics
- Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
- Copper tube/enhanced aluminum fin coil -7mm on 4.0-5.0 T
- Efficient, two-speed ECM condenser fan motor
- Simple low-voltage wiring to outdoor unit in communicating mode
- Diagnostic indicator lights and storage of six fault codes
- Color-coded terminal strip for non-communicating set-up
- High- and low-pressure switches
- Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- Factory-installed coil and ambient temperature sensors
- AHRI Certified; ETL Listed
Cabinet Features:
- Grille-style sound control top design
- Custom Nickel Gray powder-paint finish
- 500-hour salt-spray tested
- Wire fan discharge grille
- Steel louver coil guard
- Single panel access to controls with space provided for field-installed accessories
- Sweat connection service valves with easy access to gauge ports
- When properly anchored, meets the 2024 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
The Goodman GLZS4B Heat Pump will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. This unit is only compatible with R-32 equipment.
Standard Features:
- Energy-efficient compressor/li>
- Enhanced aluminum fin coil with 5 mm diameter copper tubes in 1.5- to 3.5-ton
- SmartShift technology to ensure quiet reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Single-speed PSC condenser fan motor
- Fully charged for 15 ft of tubing length
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds

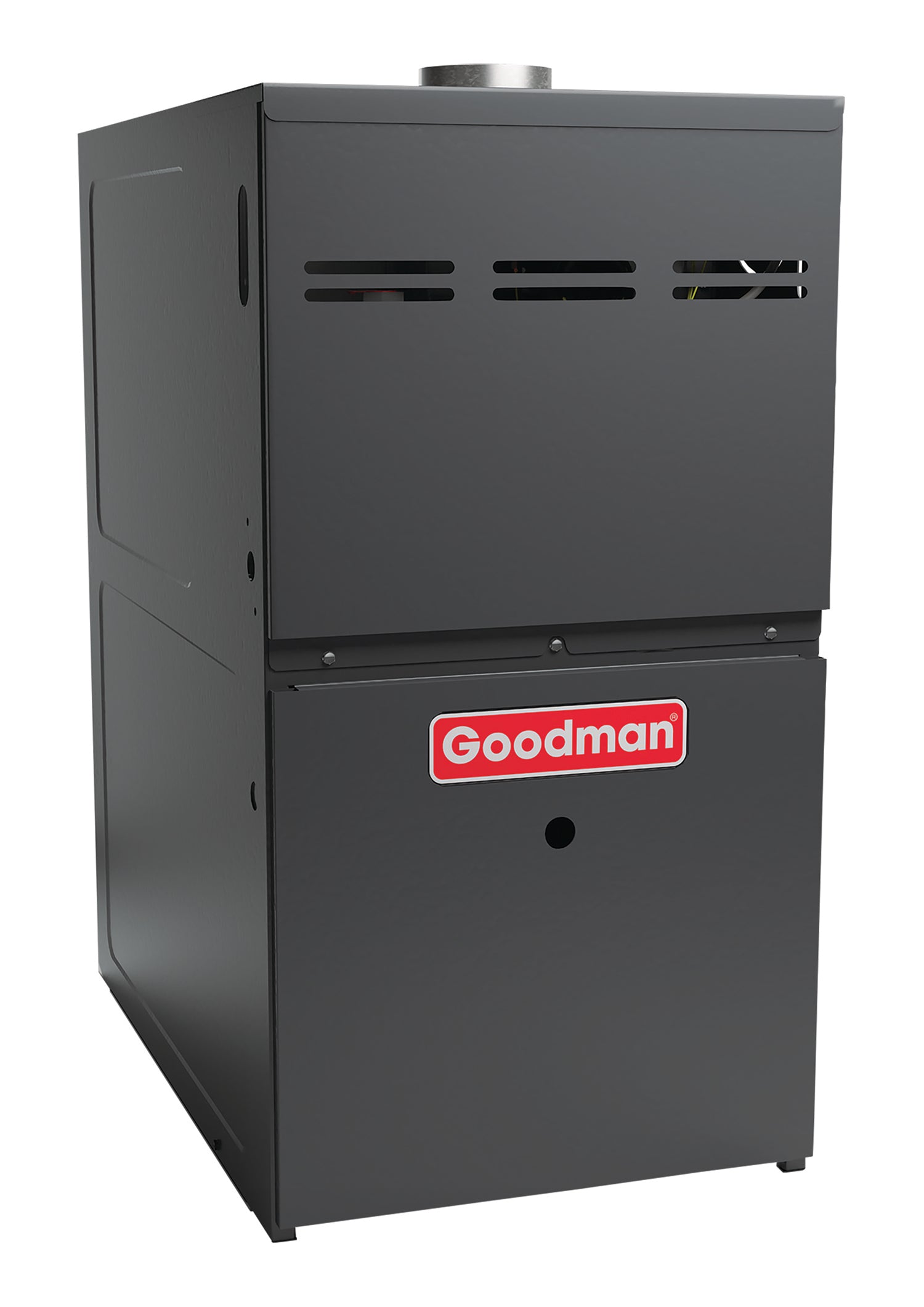

The Goodman GMVS80 Ultra Low-NOx Single Stage Gas Furnace is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman® GMVS80-U is loaded with features designed to provide outstanding performance for years to come. We use advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy-efficient warming trend that’s designed to stay for many years.
Standard Features:
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
- Heavy-duty stainless-steel dual-diameter tubular heat exchanger
- Single-stage gas valve
- Durable Hot-surface igniter
- Quiet, modulating draft inducer
- Self-diagnostic control board
- Variable-speed ECM blower motor
- Eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVUAPCD). This furnace complies with the 14 ng/J NOx emission limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905.
- EMI line filter kit must be installed. (It is intended for field installation only on “VS” model, Bluetooth® capable Ultra Low NOx Gas Furnaces. The purpose of the EMI Filter is to reduce electromagnetic interference between the furnace and other electrical devices) • AHRI Certified; ETL Listed
Cabinet Features:
- Installation: upflow, horizontal left or right
- Convenient left or right connection for gas and electrical service
- Heavy-gauge steel cabinet with durable baked-enamel finish
- Foil-faced insulated heat exchanger
| Model Number (s) | GLZT7CA3610 - CAPTA4230C3 - GMVS800604BU |
| Brand | Goodman |
| Type | Gas Heat |
| Ton | 3.0 Ton |
| SEER | 17.2 |
| Coil Dimensions (W x D x H) | 21 x 21 x 30 |
| Cooling Btu | 36,000 |
| Cooling Stage(s) | 2 |
| Compressor Stage | Two |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 71 |
| Refrigerant Type | R-32 |
| Suction Valve Size (Inches) | 7/8 |
| Liquid Valve Size (Inches) | 3/8 |
| Outdoor Unit Height (Inches) | 35 3/4 |
| Outdoor Unit Width (Inches) | 35 1/2 |
| Outdoor Unit Depth (Inches) | 35 1/2 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | Lifetime |
| AHRI Certificate # | 215674646 |
| UPC # | 633190262813 |
| Furnace Configuration | Multi-Position |
| Heating Btu | 36,000 |
| Blower | Variable Speed |
| Indoor Unit Depth (Inches) | 28 |
| Indoor Unit Width (Inches) | 17 1/2 |
| Indoor Unit Height (Inches) | 33 3/8 |
| Input Btu (Furnaces/Package) | 60,000 |
| Output Btu (Furnaces/Package) | 48,000 |
| Outdoor Unit Width (Inches) | 35 1/2 |
| Outdoor Unit Depth (Inches) | 35 1/2 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | Lifetime |
| AHRI Certificate # | 215674646 |
| UPC # | 633190262813 |
| Furnace Configuration | Multi-Position |
| Heating Btu | 36,000 |
| Blower | Variable Speed |
| Indoor Unit Depth (Inches) | 28 |
| Indoor Unit Width (Inches) | 17 1/2 |
| Indoor Unit Height (Inches) | 33 3/8 |
| Input Btu (Furnaces/Package) | 60,000 |
| Output Btu (Furnaces/Package) | 48,000 |
